Speed Control Module: Installation

Adjust the speed control module alignment bolt shoulder to mounting bracket clearance to 1.5mm.

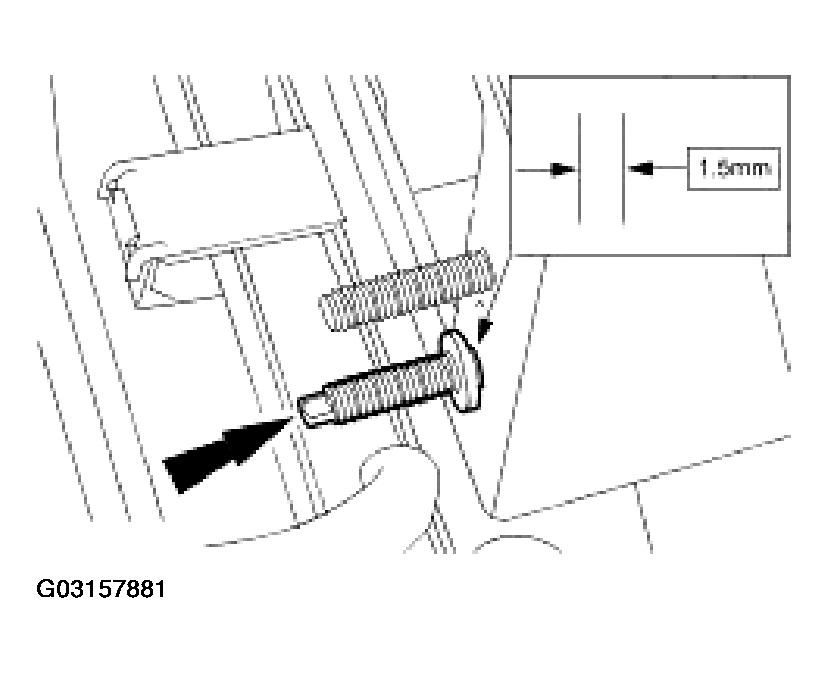

Fig 1: Adjusting Speed Control Module Alignment Bolt Shoulder
Courtesy of JAGUAR CARS, INC.
Install the speed control module.
- Tighten to 5 Nm.

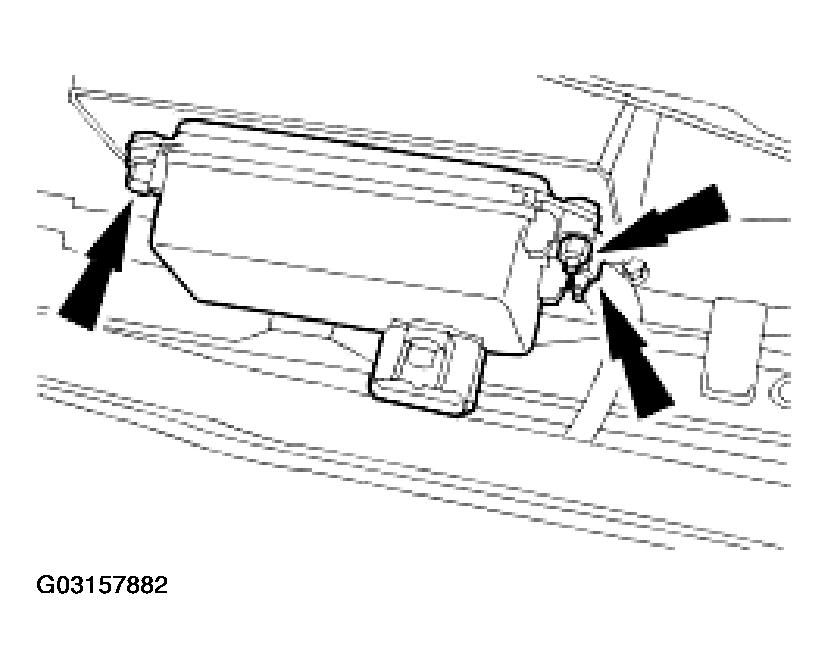

Fig 2: Installing Speed Control Module
Courtesy of JAGUAR CARS, INC.
Connect the speed control module electrical connector.

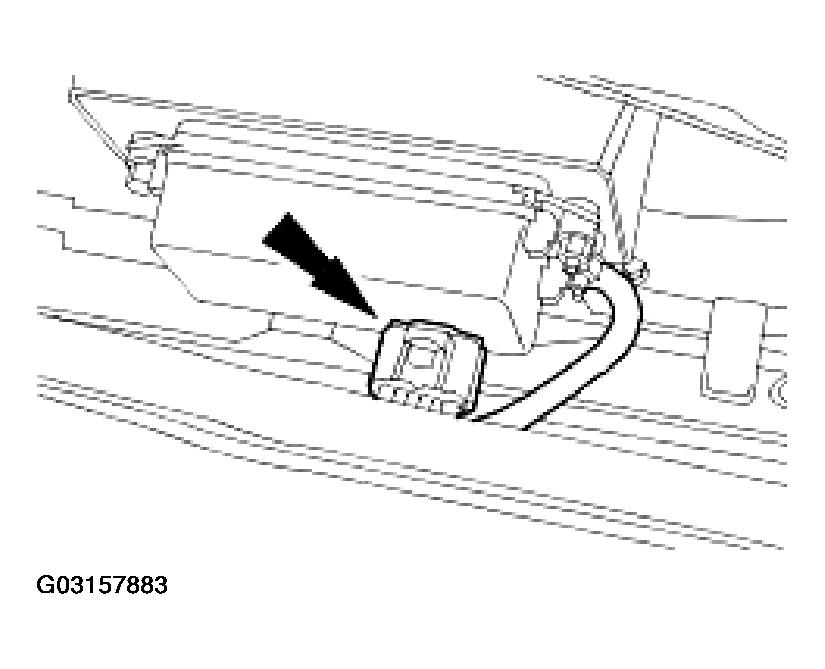

Fig 3: Connecting Speed Control Module Electrical Connector
Courtesy of JAGUAR CARS, INC.
Check and adjust the speed control module alignment. For additional information, Refer to SPEED CONTROL MODULE ALIGNMENT .
Install the hood. For additional information, refer to HOOD .
Connect the battery and fit the battery cover.
- Refer to BATTERY RECONNECTION PROCEDURE .
Initialize the system. For additional information, refer to the Jaguar approved diagnostic system.
