Navigation System Display Module: Installation

Position panel at fascia and connect harness connectors.

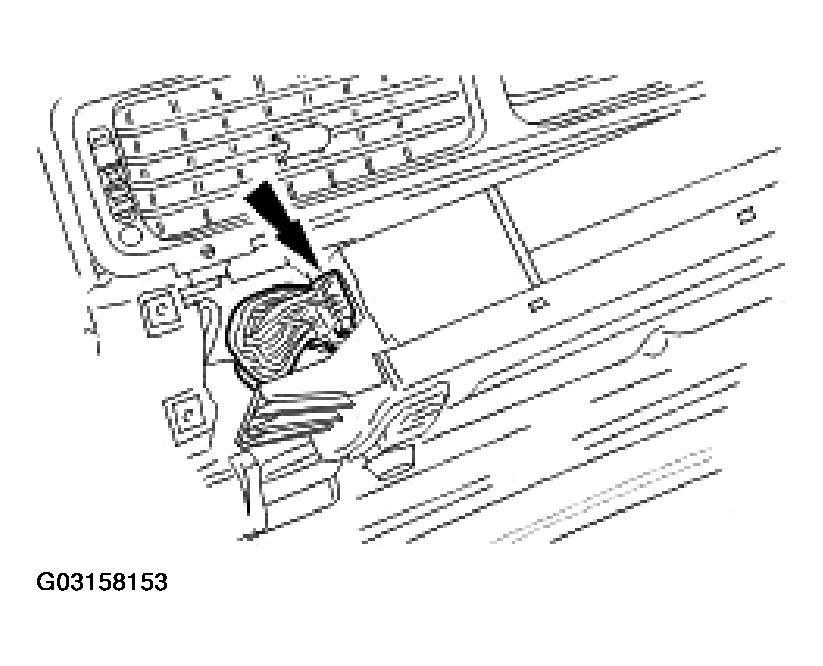

Fig 1: Connecting Harness Connectors
Courtesy of JAGUAR CARS, INC.
Fully seat panel in fascia and install screws.

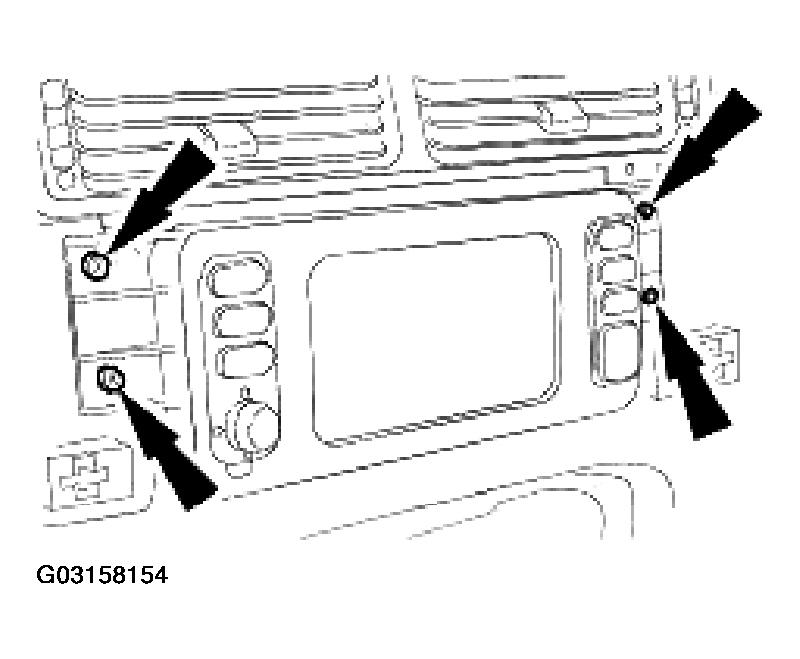

Fig 2: Installing Panel Screws
Courtesy of JAGUAR CARS, INC.
Position and fully seat veneer panel ensuring all securing clips are engaged.

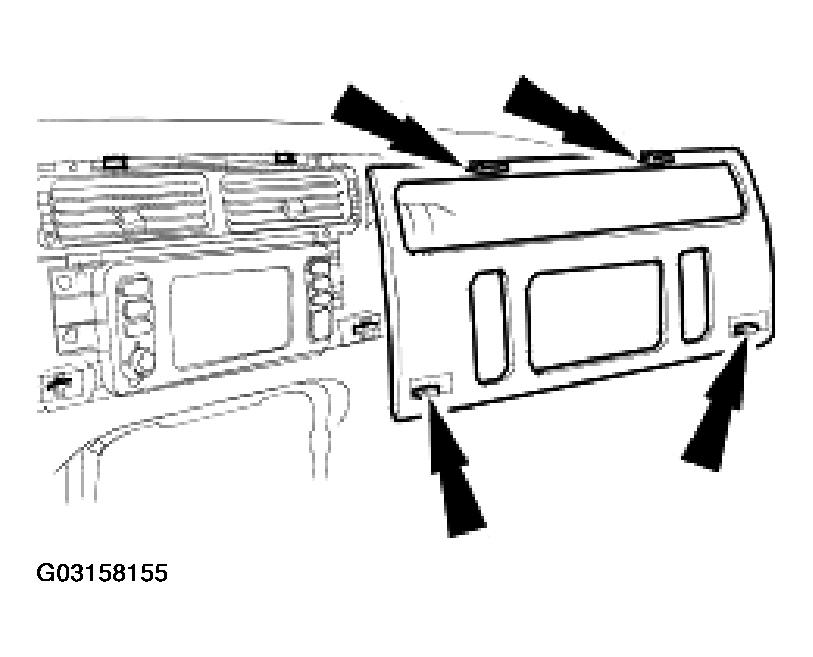

Fig 3: Identifying Veneer Panel Clips
Courtesy of JAGUAR CARS, INC.
Remove protective tape from adjacent veneers.
Connect the battery and fit the battery cover.
- Refer to BATTERY RECONNECTION PROCEDURE .
