Steering Column Control Switch: Removal

Power the driver's seat to the lowest and most rearward position.

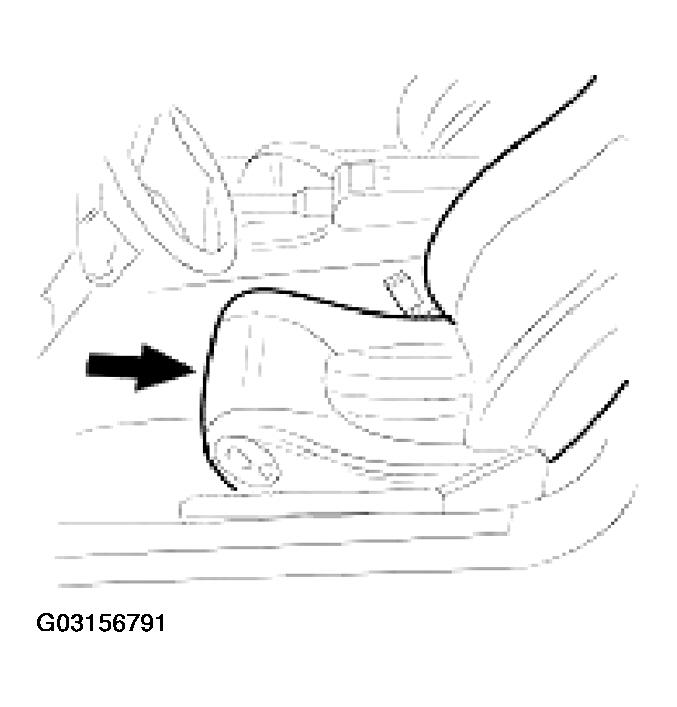

Fig 1: Sliding Driver'S Seat To Lowest And Most Rearward Position
Courtesy of JAGUAR CARS, INC.
Remove the steering column lower cowl; refer to STEERING COLUMN LOWER SHROUD .
Remove the column adjustment switch.
- Disconnect the rheostat multiplug (1).
- Disconnect the column switch harness multiplug (2).
- Remove the cowl and switch assembly (3).
- Release the column switch retaining tangs and withdraw the switch (4).

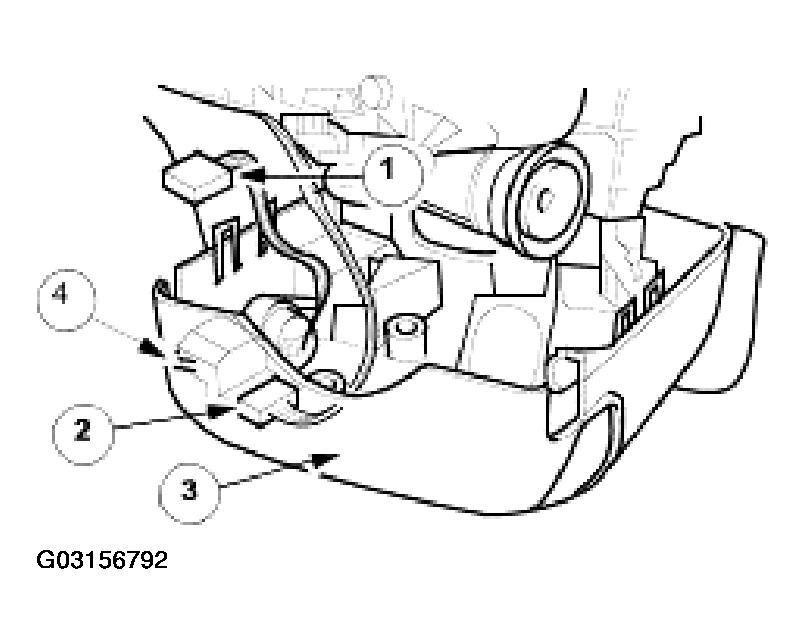

Fig 2: Removing Column Adjustment Switch
Courtesy of JAGUAR CARS, INC.
