Rear Power Distribution Box

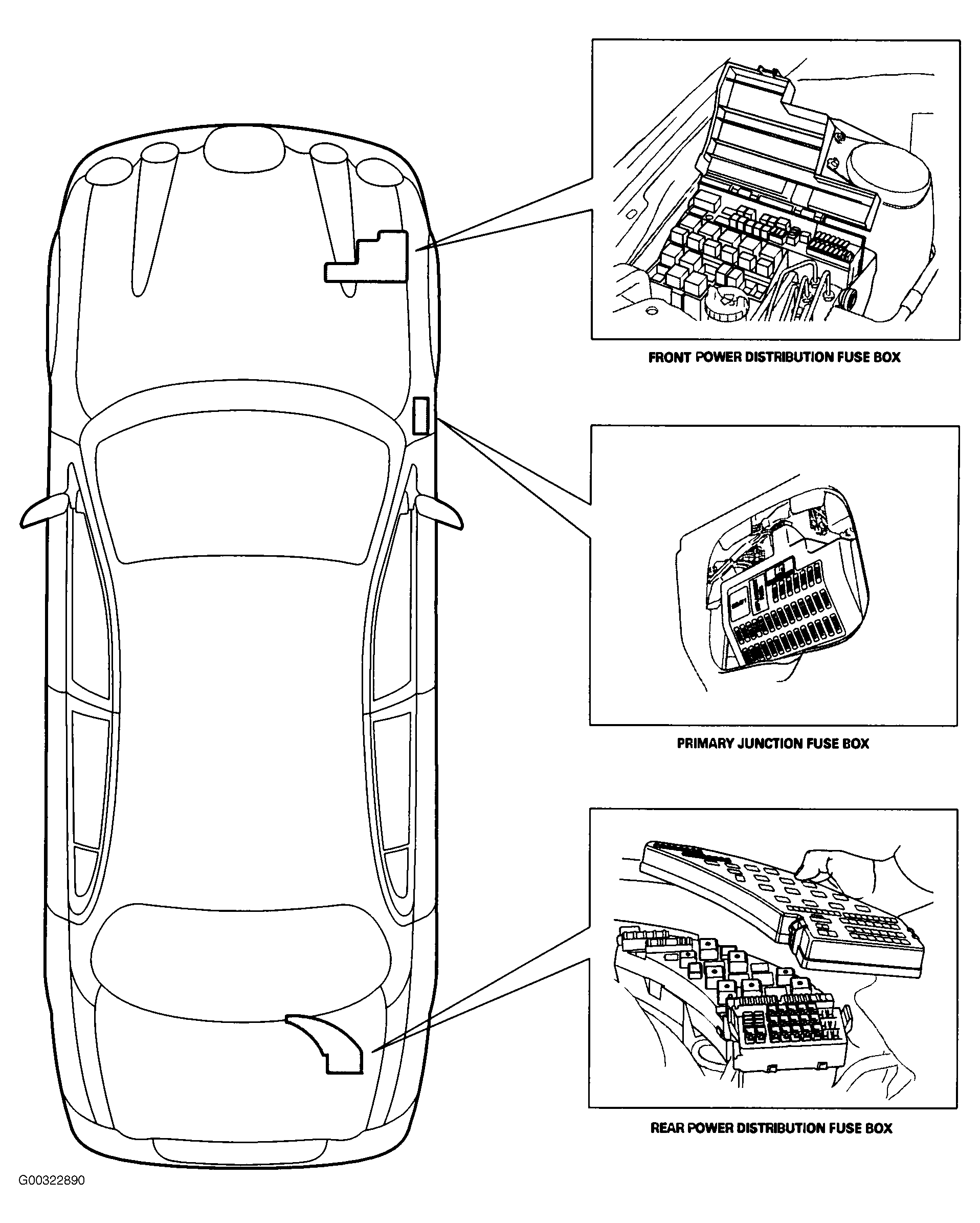

Rear power distribution box is located to the right of the spare tire. See Figure . For rear power distribution fuse box fuse and relay identification, see Fig 1 -Fig 3 .

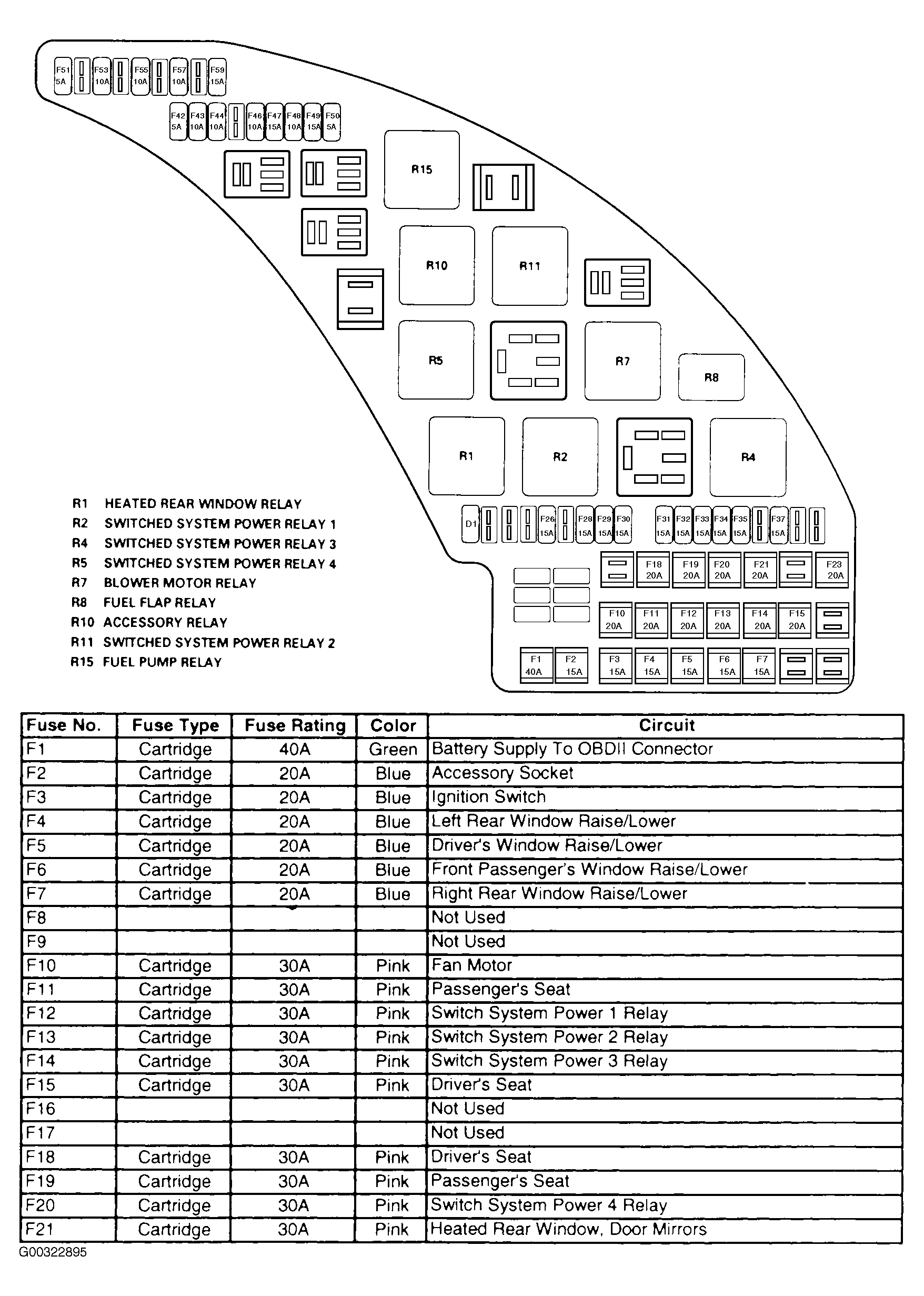

Fig 1: Identifying Fuses & Relays - Rear Power Distribution Fuse Box (Fuses No. 1-21)
G00322895Courtesy of JAGUAR CARS, INC.

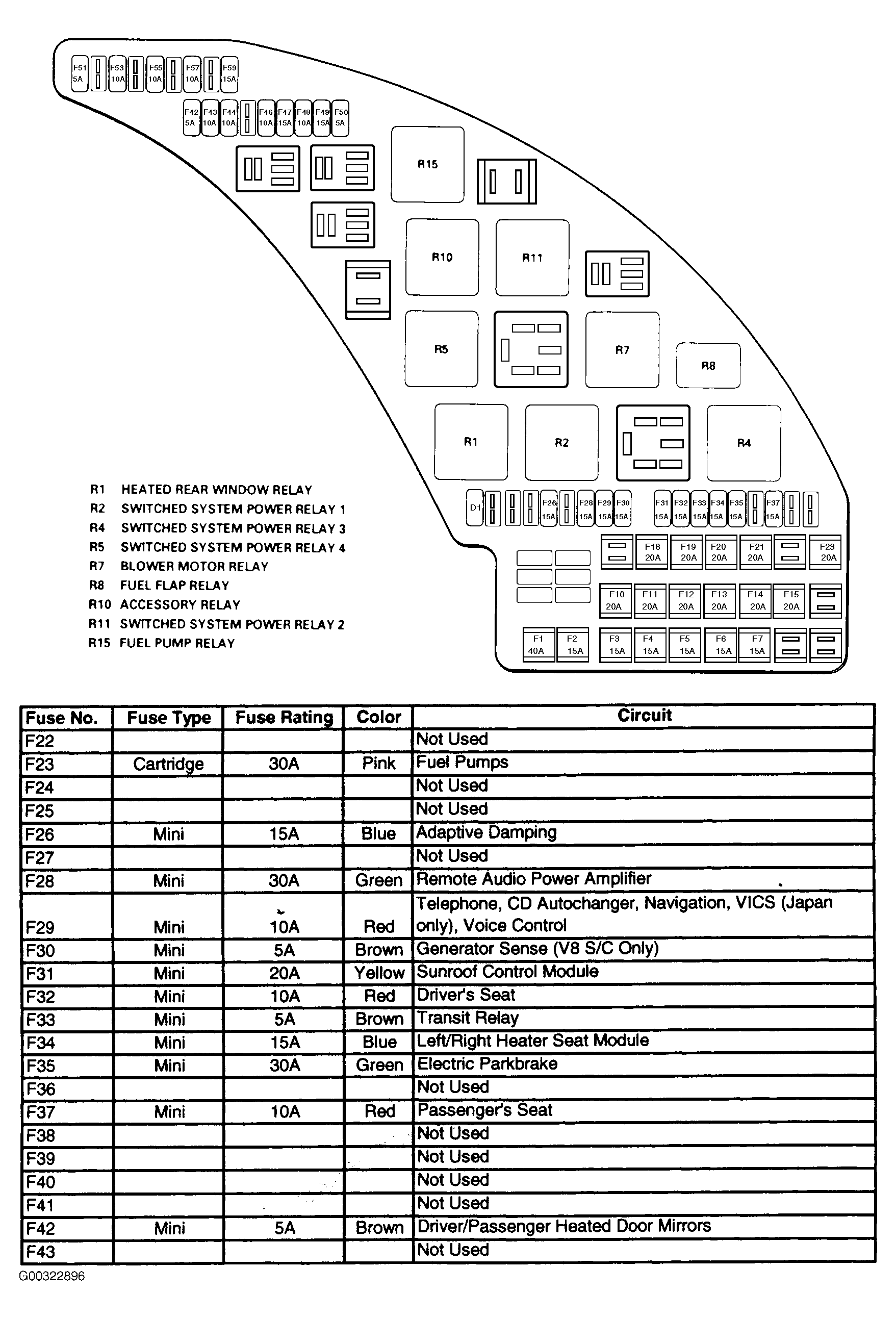

Fig 2: Identifying Fuses & Relays - Rear Power Distribution Fuse Box (Fuses No. 22-43)
G00322896Courtesy of JAGUAR CARS, INC.

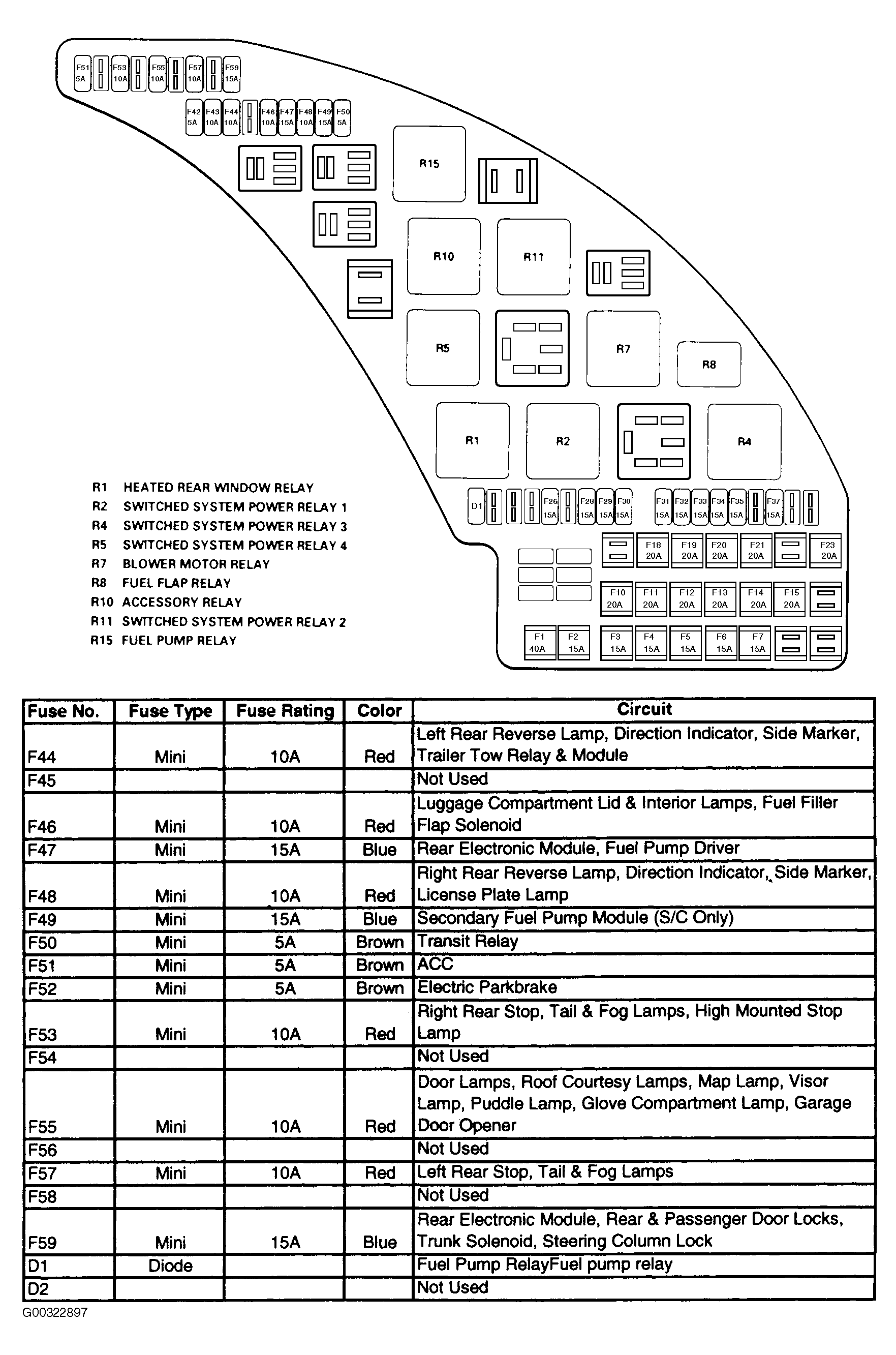

Fig 3: Identifying Fuses & Relays - Rear Power Distribution Fuse Box (Fuses No. 44-59; Diodes D1 & D2)
G00322897Courtesy of JAGUAR CARS, INC.
