Air Conditioning Control Module (003) Connector End View
Air Conditioning Control Module (003) Connector End View

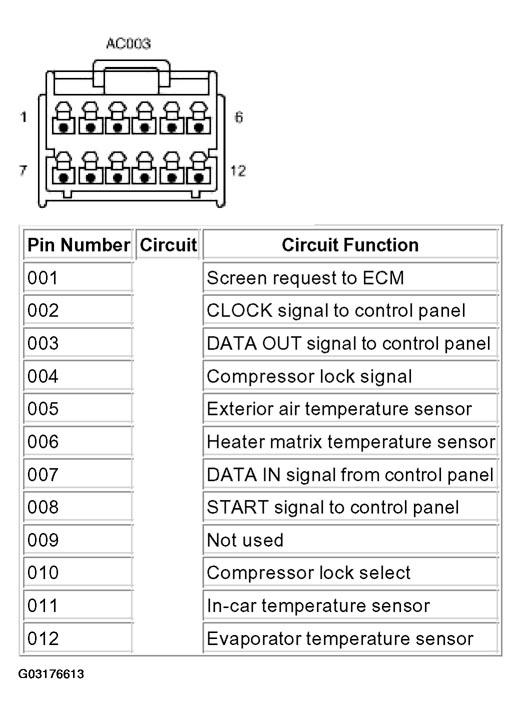

Fig 1: Air Conditioning Control Module (003) Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
