Remote Climate Control Module - LHD: Removal

Position the driver's seat fully rearward
Glove box; refer to GLOVE COMPARTMENT .
Remove the duct - passenger footwell
- Remove the nut (1) duct to blower

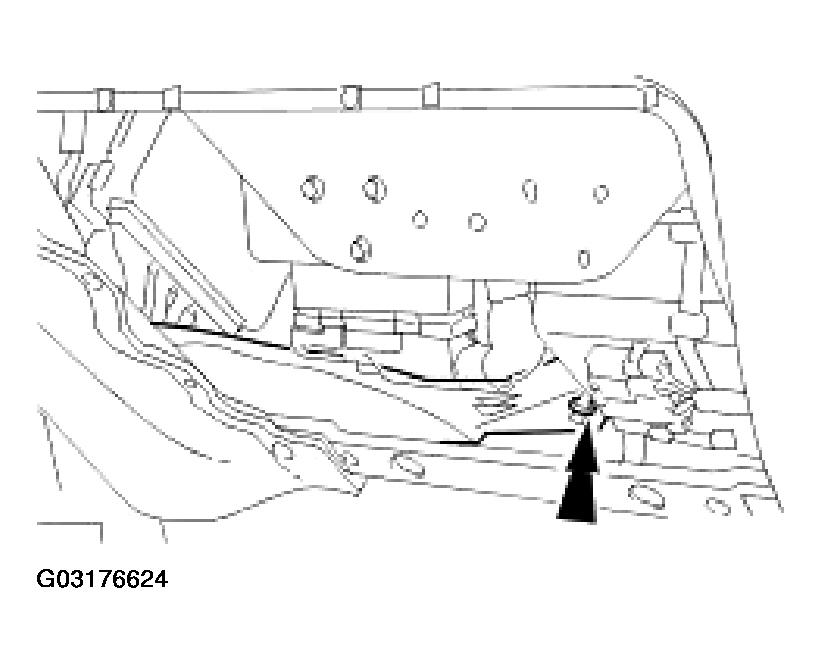

  Fig 1: Removing Duct - Passenger Footwell
  Courtesy of JAGUAR CARS, INC.
Disconnect the BPM multiplug
- Slacken the bolt (1), noting that it is captive in the multiplug
- Disconnect the multiplug

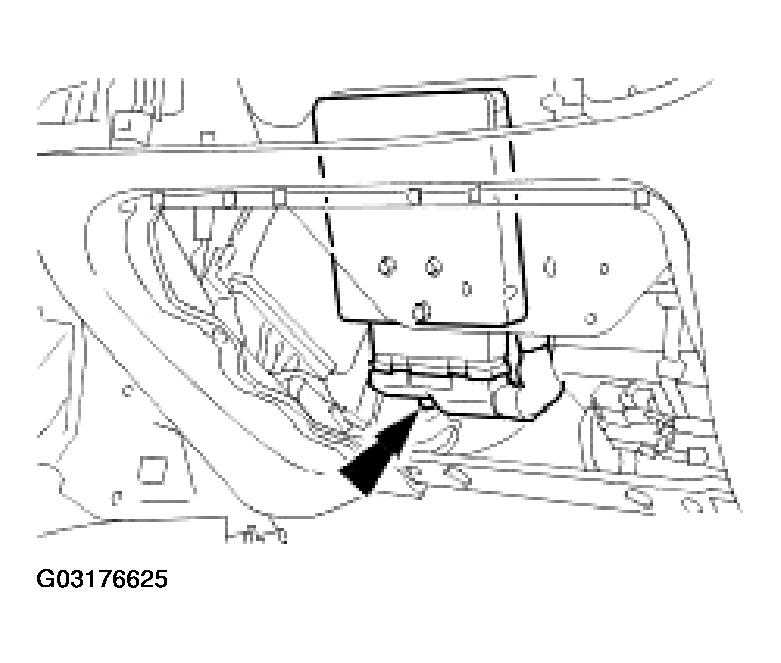

  Fig 2: Disconnecting BPM Multiplug
  Courtesy of JAGUAR CARS, INC.
Remove the BPM
- Remove the fixings (3), BPM to fascia reinforcement
- Remove the BPM

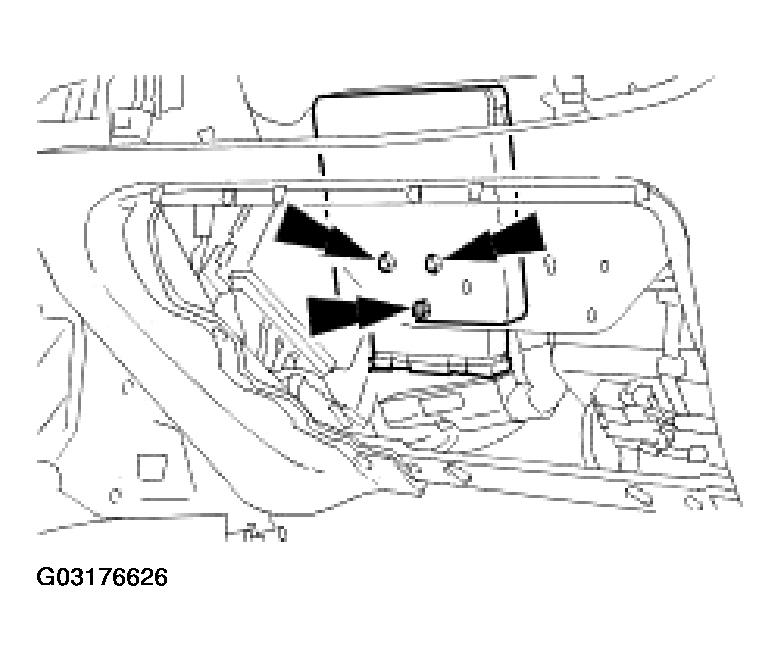

  Fig 3: Removing The BPM
  Courtesy of JAGUAR CARS, INC.
Slacken the A/CCM upper fixing using a 'Snap-On' SDP 11 stubby screwdriver, or similar

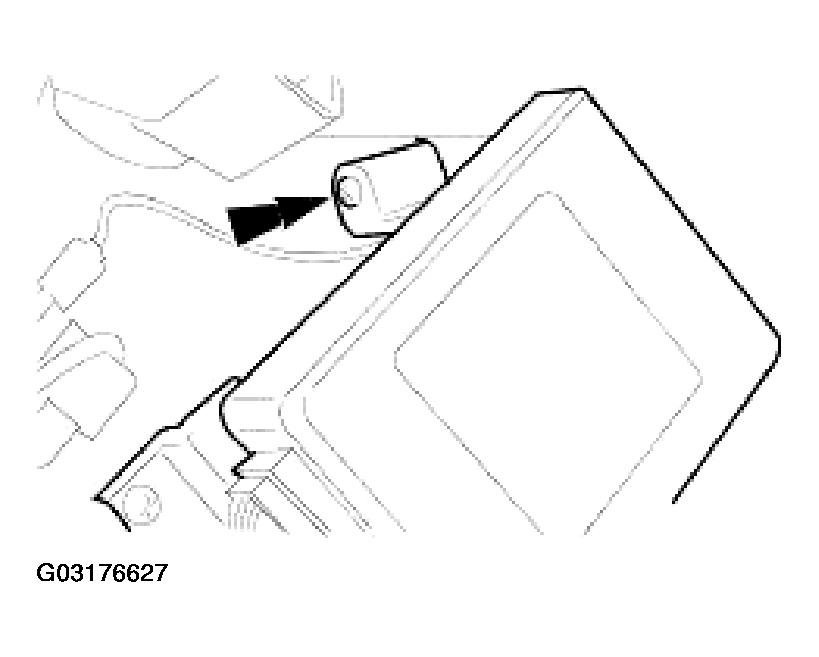

Fig 4: Slackening A/CCM Upper Fixing
Courtesy of JAGUAR CARS, INC.
Remove the A/CCM
- Remove the lower fixings (2), A/CCM to heater / cooler case. (1)
- Reposition the A/CCM to disconnect (4) multiplugs. (2)

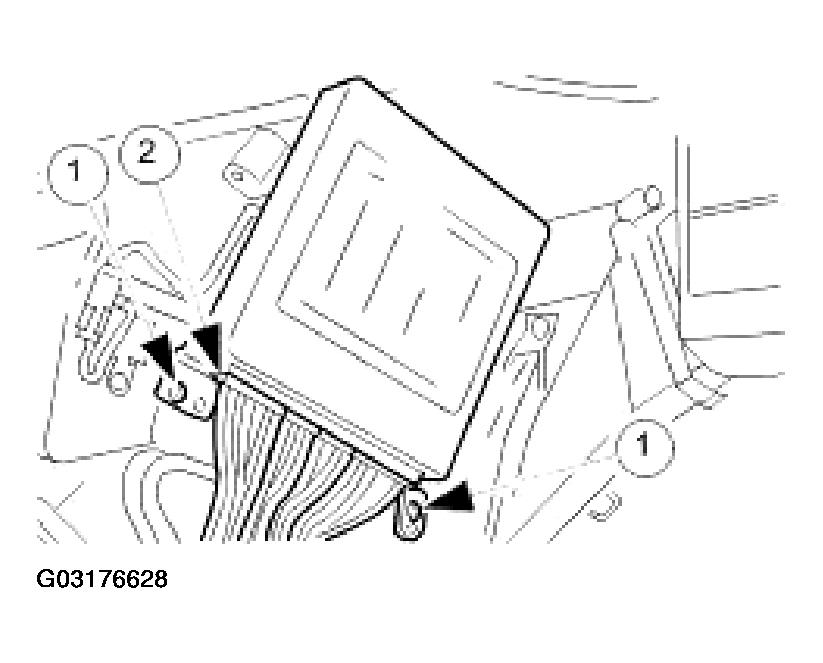

  Fig 5: Removing A/CCM
