Remote Climate Control Module - RHD: Removal

Position the driver's seat fully rearward
Position the steering column DOWN and fully EXTENDED
Disconnect the battery ground lead
Lower steering column cowl; refer to STEERING COLUMN LOWER SHROUD .
Upper steering column cowl; refer to STEERING COLUMN UPPER SHROUD .
Knee bolster, driver's side; refer to INSTRUMENT PANEL LOWER TRIM PANEL .
Position the steering in the 'straight ahead'

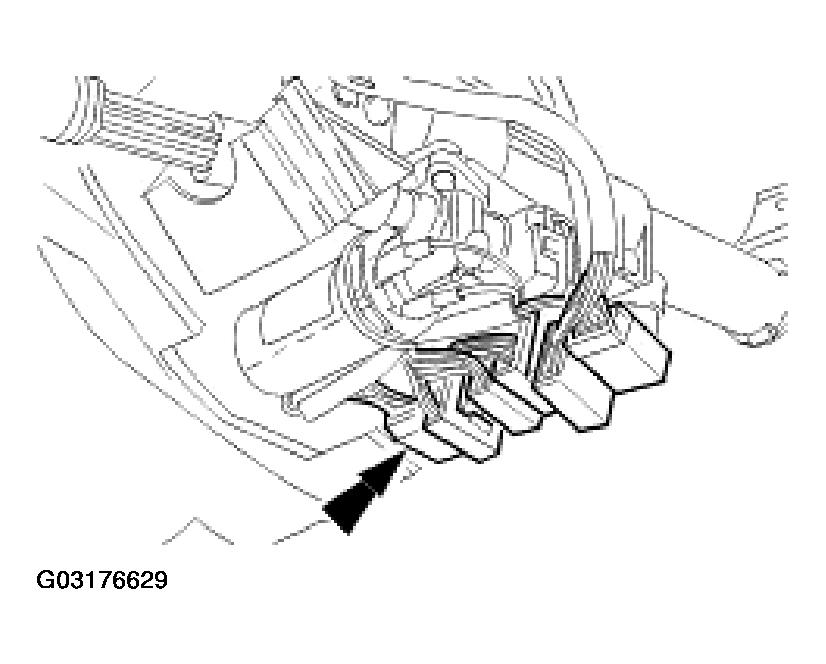

Disconnect ALL (6) multiplugs attached to the upper column bracket

Fig 1: Disconnecting All Multiplugs Attached To Upper Column Bracket
Courtesy of JAGUAR CARS, INC.

WARNING: OBSERVE THE RELATED SAFETY PROCEDURES, SEE AIR BAG RESTRAINT SYSTEMS .

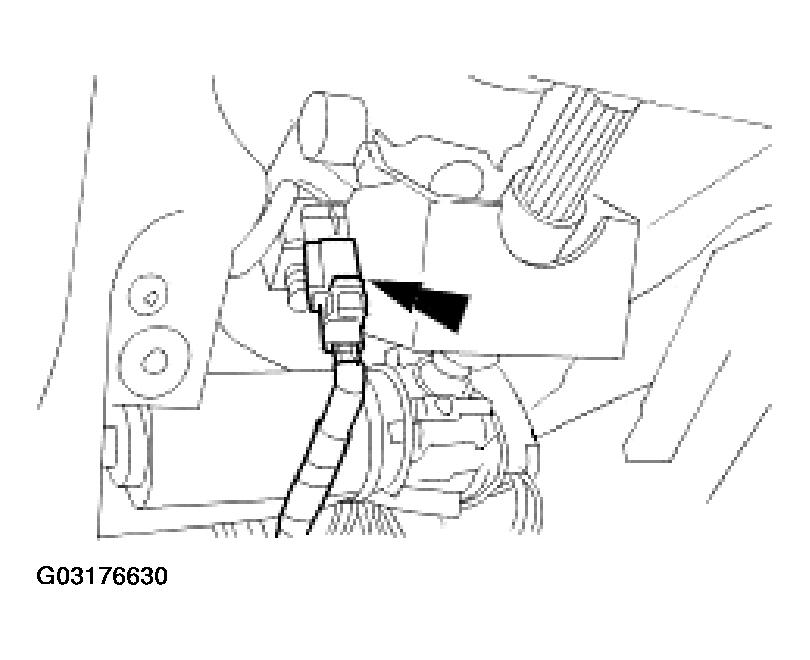

Fig 2: Disconnecting Airbag Multiplug

Courtesy of JAGUAR CARS, INC.

Disconnect the airbag multiplug

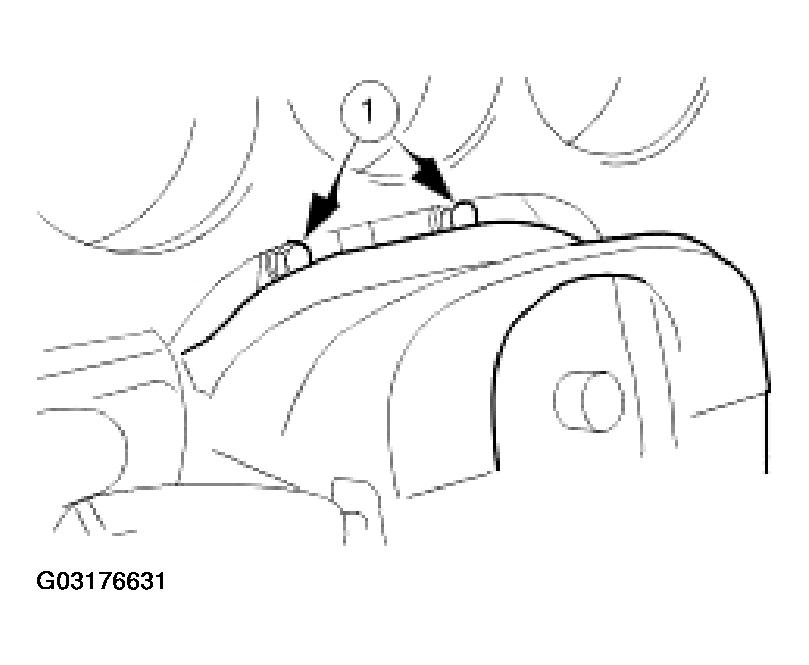

Detach the steering column - upper
- Remove the bolts (2) upper mounting bracket. (1)

  Fig 3: Detaching Steering Column - Upper Bracket
  Courtesy of JAGUAR CARS, INC.

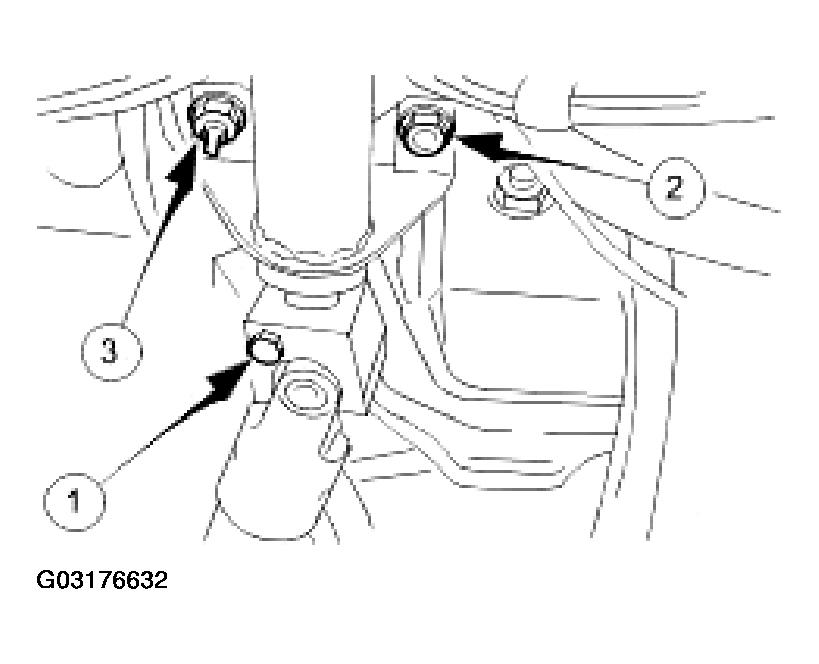

Detach the steering column - upper
- Remove the pinch bolt (1) intermediate to upper column. (1)
- Remove the bolt (1) lower fixing. (2)
- Remove the nut (1) lower fixing. (3)
- Remove the column assembly from the vehicle

  Fig 4: Detaching Steering Column - Upper
  Courtesy of JAGUAR CARS, INC.

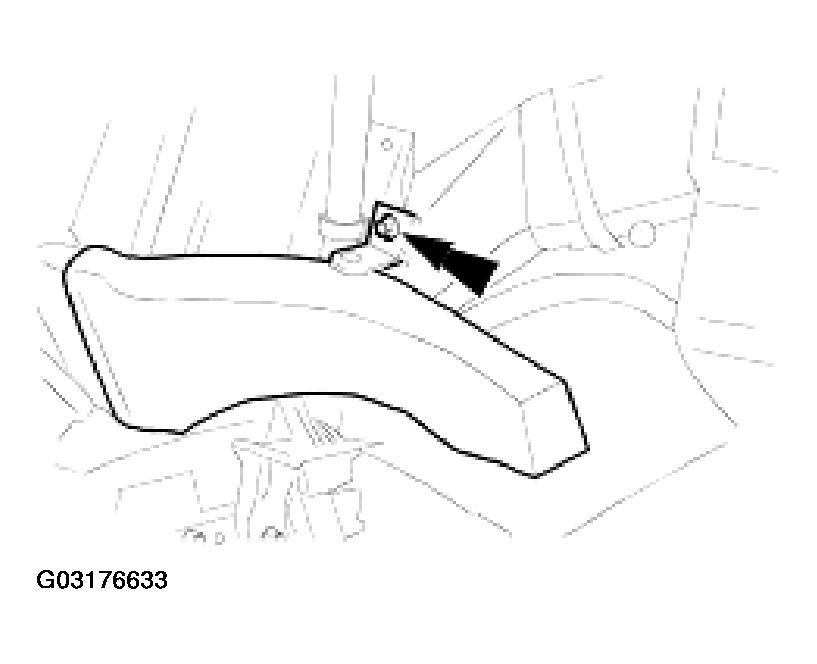

Remove the duct-driver footwell
- Remove screw (1)

  Fig 5: Removing Duct-Driver Footwell
  Courtesy of JAGUAR CARS, INC.

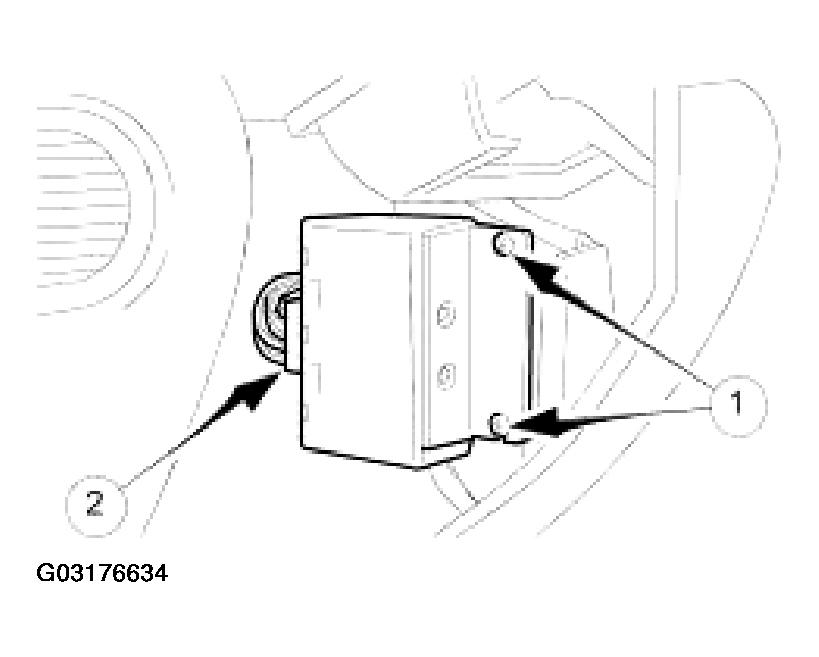

Remove the key transponder module
- Remove the screws (2) module to fascia bracket. (1)
- Disconnect the multiplug. (2)
- Reposition the transponder to gain access

  Fig 6: Removing Key Transponder Module
  Courtesy of JAGUAR CARS, INC.

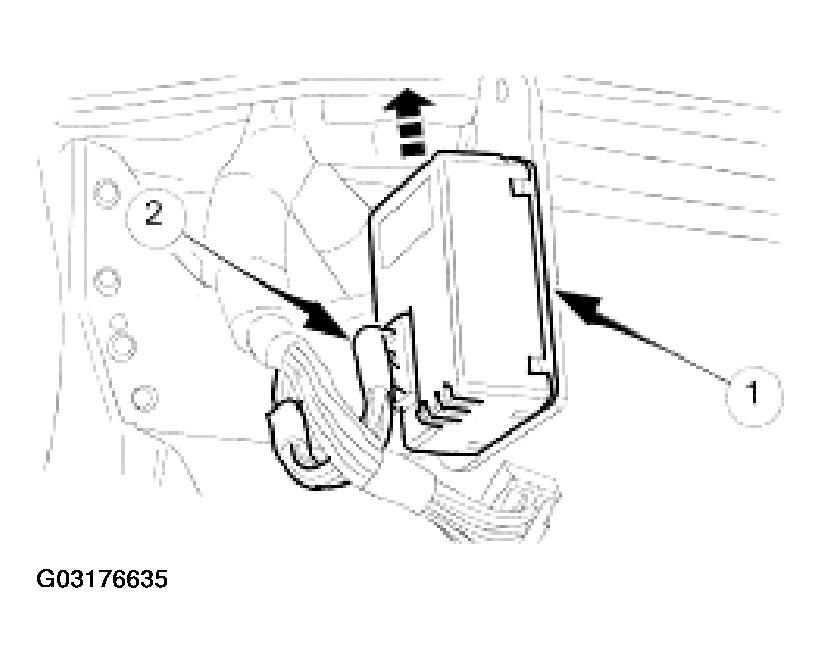

Remove the illumination module
- Release the module from its location. (1)
- Disconnect the multiplug. (2)

  Fig 7: Removing Illumination Module
  Courtesy of JAGUAR CARS, INC.

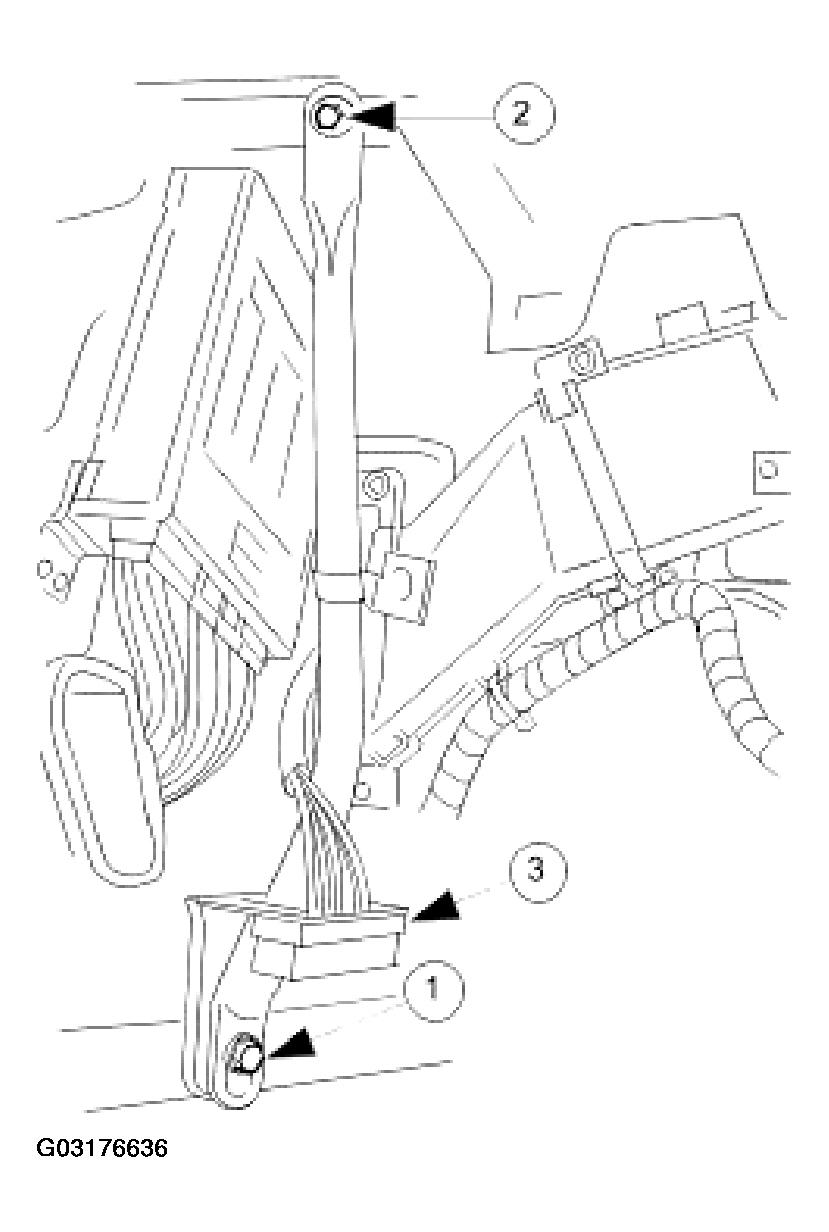

Remove the plenum brace
- Remove the bolt (1) tunnel fixing. (1)
- Remove the bolt (1) upper fixing. (2)
- Slide the diagnostic socket off the brace. (3)

  Fig 8: Removing Plenum Brace
  Courtesy of JAGUAR CARS, INC.

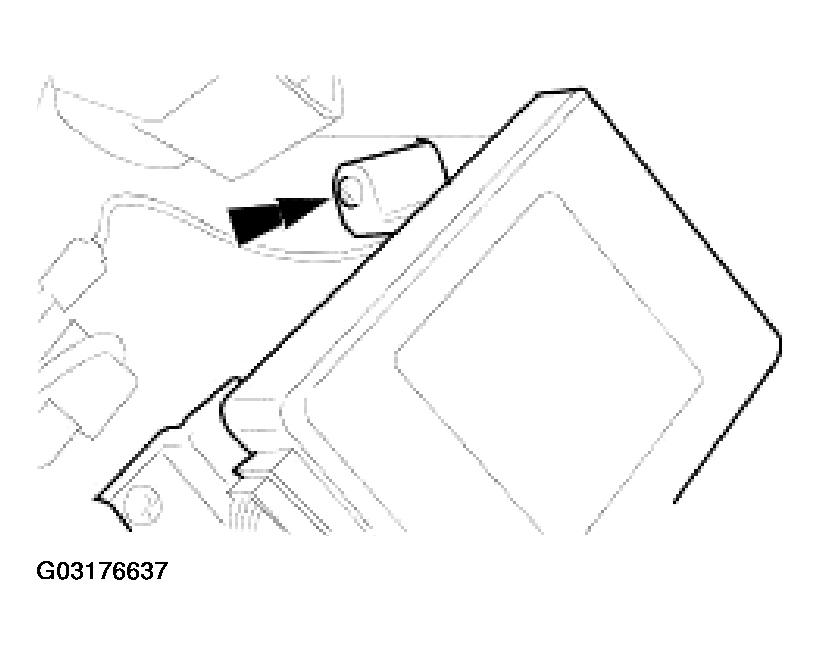

Slacken the A/CCM upper fixing using a 'Snap-On' SDP 11 stubby screwdriver, or similar

Fig 9: Slackening A/CCM Upper Fixing
Courtesy of JAGUAR CARS, INC.

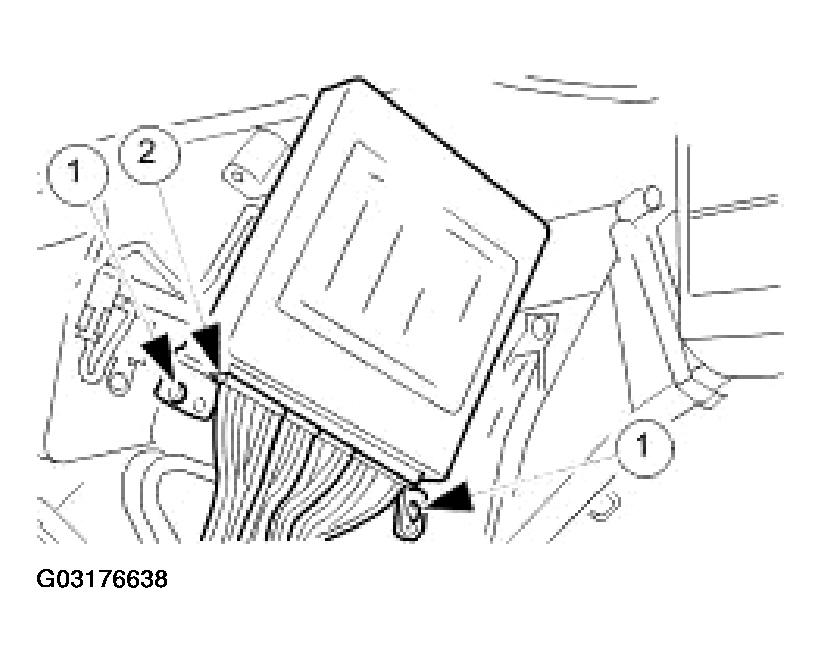

Remove the A/CCM
- Remove the lower fixings (2), A/CCM to heater / cooler case. (1)
- Reposition the A/CCM to disconnect (4) multiplugs. (2)

  Fig 10: Removing A/CCM
  Courtesy of JAGUAR CARS, INC.
