Transmission Unit Gear Selector

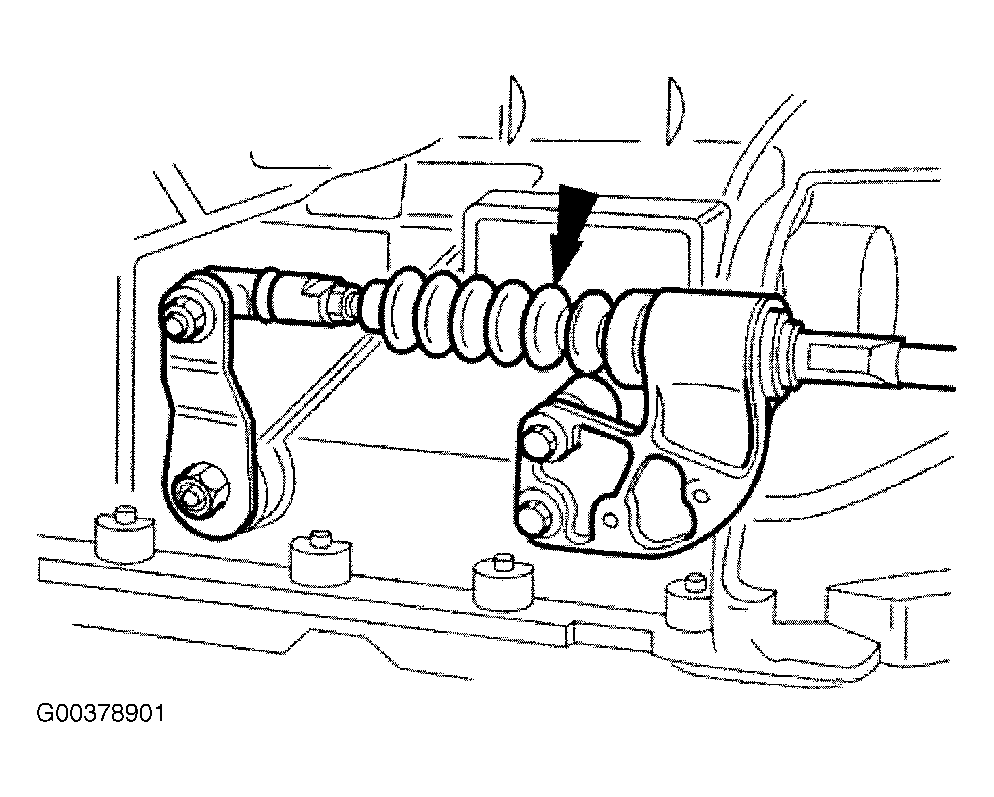

Fig 1: Identifying Transmission Gear Selector

Courtesy of JAGUAR CARS, INC.

The gear selector at the transmission unit:

• Is connected to the drivers selector module by a Bowden cable.
• Operates the manual selector valve, which is part of the electro-hydraulic control unit.
• Operates the rotary switch, which is connected to the transmission control module.
