Selector Lever Indicator Disc: Removal

  1. Remove the battery cover and disconnect battery ground cable.
  2. Remove the selector indicator assembly. See SELECTOR LEVER INDICATOR ASSEMBLY .
  3. Remove the selector lever indicator disc.
    • Remove the disc retaining screw.

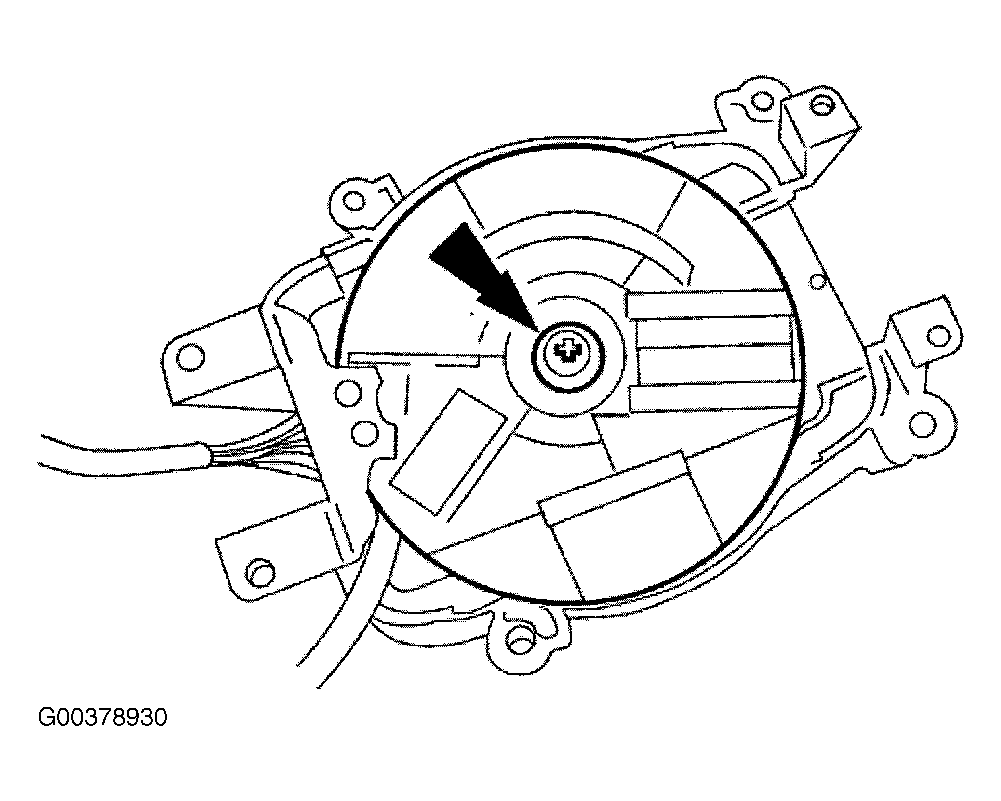

    Fig 1: Removing & Installing Selector Lever Indicator Disc
    G00378930Courtesy of JAGUAR CARS, INC.
