Jaguar
›
2003
›
XJ8 Base
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Servicing
›
Descriptions & Operation
›
Control Systems
›
Connector Pins Identification
›
Transmission Connector Pin Identity Chart For EM046
Transmission Connector Pin Identity Chart For EM046

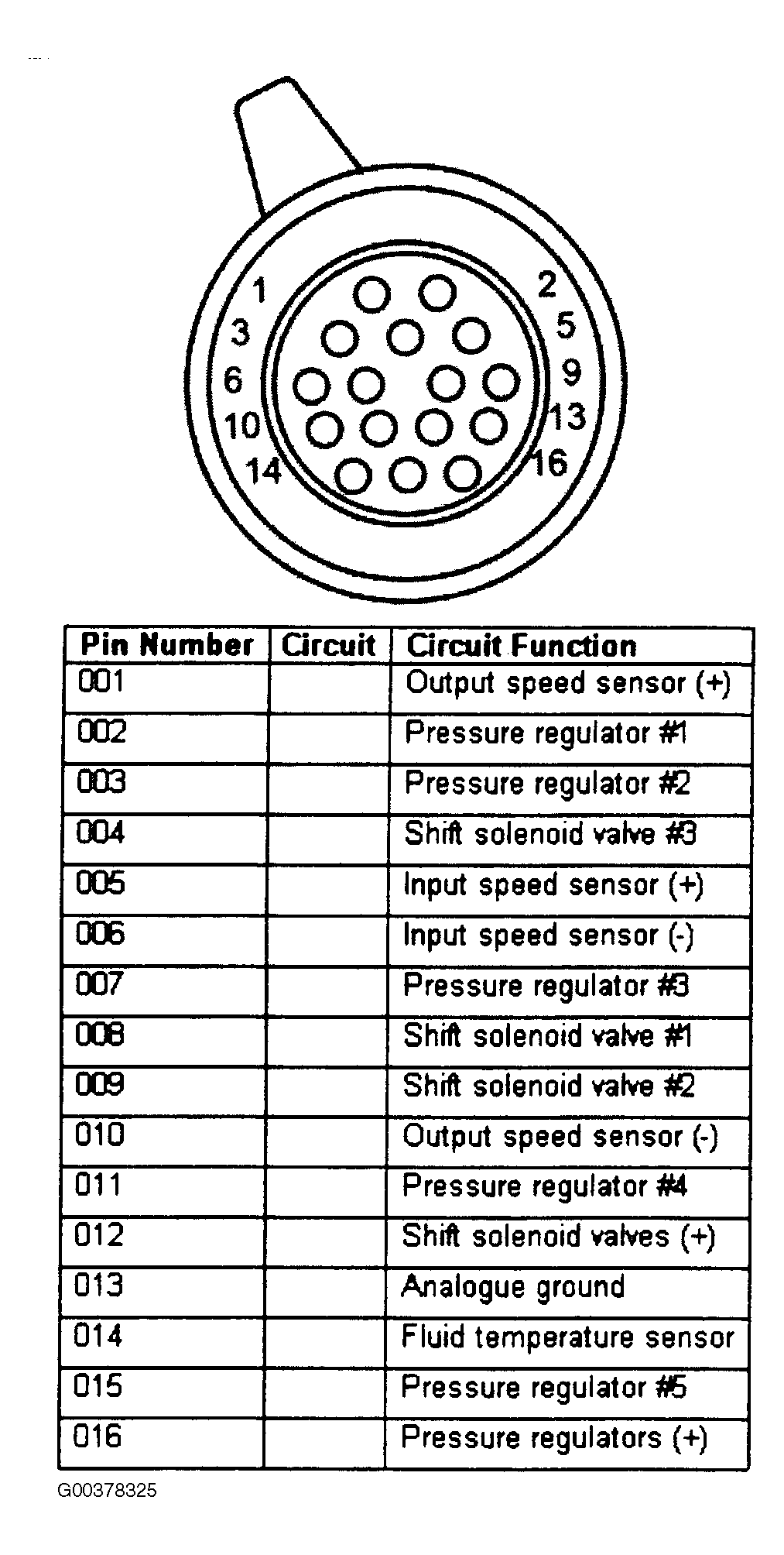

Fig 1: Identifying Transmission Connector Terminals
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
