Transmission Rotary Switch Connector Pin Identity Chart For EM047
Transmission Rotary Switch Connector Pin Identity Chart For EM047

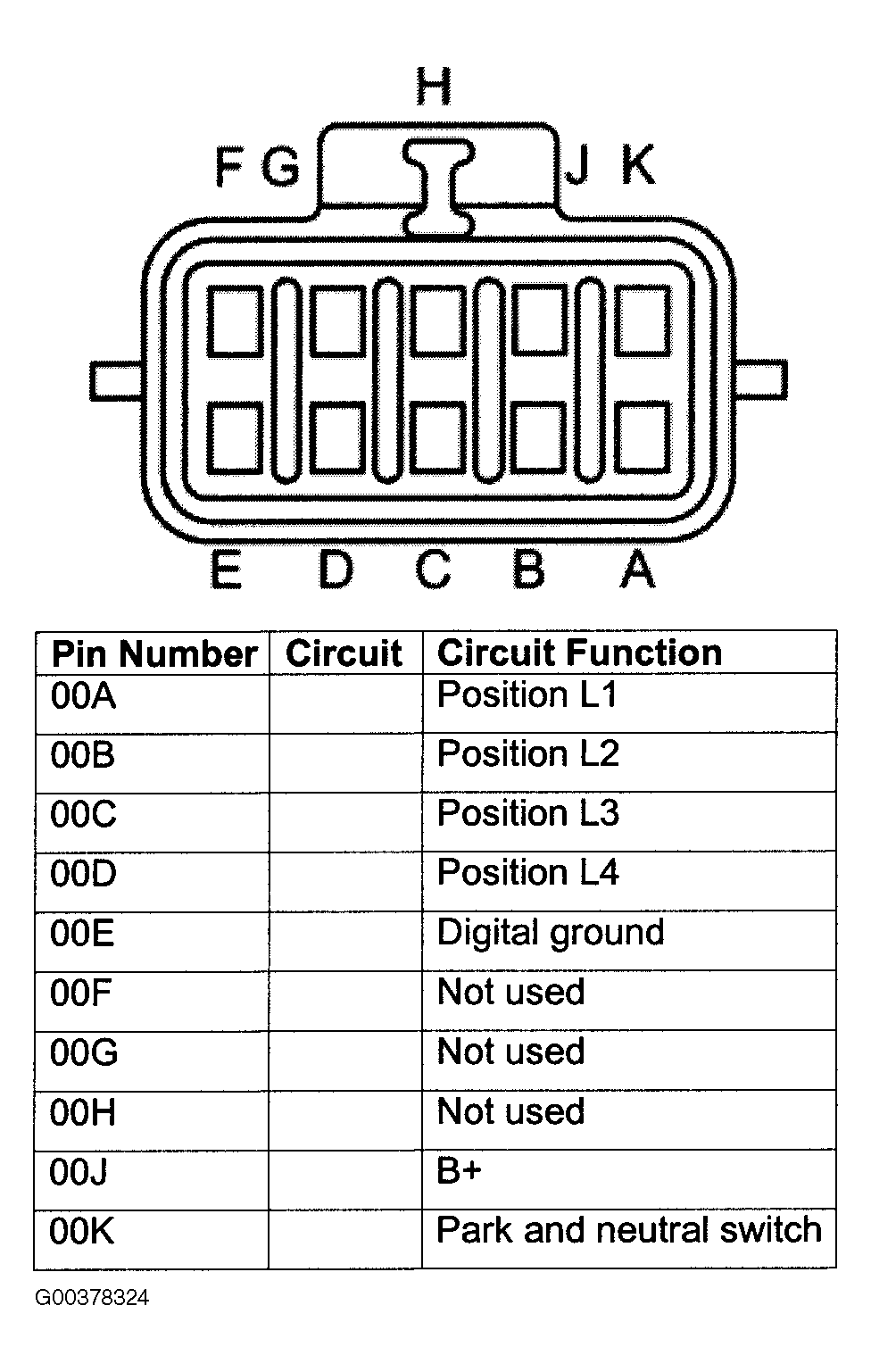

Fig 1: Identifying Transmission Rotary Switch Connector Terminals
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
