Torque Converter Clutch System
Torque Converter Clutch System

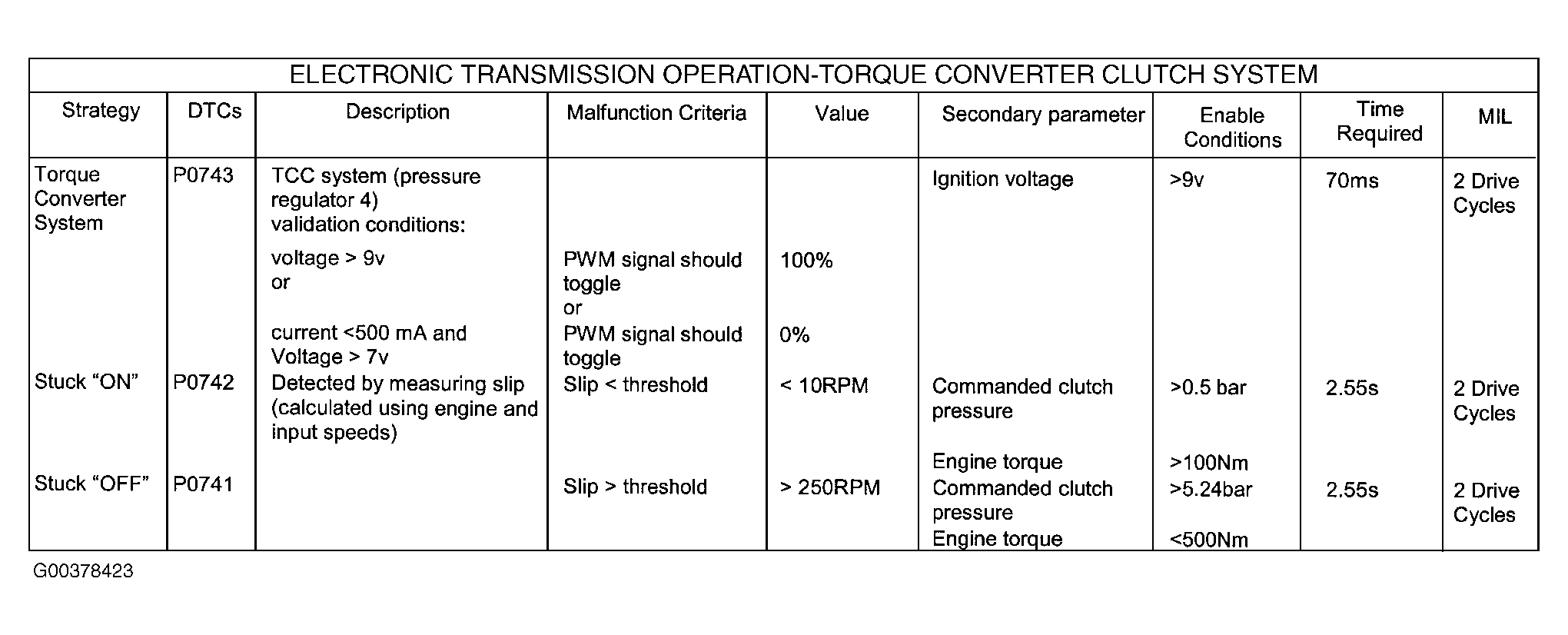

Fig 1: Torque Converter Clutch System Table
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
