Transmission System Mechanical

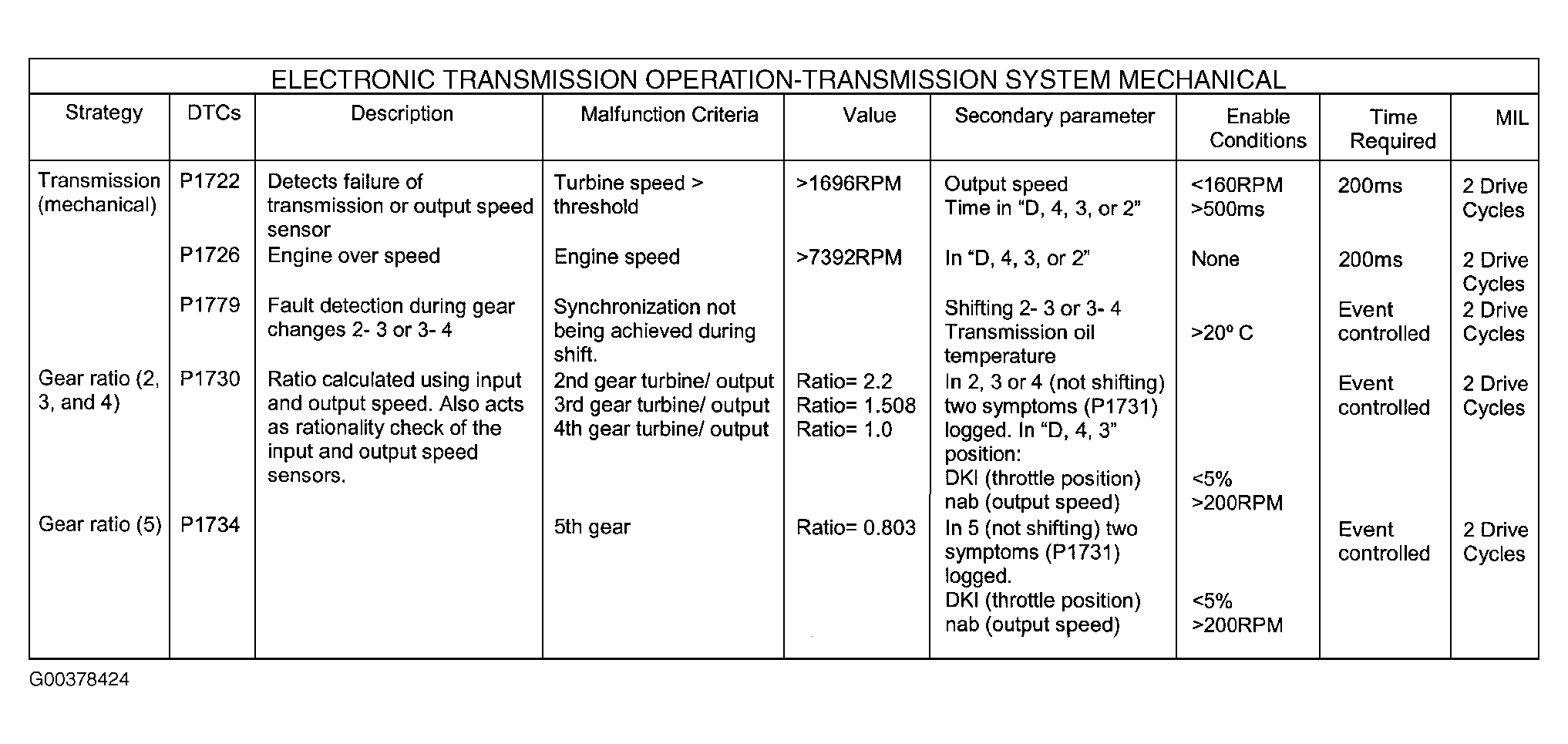

Fig 1: Transmission System Mechanical Table (1 Of 2)

Courtesy of JAGUAR CARS, INC.

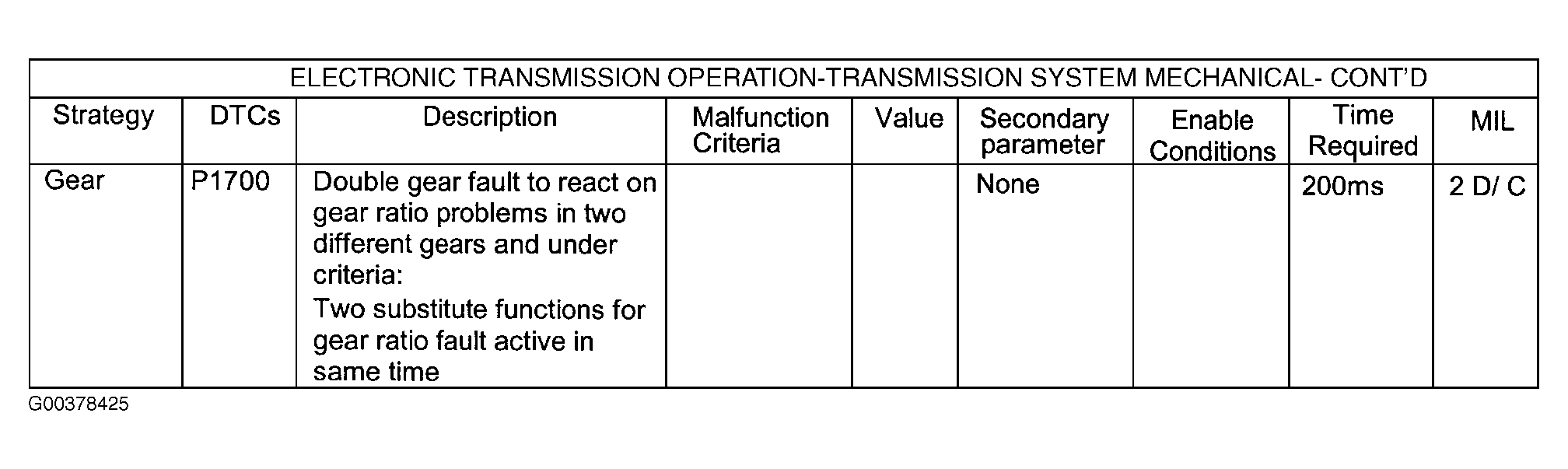

Fig 2: Transmission System Mechanical Table (2 Of 2)

Courtesy of JAGUAR CARS, INC.
