Driver Rear Door Control Module Connector End View
Driver Rear Door Control Module Connector End View

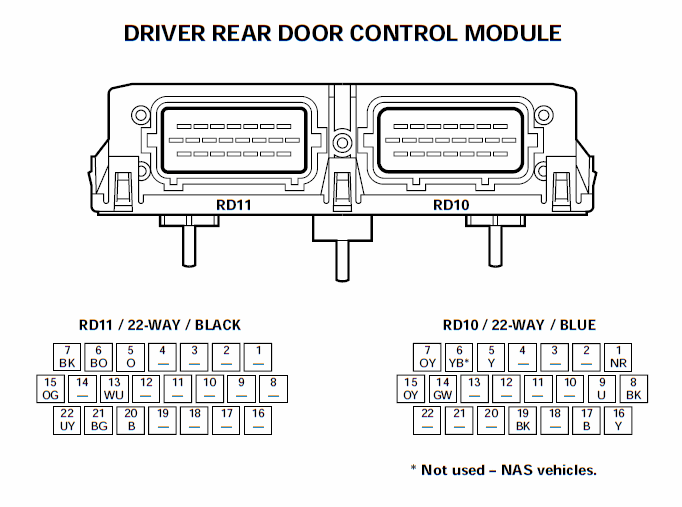

Fig 1: Driver Rear Door Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
