Engine Mount RH - In-Vehicle Procedures: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

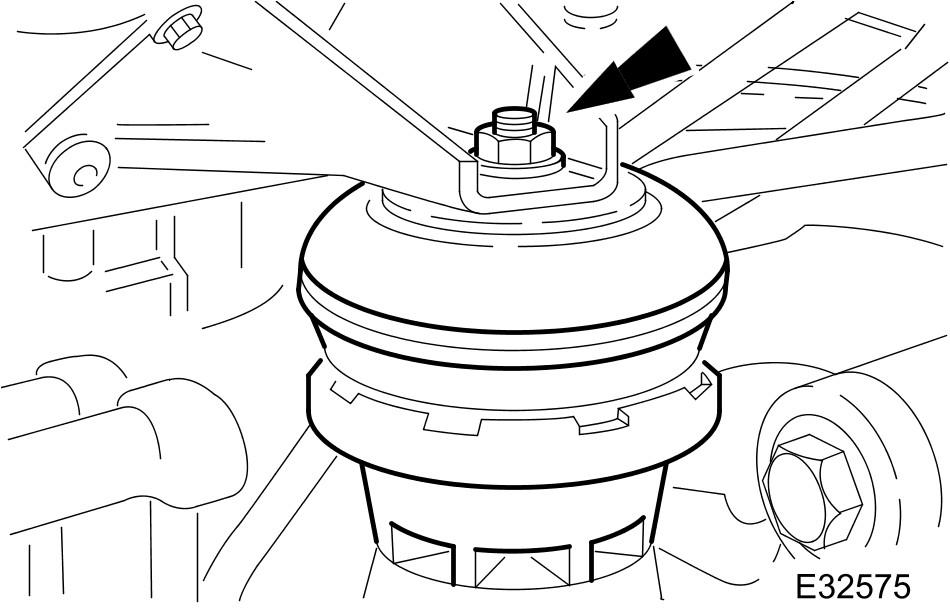

  1. Install the engine mount.
    • Tighten to 40 (+/- 15%) Nm.
      GJ0002382Courtesy of JAGUAR CARS, INC.
  2. Raise the vehicle.
  3. Install the engine mount retaining bolt.
    • Tighten to 30 (+/- 15%) Nm.
      GJ0002019Courtesy of JAGUAR CARS, INC.

    4. Right-hand drive vehicles

  4. Install the steering gear. Refer to Power Steering .

    5. All vehicles

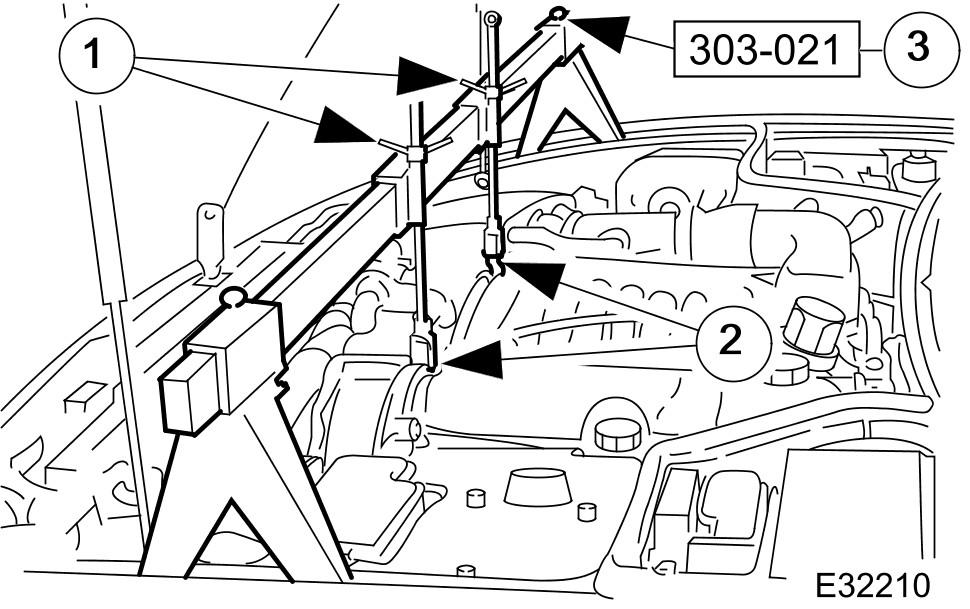

  5. Remove the special.
    • Release hook adjustment nuts.
    • Release hooks from brackets.
    • Remove special tool.
      GJ0000844Courtesy of JAGUAR CARS, INC.
  6. Remove the front engine lifting brackets.
  7. Install the air cleaner. Refer to Intake Air Distribution and Filtering .
