Catalyst Monitor Sensor LH - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the wiring harness is not twisted or damaged on installation. Failure to follow this instruction may result in damage to the vehicle.

To install, reverse the removal procedure.

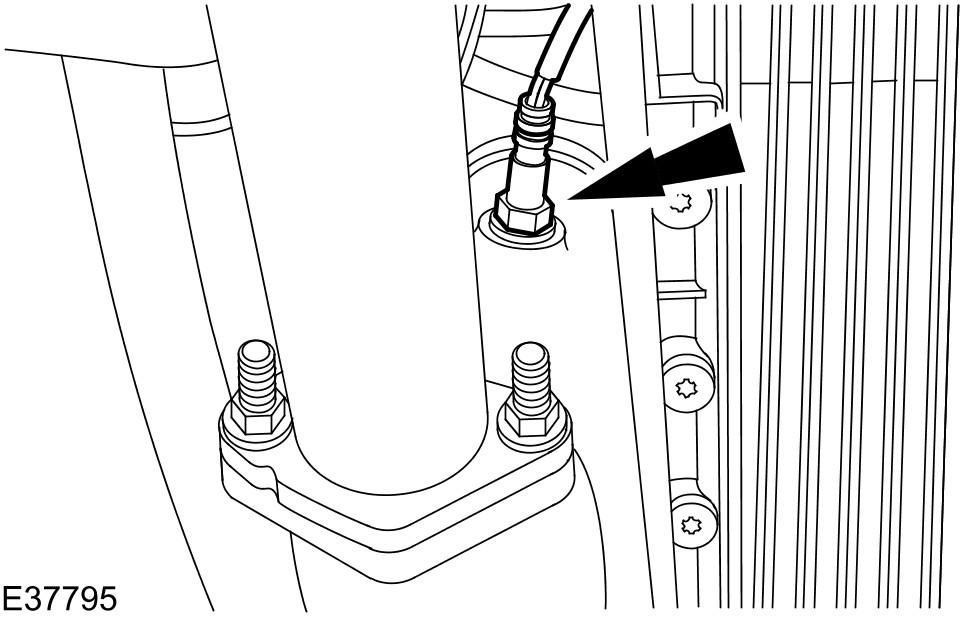

Tighten to 45 Nm.

Courtesy of JAGUAR CARS, INC.
