Passenger Door Control Module Connector End View
Passenger Door Control Module Connector End View

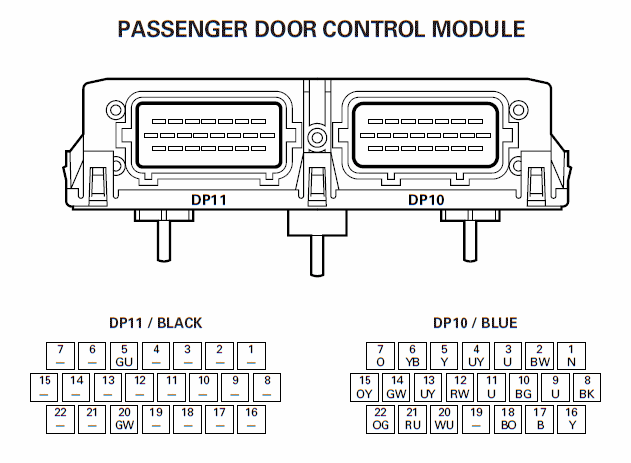

Fig 1: Passenger Door Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
