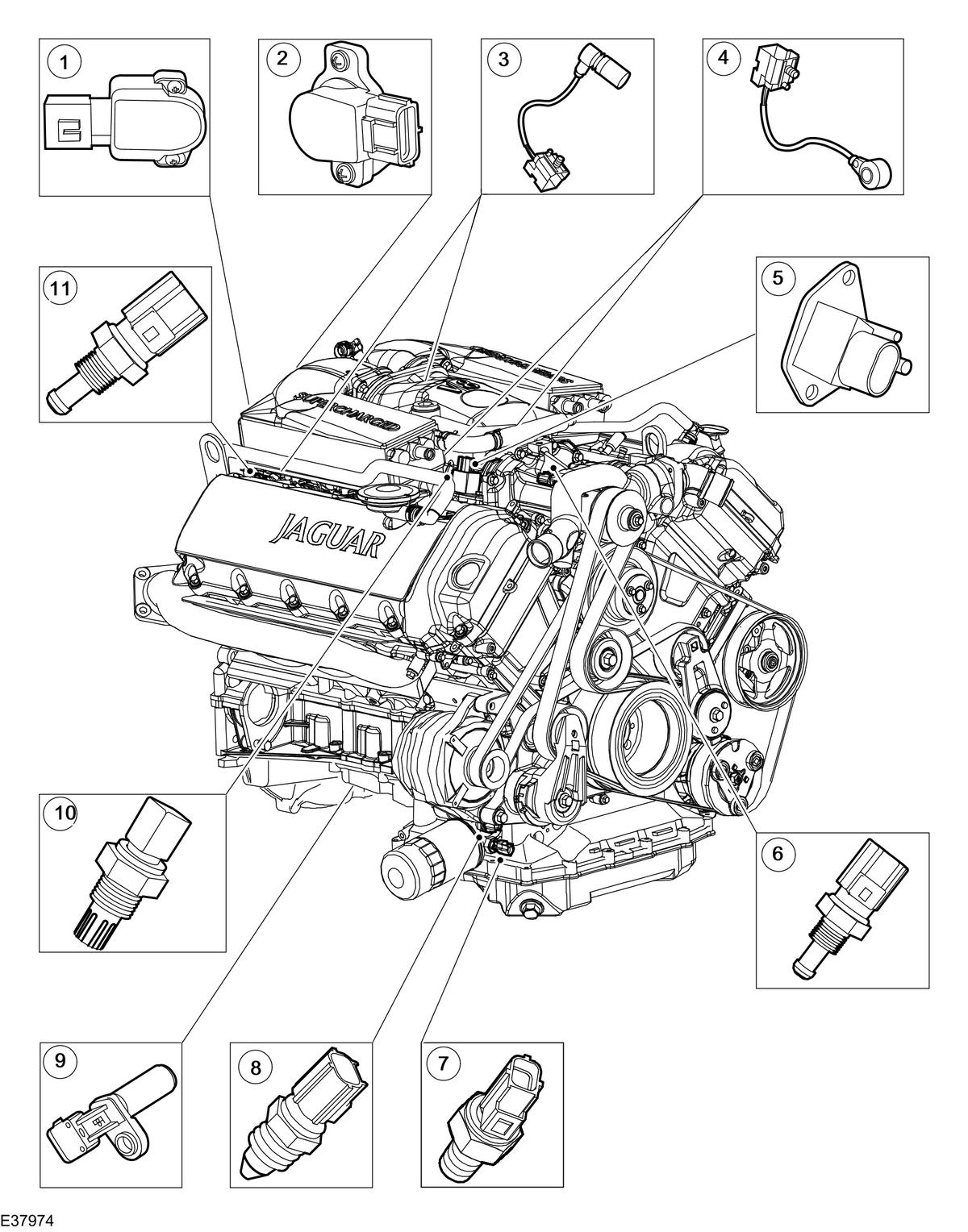

Vehicles with supercharger
| Item Number | Description |
|---|---|
| 1 | Throttle position (TP) sensor |
| 2 | Manifold absolute pressure (MAP) sensor |
| 3 | Camshaft position (CMP) sensor |
| 4 | Knock sensor (KS) |
| 5 | Fuel rail pressure (FRP) sensor |
| 6 | Engine coolant temperature (ECT) sensor |
| 7 | Oil pressure sensor |
| 8 | Oil temperature sensor |
| 9 | Crankshaft position (CKP) sensor |
| 10 | Intake air temperature (IAT) sensor |
| 11 | Fuel temperature sensor |
