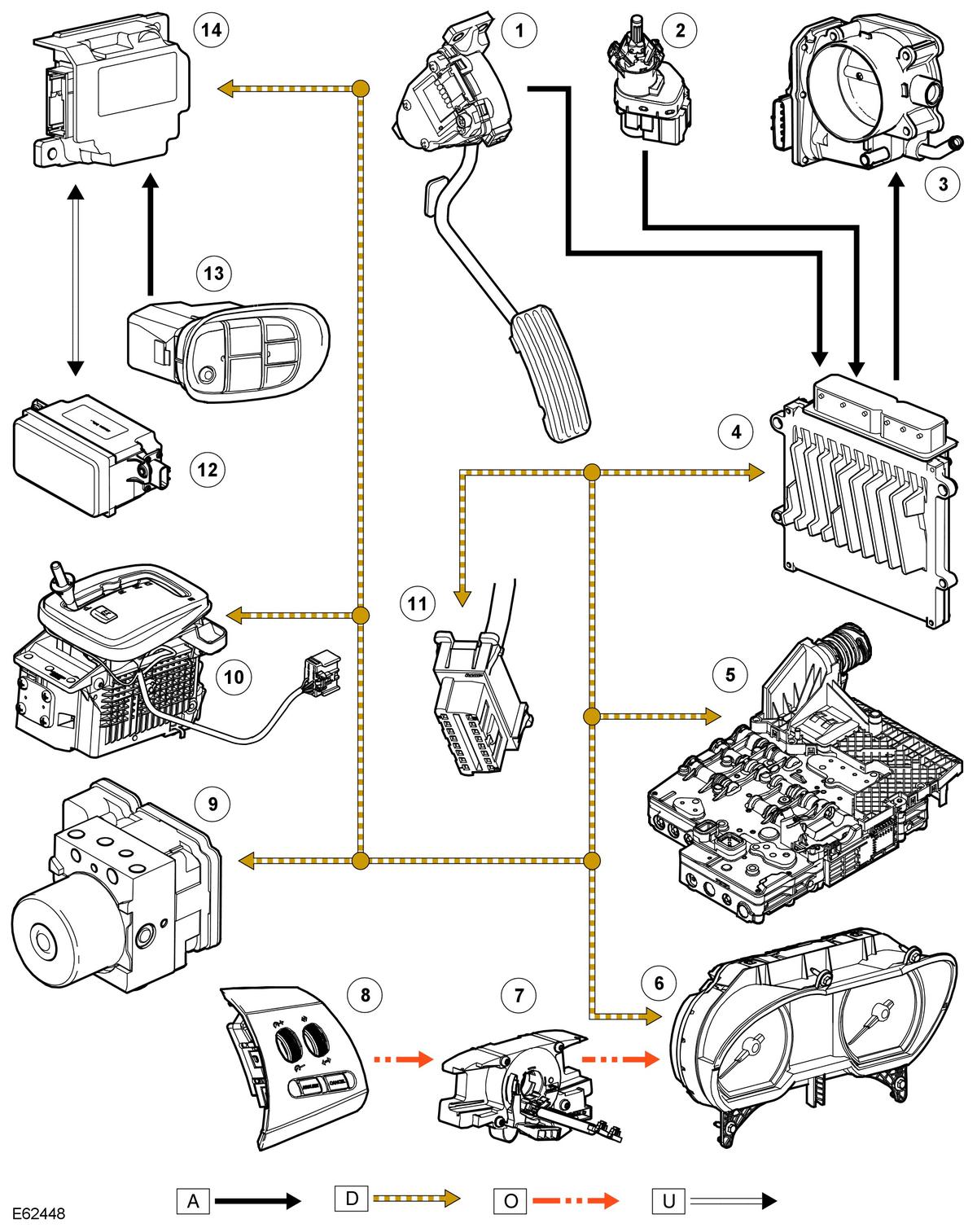

Control Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | APP sensor |
| 2 | Brake switch |
| 3 | Electric throttle |
| 4 | ECM |
| 5 | TCM |
| 6 | Instrument cluster |
| 7 | Clock spring |
| 8 | Steering wheel speed control switches |
| 9 | ABS module |
| 10 | Transmission selector lever |
| 11 | Diagnostic socket |
| 12 | Adaptive speed control sensor (adaptive speed control system only) |
| 13 | Forward alert switch (adaptive speed control system only) |
| 14 | Adaptive speed control module (adaptive speed control system only) |
NOTE:
A = Hardwired connection; D = High speed CAN bus; O = LIN (local interconnect network) bus; U = Private CAN
