Extension Housing Seal: Installation

  1. Using the special tool, install the extension housing seal.

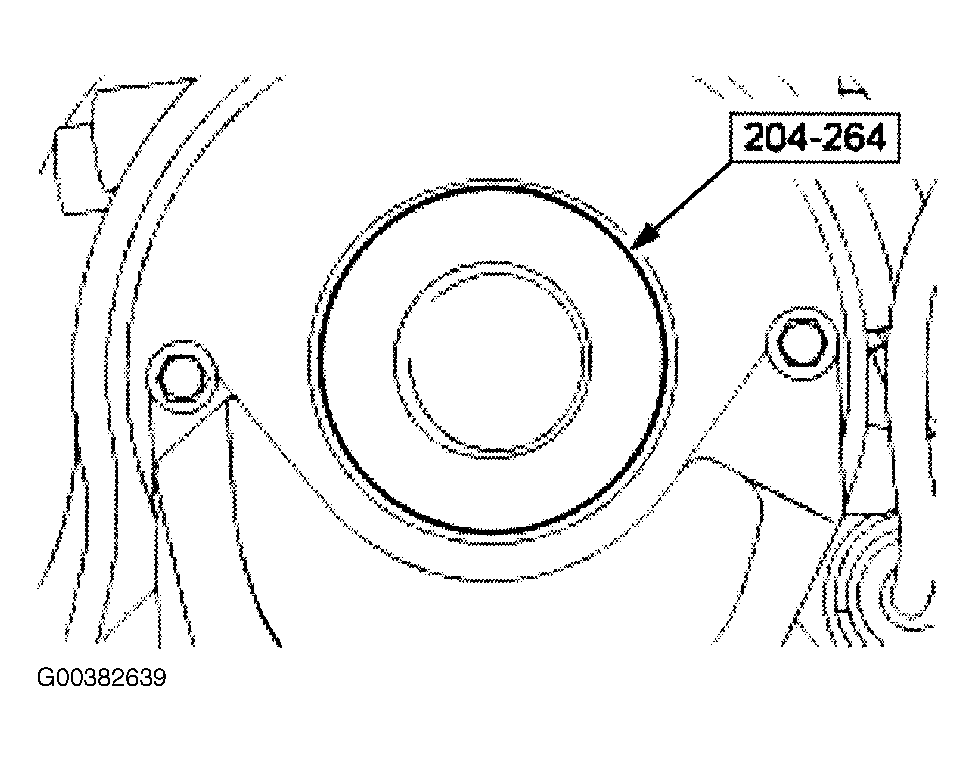

    Fig 1: Installing Extension Housing Seal
    G00382639Courtesy of JAGUAR CARS, INC.

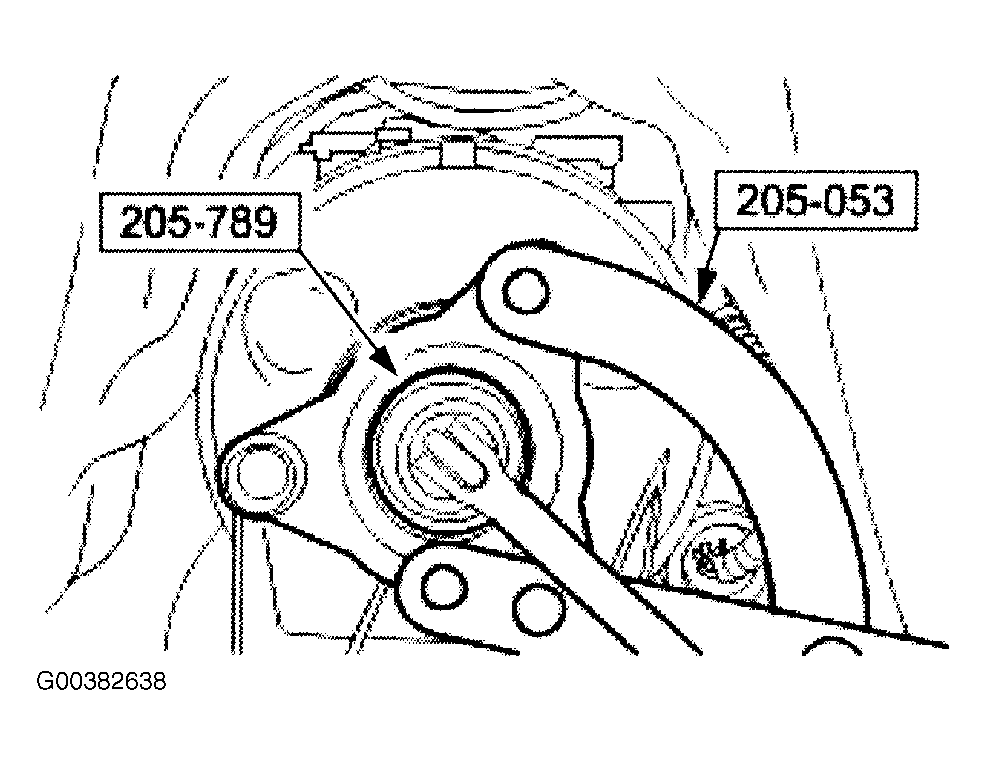

  2. Using the special tool to hold the output shaft flange, install a new output shaft flange retaining nut.
    • Install the output shaft flange spacing shim.
    • Install the output shaft flange.
    • Tighten to 60 Nm.

    See Figure.

  3. Install Driveshaft. See DRIVESHAFT .
