Climate Control Module (2005) Connector End View
Climate Control Module (2005) Connector End View

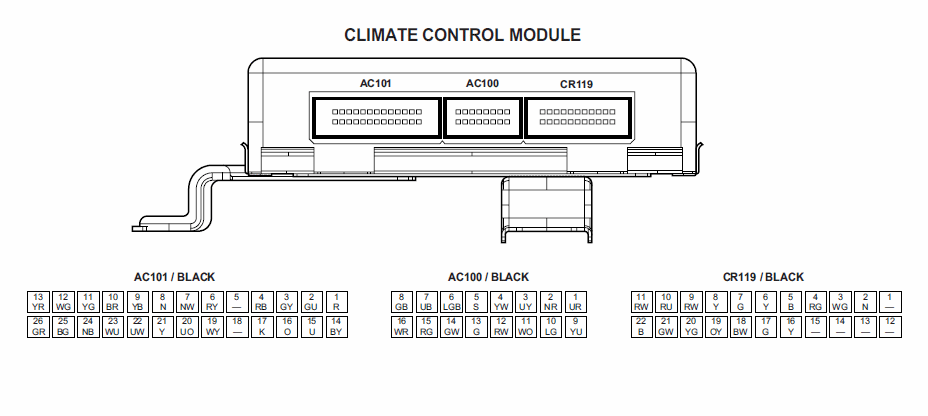

Fig 1: Climate Control Module (2005) Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
