Connector End Views
›
Driver Door Control Module Connector End View
Driver Door Control Module Connector End View

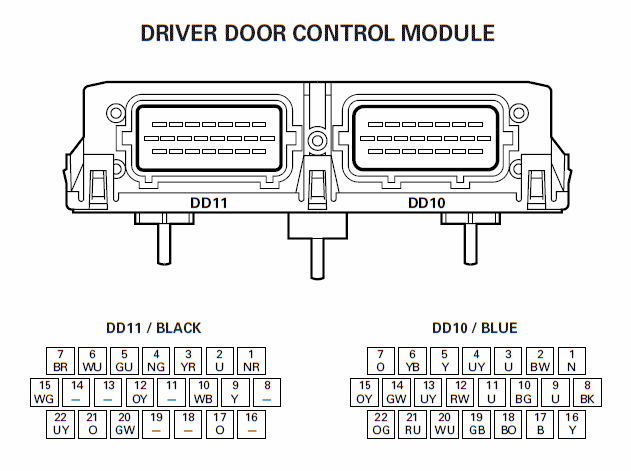

Fig 1: Driver Door Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
