Rear Electronic Module Connector End View
Rear Electronic Module Connector End View

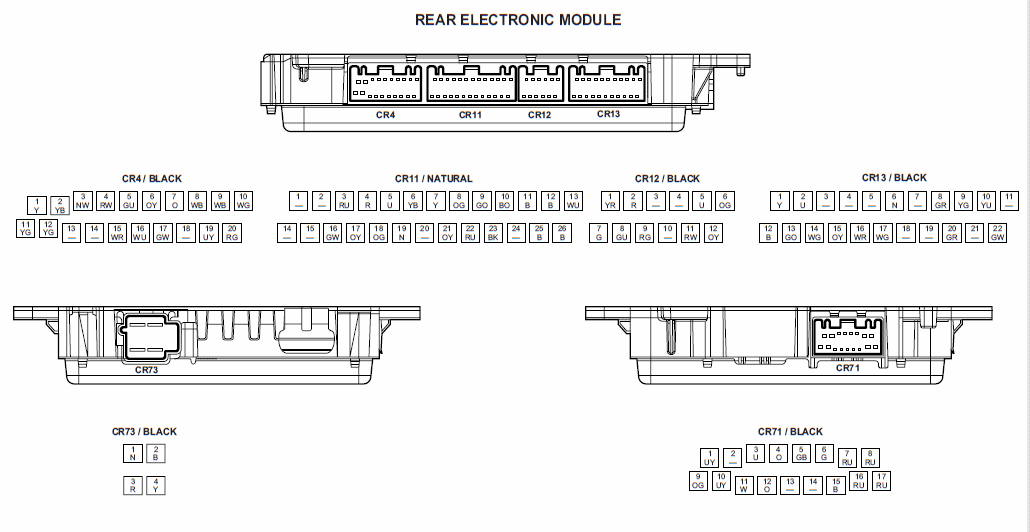

Fig 1: Rear Electronic Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
