Jaguar
›
2005
›
XJ8 Base
›
Repair and Diagnosis (Single Page)
›
Electrical
›
Wiring Diagrams
›
Connector End Views
›
Connector End Views
›
Engine Control Module Connector End View
Engine Control Module Connector End View

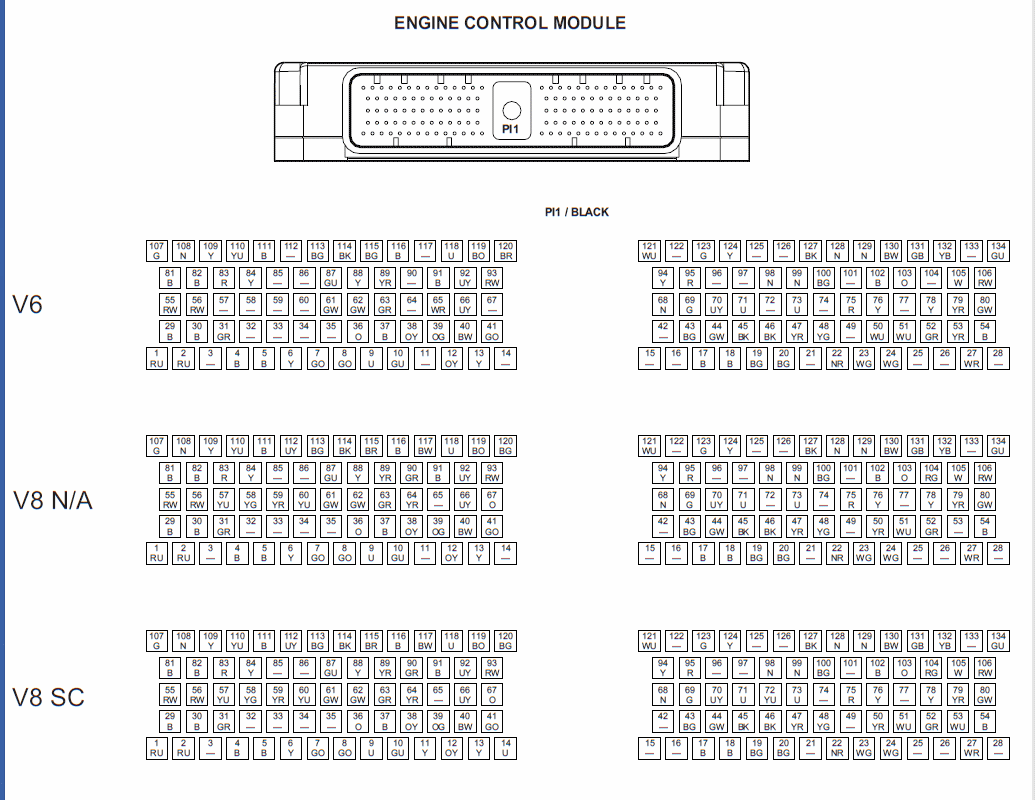

Fig 1: Engine Control Module Connector End View
