Rear Climate Control Module (2004) Connector End View
Rear Climate Control Module (2004) Connector End View

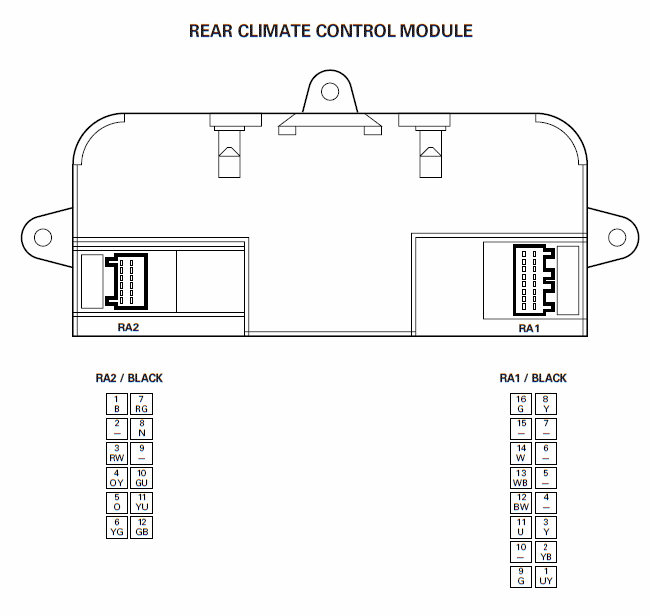

Fig 1: Rear Climate Control Module (2004) Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
