Driver Seat Module Connector End View

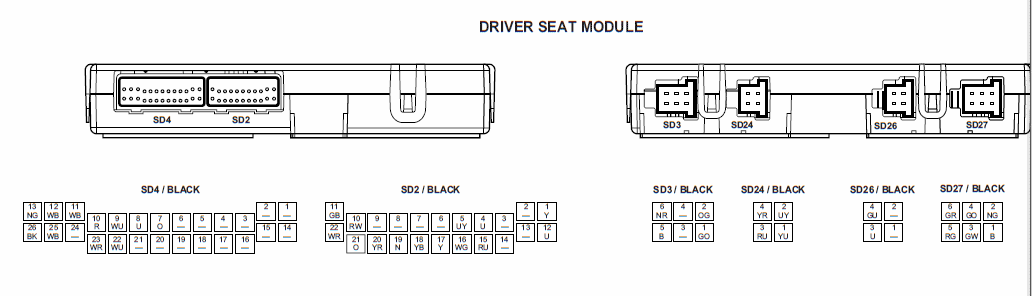

Fig 1: Driver Seat Module Connector End View
G00558668Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
