Body Processor Module Connector End View
Body Processor Module Connector End View

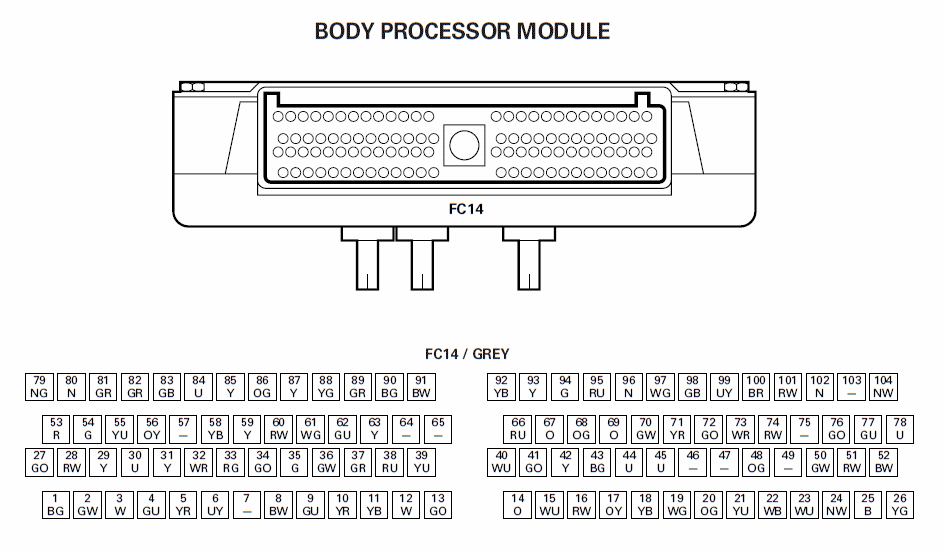

Fig 1: Body Processor Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
