Oil Temperature Sensor - Removal and Installation: Notes

  1. Raise and support the vehicle. Refer to Jacking and Lifting .
    GJ0002301Courtesy of JAGUAR CARS, INC.
  2. Remove the generator lower cooling duct.

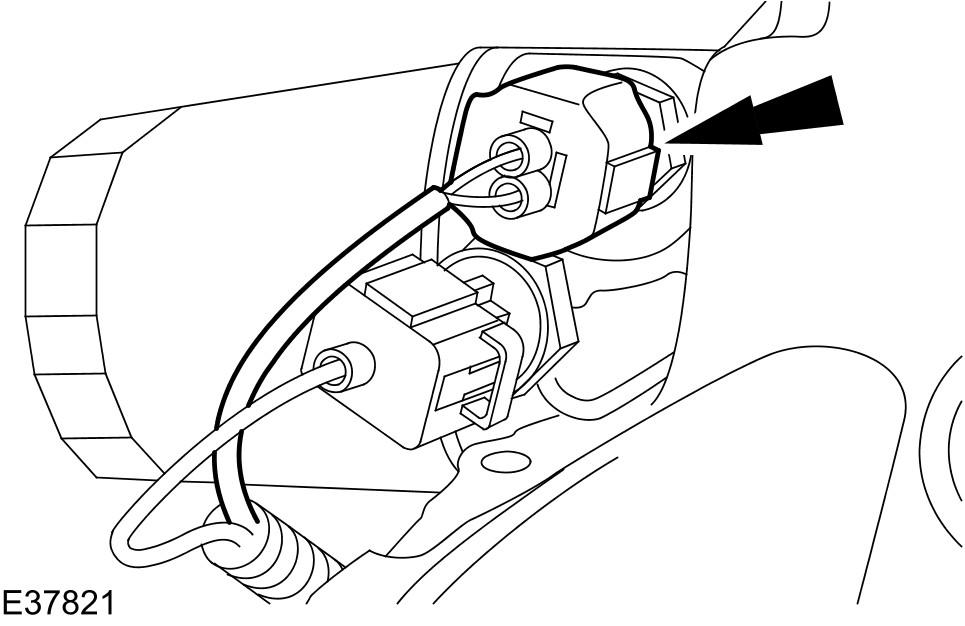

    GJ0002302Courtesy of JAGUAR CARS, INC.
  3. Disconnect the oil temperature sensor electrical connector.

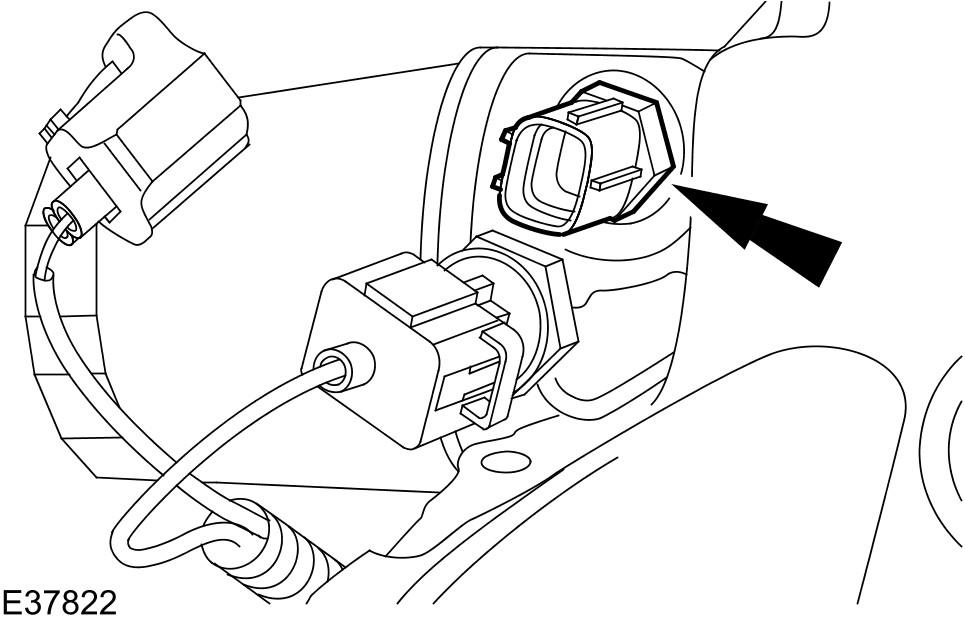

    GJ0002303Courtesy of JAGUAR CARS, INC.
  4. Remove the oil temperature sensor.
