Engine Mount LH - In-Vehicle Procedures: Installation

All vehicles

1. Install the engine mount.
   • Tighten to 40 (+/- 15%) Nm.

     Courtesy of JAGUAR CARS, INC.

2. Lower the vehicle.

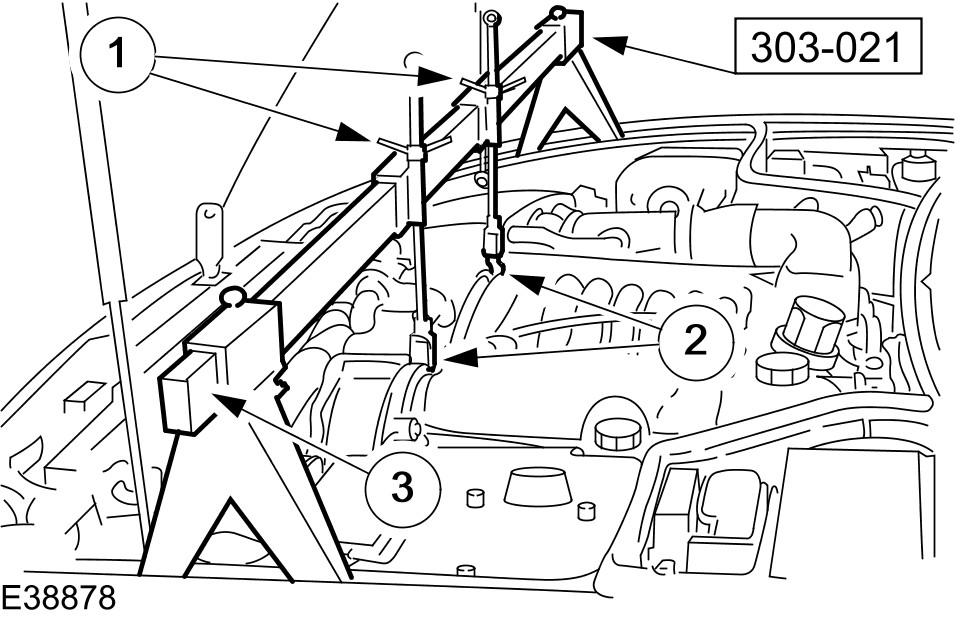

3. Remove the special tool.
   1. Loosen the hook adjustment nuts.
   2. Detach the hooks from the engine front lifting brackets.
   3. Remove the special tool.

      Courtesy of JAGUAR CARS, INC.

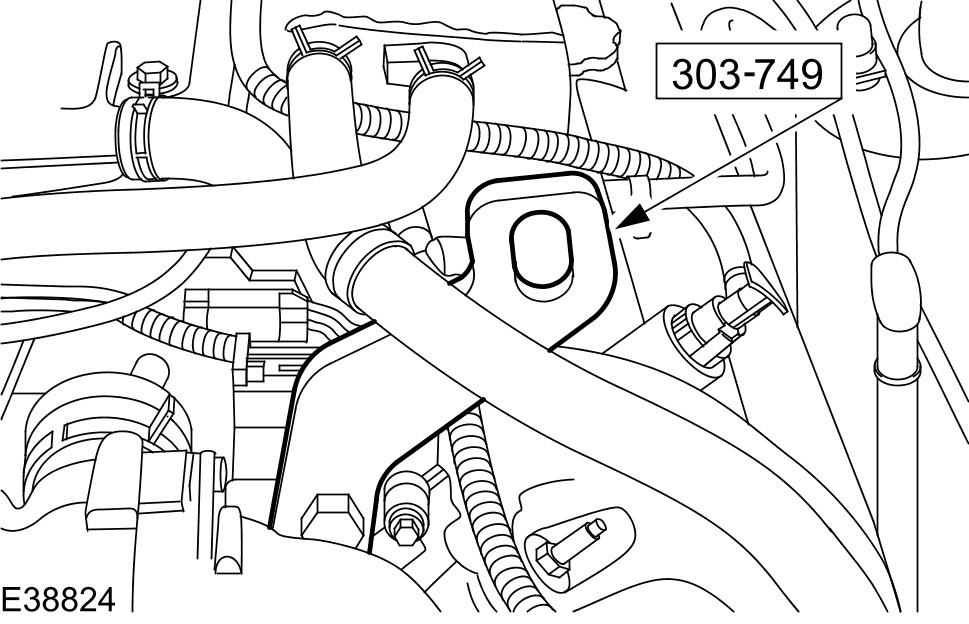

4. Remove the front engine lifting brackets.

   Courtesy of JAGUAR CARS, INC.

5. Remove the front engine lifting brackets.

   Courtesy of JAGUAR CARS, INC.

6. Raise the vehicle.

Left-hand drive vehicles

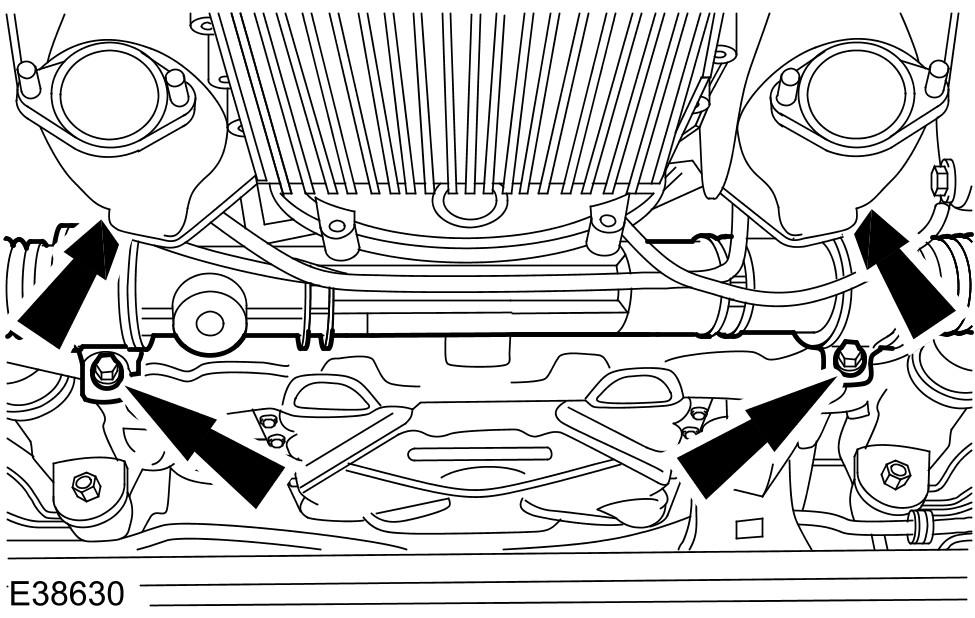

7. Attach the steering gear.
   • Remove the suitable tie straps supporting the steering gear.
   • Tighten to 45 Nm.

     Courtesy of JAGUAR CARS, INC.

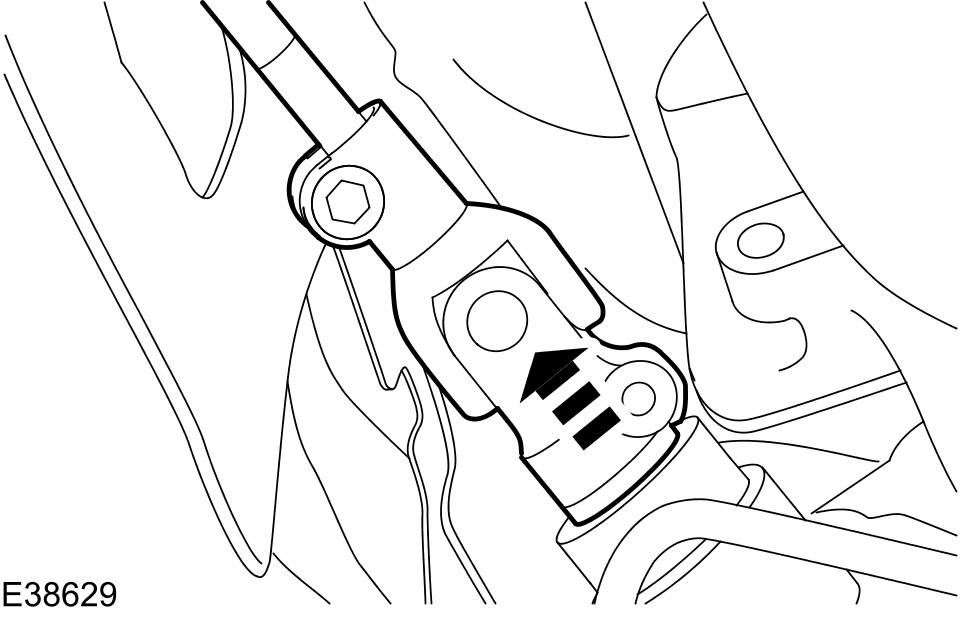

8. Attach the steering column shaft.

   Courtesy of JAGUAR CARS, INC.

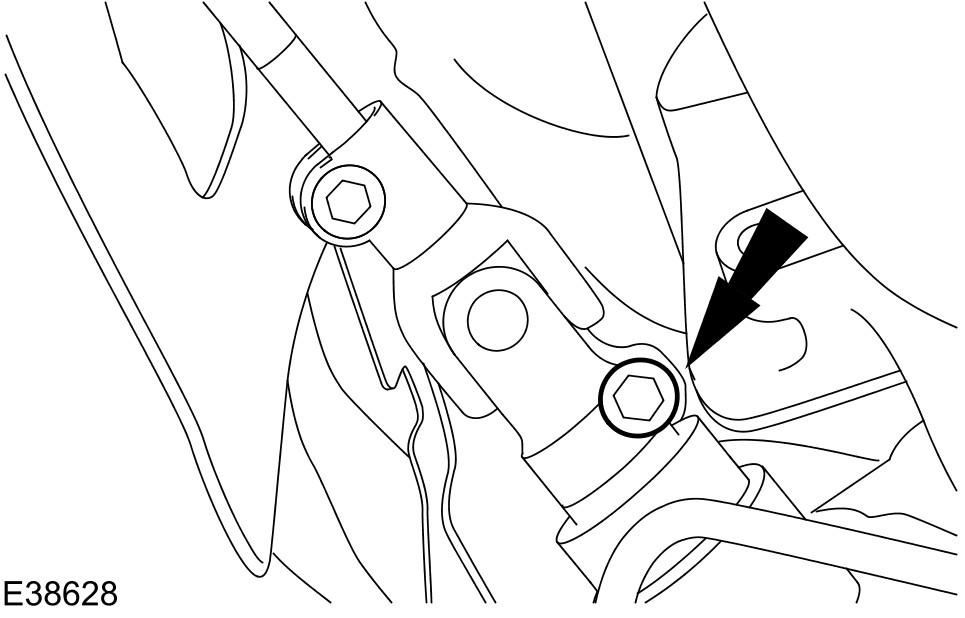

9. Install the steering column shaft retaining bolt.
   • Tighten to 25 Nm.

     Courtesy of JAGUAR CARS, INC.

Vehicles with convertible top

10. Install the radiator splash shield. Refer to Front End Body Panels .

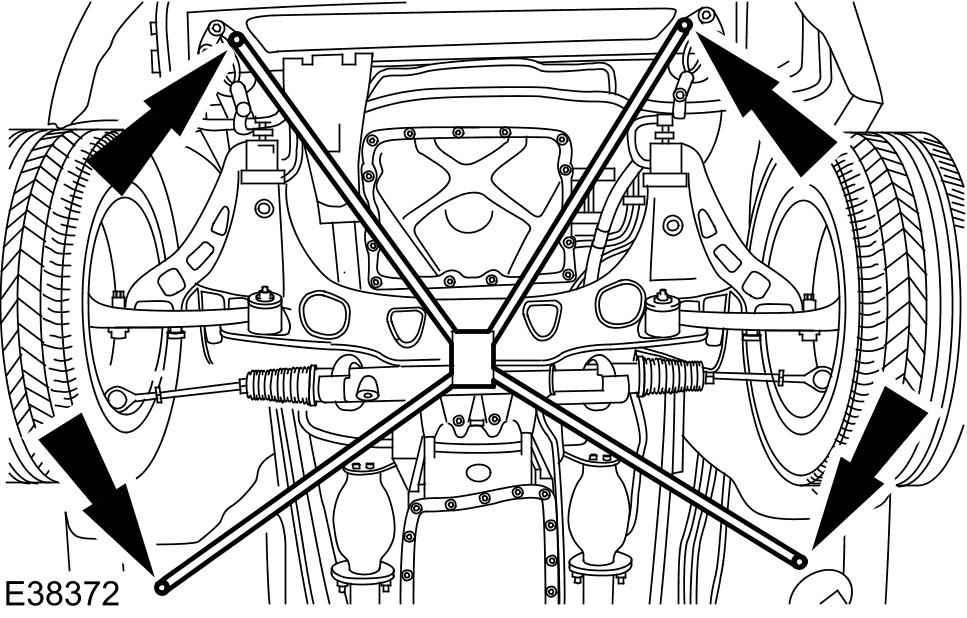

11. Install the underbody front cross brace.

    Courtesy of JAGUAR CARS, INC.

All vehicles

12. Install the engine mount retaining bolt.
    • Tighten to 30 (+/- 15%) Nm.

      Courtesy of JAGUAR CARS, INC.

13. Lower the vehicle.
