Transmission - Installation

Tool Illustration	Tool Name	Tool Number
Courtesy of JAGUAR CARS, INC.	Powertrain Assembly Jack	HTJ1200-02

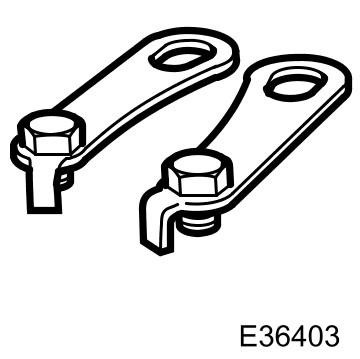

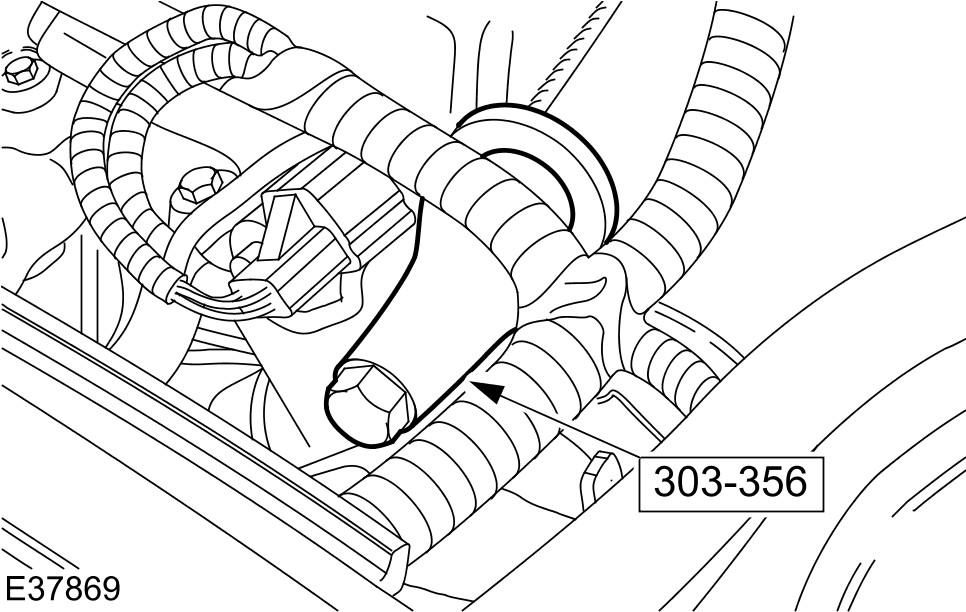

Courtesy of JAGUAR CARS, INC.	Engine Lifting Brackets	303-356
Courtesy of JAGUAR CARS, INC.	Engine Support Bracket	303-021

All vehicles

CAUTION: If the automatic transmission fluid is very dirty or it contains metallic particles, then along with a new transmission, install a new automatic transmission fluid cooler and lines.
1. Flush the transmission fluid cooler and tubes.
NOTE: Use high-temperature grease meeting Jaguar specification.
2. Apply a thin layer of high-temperature grease to the centering spigot bore on the torque converter.

   Courtesy of JAGUAR CARS, INC.

WARNING: Do not let the torque converter drop out of the automatic transmission. Failure to follow this instruction may result in personal injury.
CAUTION: The torque converter hub must engage fully in the oil pump drive gear throughout the whole installation procedure.
3. Install the automatic transmission to the vehicle.
   • Raise the automatic transmission to the vehicle.

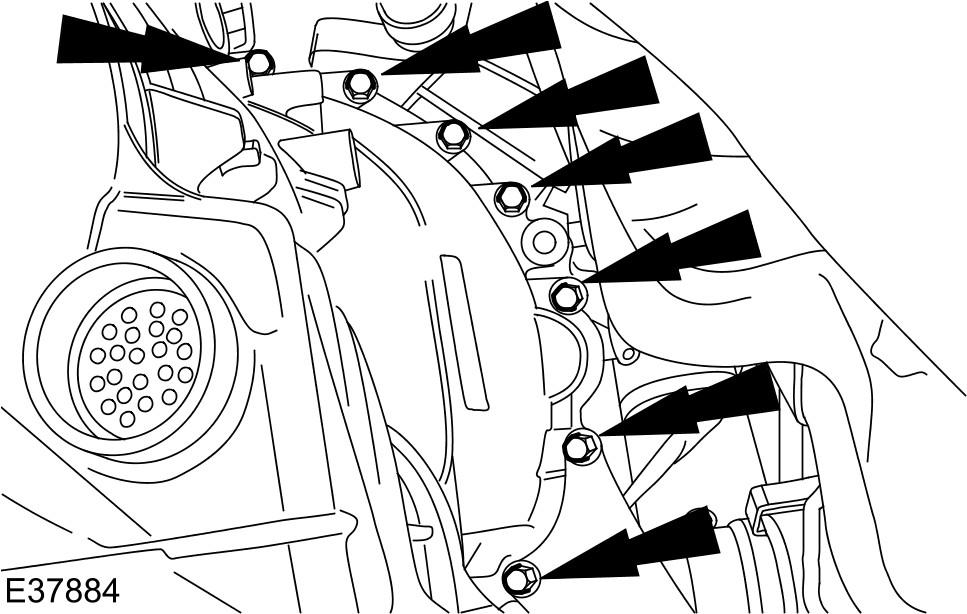

   • Install the transmission to engine retaining bolts.
   • Tighten to 48 Nm.

   Courtesy of JAGUAR CARS, INC.

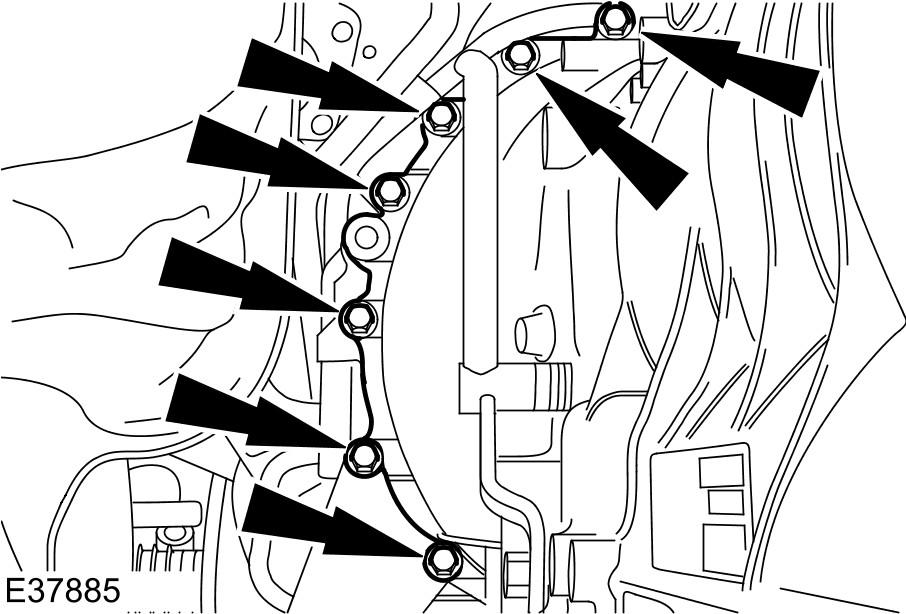

4. Install the transmission to engine retaining bolts.
   • Tighten to 48 Nm.

   Courtesy of JAGUAR CARS, INC.

5. Attach the transmission mount bracket.

   Courtesy of JAGUAR CARS, INC.

6. Install the transmission mount bracket retaining bolts.

   Courtesy of JAGUAR CARS, INC.

7. Remove the tie down strap.

   Courtesy of JAGUAR CARS, INC.

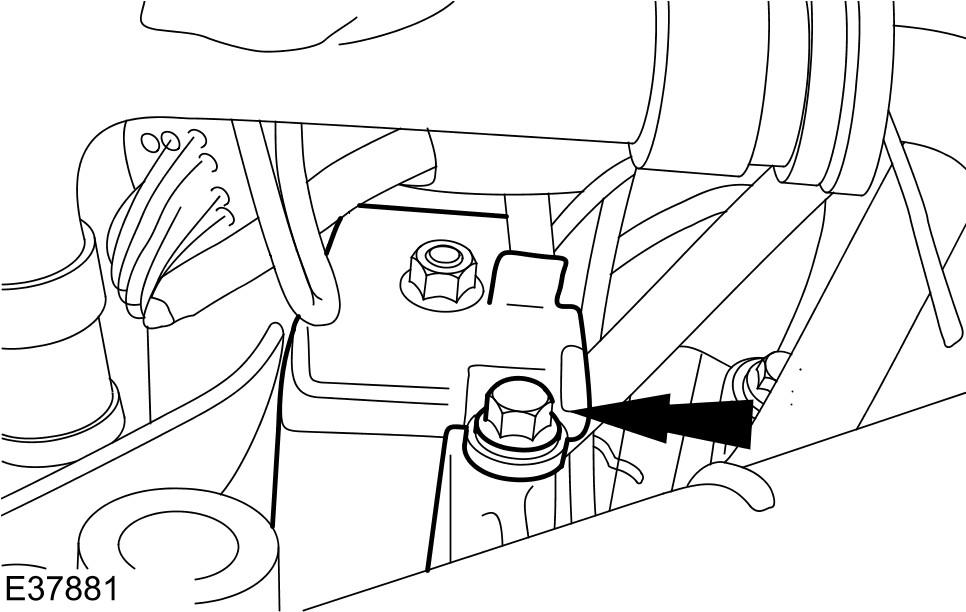

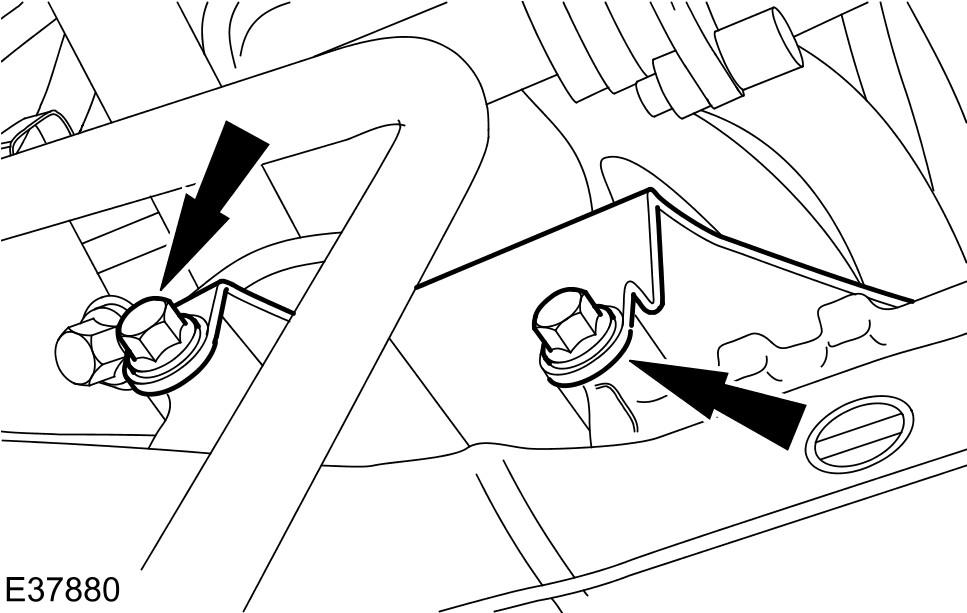

8. Install the automatic transmission mount retaining bolts.
   • Raise the rear of the transmission.
   • Tighten to 50 Nm.

   Courtesy of JAGUAR CARS, INC.

9. Remove the special tool.

   Courtesy of JAGUAR CARS, INC.

10. Install the transmission to engine lower retaining bolts.
    • Tighten to 48 Nm.

    Courtesy of JAGUAR CARS, INC.

CAUTION: Make sure the transmission control module (TCM) and main control valve body is protected against electrostatic discharge. Failure to follow this instruction may result in component damage.

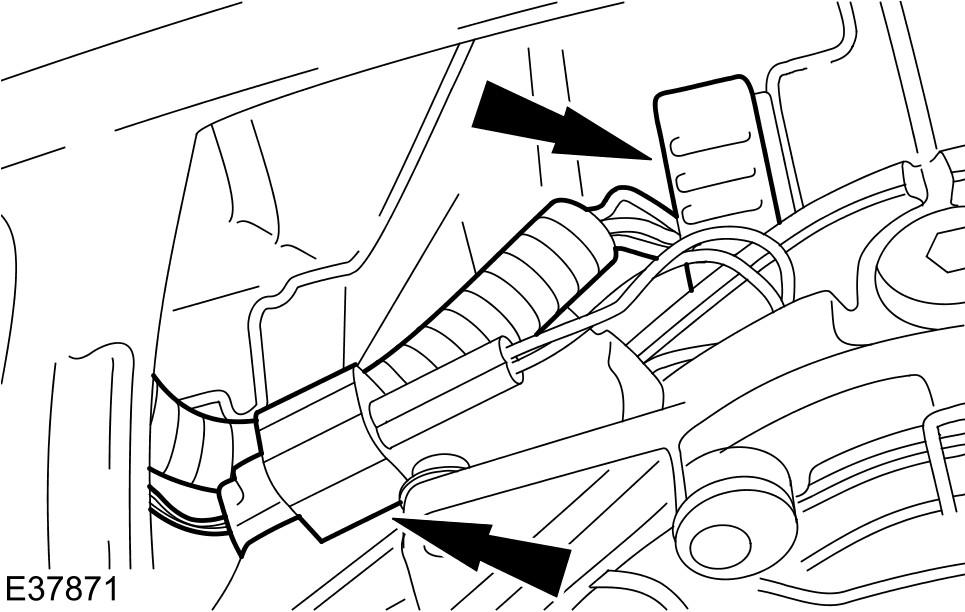

11. Connect the automatic transmission electrical connectors.

    Courtesy of JAGUAR CARS, INC.

12. Attach the transmission fluid cooler tubes to the automatic transmission.
    1. Attach the transmission fluid cooler tubes to the automatic transmission.
    2. Install the retaining plate.
    3. Install the retaining bolt.
    4. Tighten to 23 Nm.

    Courtesy of JAGUAR CARS, INC.

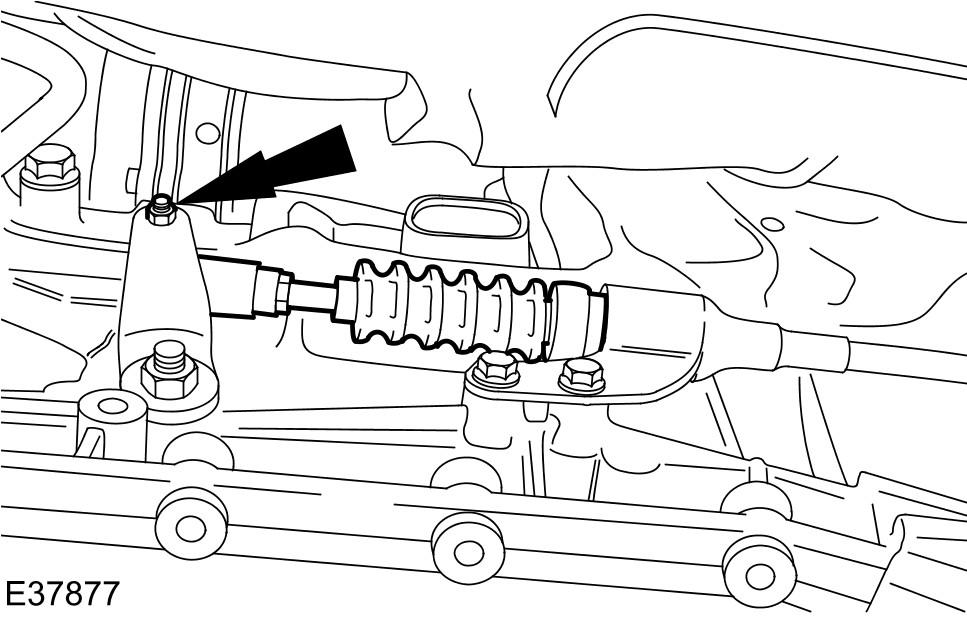

13. Attach the selector lever cable and bracket.
    • Tighten to 11 Nm.

    Courtesy of JAGUAR CARS, INC.

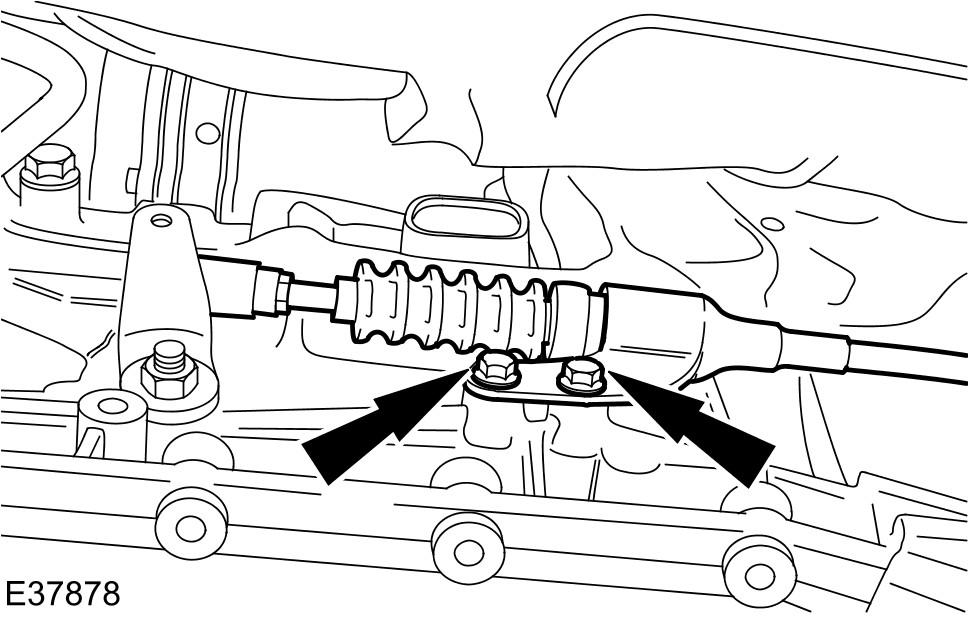

14. Attach the selector lever cable to the transmission gear selector.

    Courtesy of JAGUAR CARS, INC.

NOTE: Right-hand shown, left-hand similar.

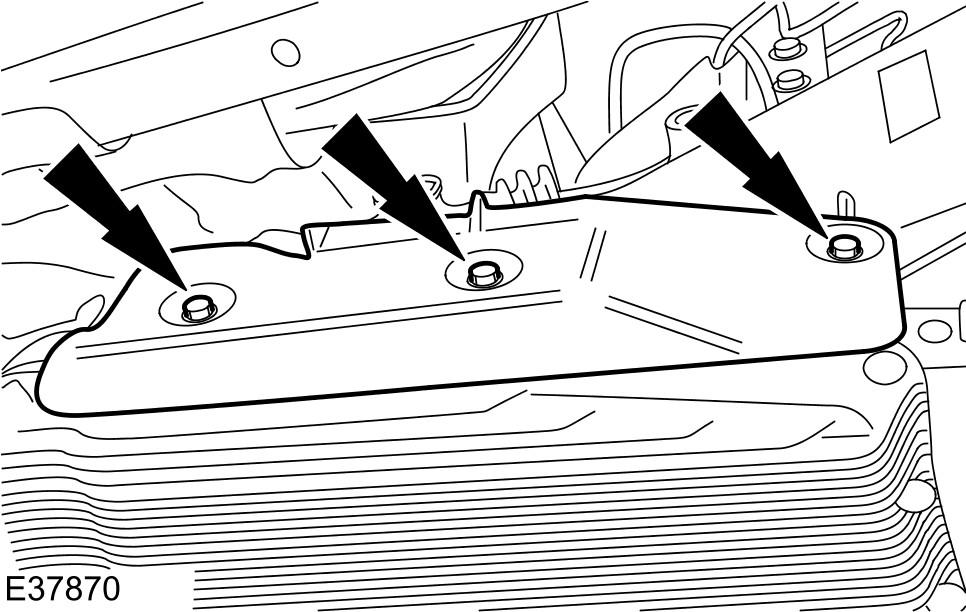

15. Install the transmission heat shields.

    Courtesy of JAGUAR CARS, INC.

16. Attach the transmission fluid cooler tubes.

    Courtesy of JAGUAR CARS, INC.

17. Install the torque converter retaining bolts.
    • Rotate the torque converter to gain access to the remaining two retaining bolts.
    • Tighten to 55 Nm.

    Courtesy of JAGUAR CARS, INC.

18. Install the torque converter retaining bolt access cover.
19. Install the driveshaft. Refer to Driveshaft .

    Courtesy of JAGUAR CARS, INC.

NOTE: Vehicles with 4.2L engine with supercharger shown, vehicles with 4.2L engine without supercharger similar.
NOTE: Right-hand shown, Left-hand similar.
20. Remove the special tool.
    • Loosen the special tool adjustment bolts.

    Courtesy of JAGUAR CARS, INC.

NOTE: Vehicles with 4.2L engine with supercharger shown, vehicles with 4.2L engine similar.
21. Remove the special tool.

    Courtesy of JAGUAR CARS, INC.

NOTE: Vehicles with 4.2L engine with supercharger shown, vehicles with 4.2L engine similar.

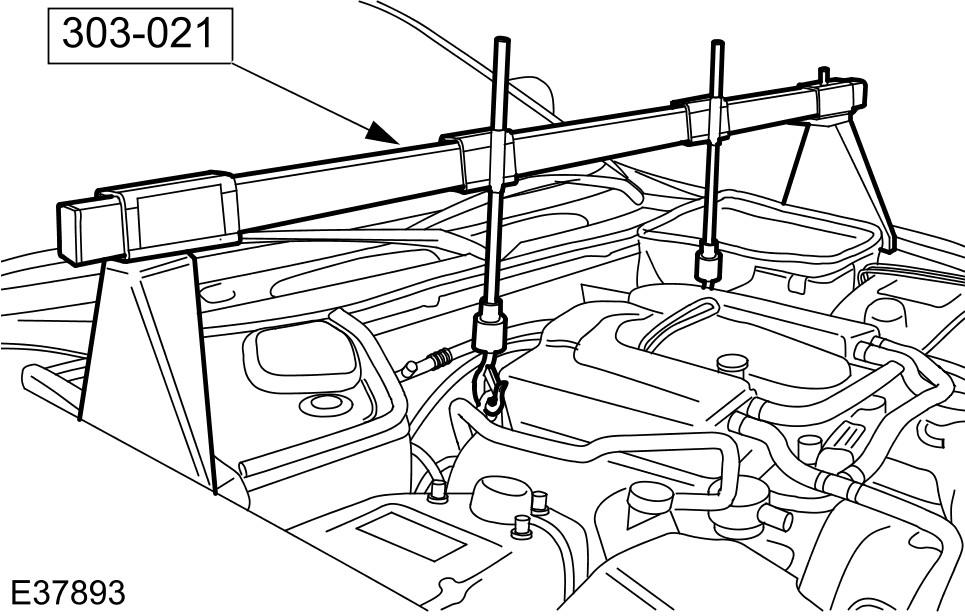

22. Remove the special tool.

Vehicles with supercharger

Courtesy of JAGUAR CARS, INC.

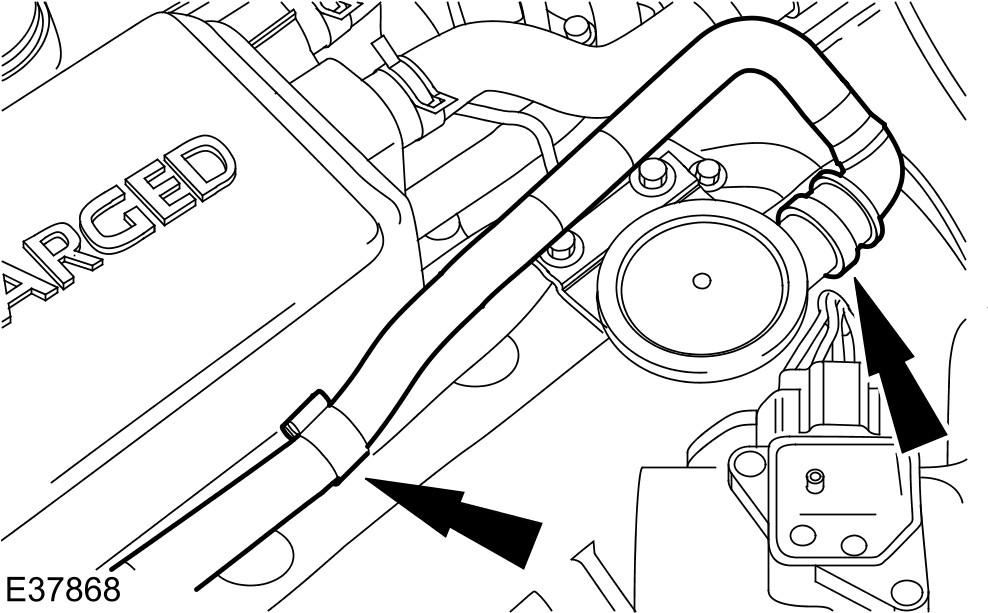

1. Attach the crankcase ventilation tube.

   Courtesy of JAGUAR CARS, INC.

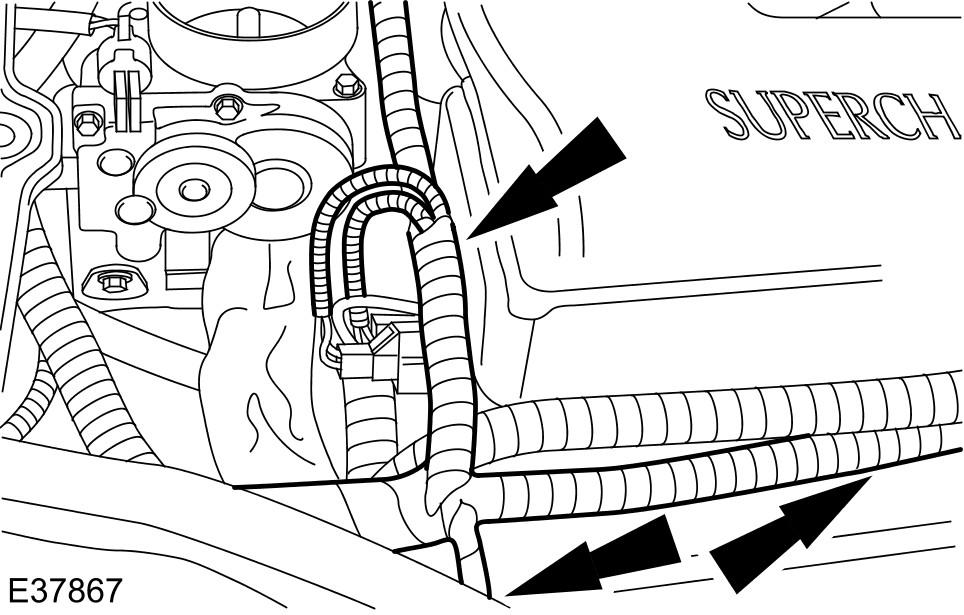

2. Attach the wiring harness.

All vehicles

1. Attach the catalytic converters. Refer to Catalytic Converter LH and Catalytic Converter RH .
2. Connect the battery ground cable. Refer to Battery Ground Cable .
3. Carry out a transmission fluid level check. Refer to Transmission Fluid Level Check .
