Selector Lever - Assembly and Disassembly: Assembly

Courtesy of JAGUAR CARS, INC.

1. To install, reverse the removal procedure.

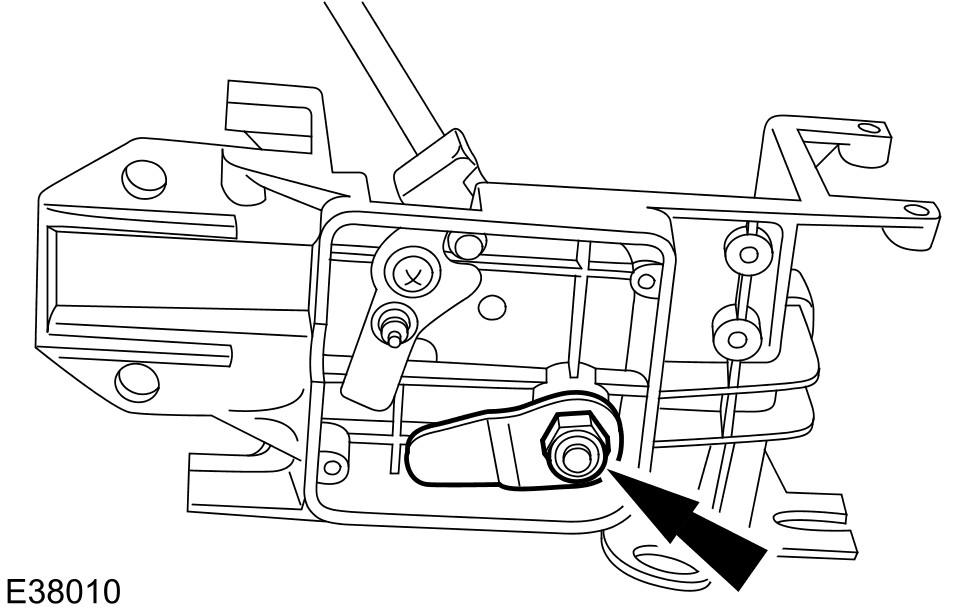

   • Tighten to 10 Nm.

   Courtesy of JAGUAR CARS, INC.

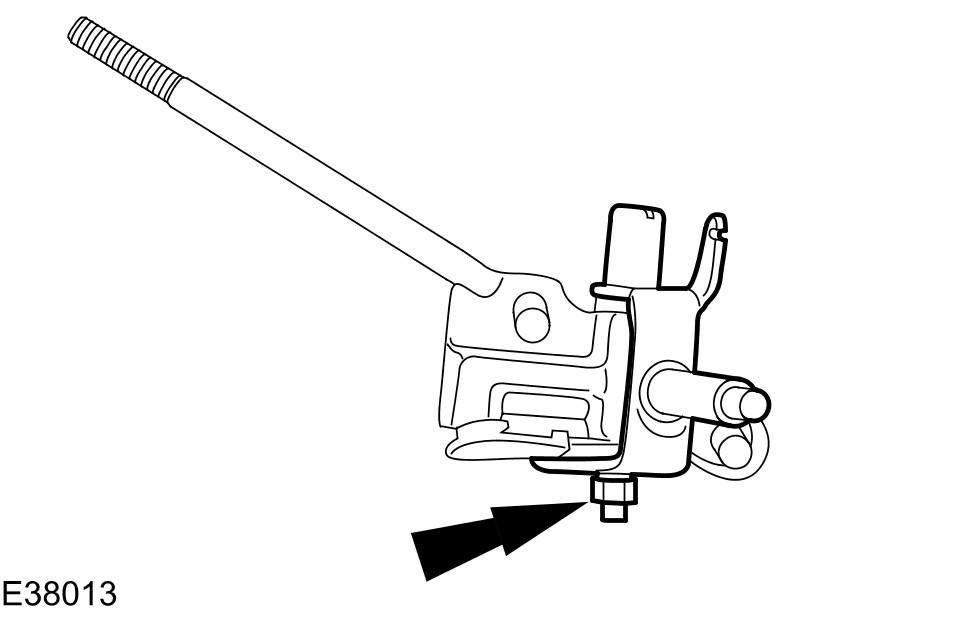

2. Tighten to 12 Nm.

   Courtesy of JAGUAR CARS, INC.

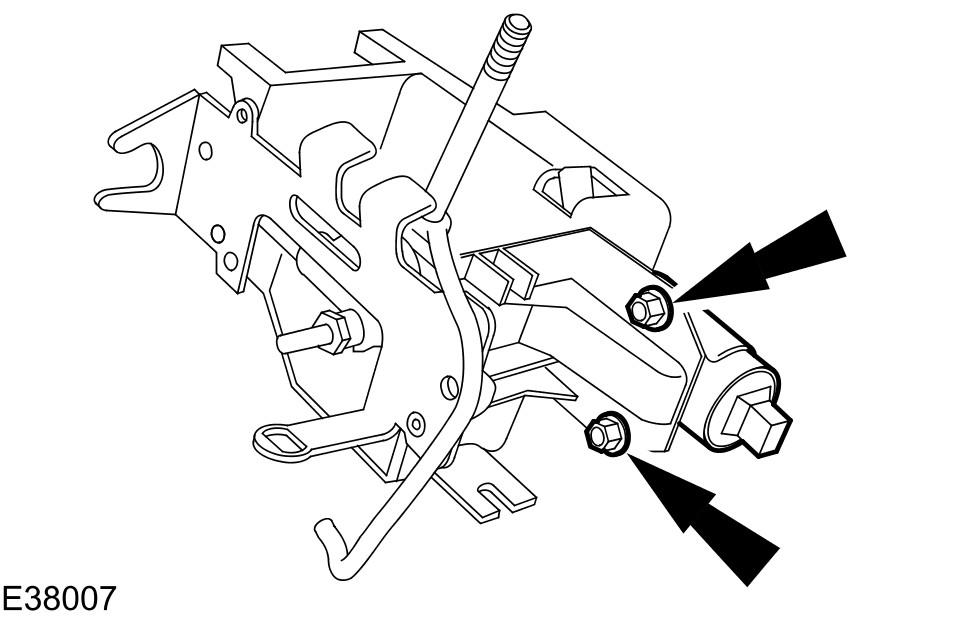

3. Tighten to 5 Nm.
