Engine Compartment

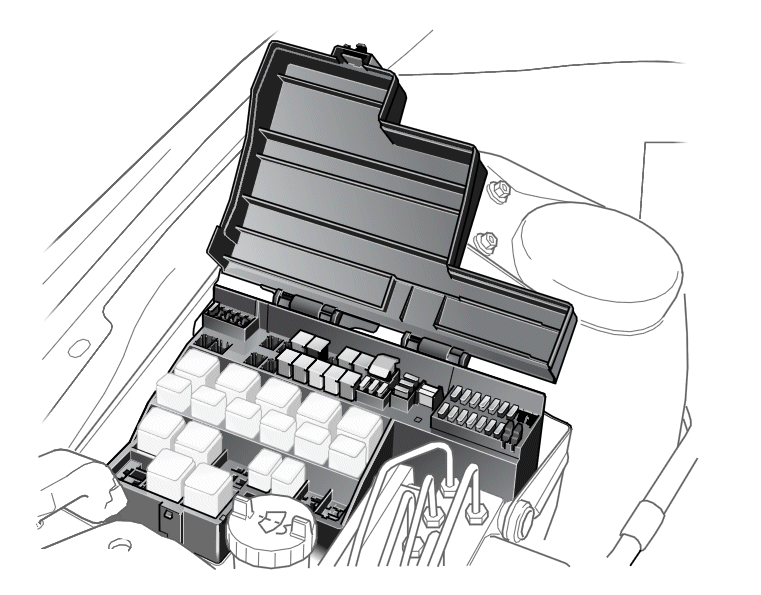

The engine compartment fuse box is located on the right-hand side adjacent to the windscreen wash reservoir.

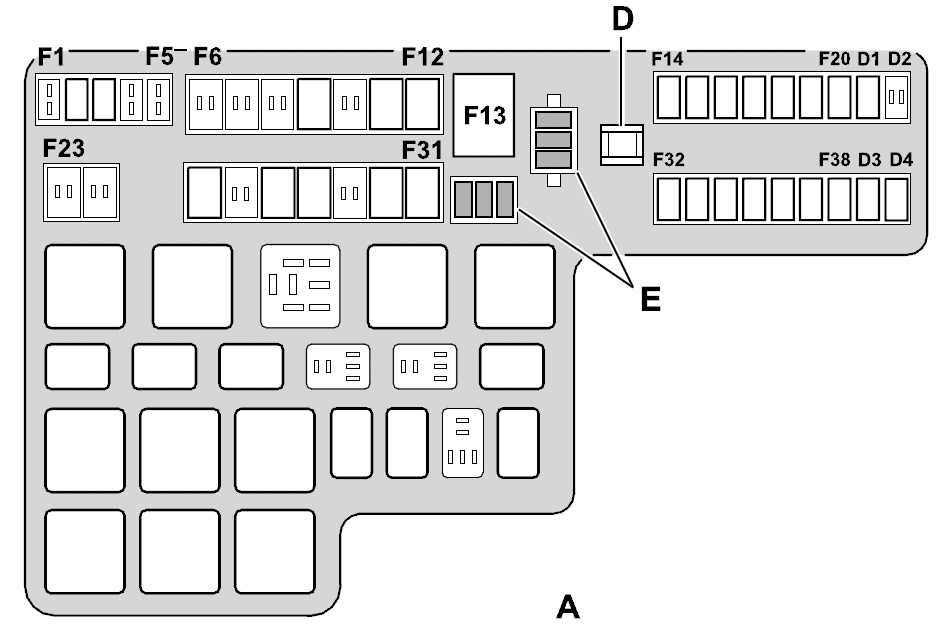

ENGINE COMPARTMENT FUSE BOX (A) FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| F1 | 5A | ABS B+ |
| F2 | 5A | Engine management system (EMS) engine control module, Vacuum solenoid |
| F3 | 20A | Auxiliary fuel fired heater |
| F4 | 20A | ABS valves, Vbatt |
| F5 | - | Not Used |
| F6 | - | Not Used |
| F7 | - | Not Used |
| F8 | - | Not Used |
| F9 | 50A | Gasoline HEGO sensors, ignition EMS relays |
| F10 | - | Not Used |
| F11 | 40A | Headlight powerwash |
| F12 | 20A | Wipers |
| F13 | 80A | Cooling fan |
| F14 | 15A | Right-hand dipped beam high intensity discharge (HID) light |
| F15 | 15A | Front fog light |
| F16 | 15A | Horns |
| F17 | 15A | Fuel injectors |
| F18 | 10A | Engine management ignition supply |
| F19 | 15A | Ignition coil on plugs supply |
| F19 | 10A | Not Used |
| F20 | 20A | Right-hand oxygen sensor heaters |
| F20 | 30A | Not Used |
| F21/D1 | 5A | Rain sense module |
| F22/D2 | - | Not Used |
| F23 | - | Not Used |
| F24 | - | Not Used |
| F25 | 40A | Right-hand windscreen heater |
| F26 | - | Not Used |
| F27 | 30A | Starter motor solenoid |
| F28 | 30A | ABS pump motor |
| F29 | - | Not Used |
| F30 | 40A | Left-hand windscreen heater |
| F31 | 50A | SAI relay |
| F32 | 10A | Air compressor clutch, auxiliary coolant pump |
| F33 | 10A | Engine control module and transmission control module battery supply |
| F34 | 15A | Left-hand dipped beam high intensity discharge (HID) light |
| F35 | 20A | Left-hand oxygen sensor heaters |
| F36 | 15A | Intercooler pump (supercharged model) |
| F37 | 10A | Air flow meter, purge valve, inlet manifold tuning valves (V6 only), EGR valve (V8 only), air filter solenoid (V8 S/C only), MAF sensors, VGT, canister close valve |
| F38 | 10A | Engine control module, ignition supply, cooling fan module, air conditioner clutch relay |
| D3 | - | Ignition relay |
| D4 | - | Not Used |
