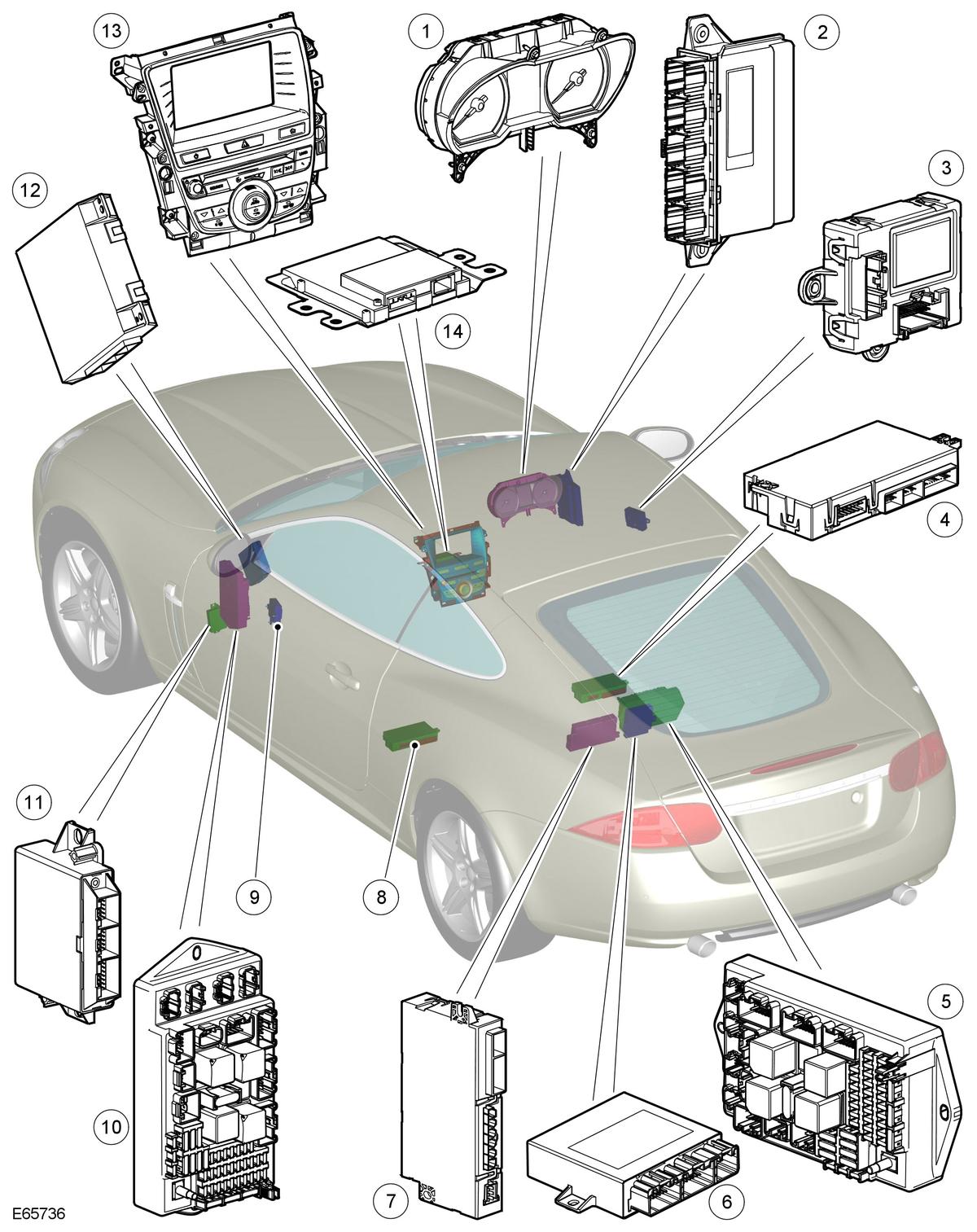

Component Location-Medium Speed Can
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Instrument cluster |
| 2 | Keyless vehicle module |
| 3 | Drivers door control module |
| 4 | Drivers seat module |
| 5 | Auxiliary junction box |
| 6 | Tire Pressure Monitoring System (TPMS) module |
| 7 | Convertible top control module (convertible vehicle only) |
| 8 | Passenger seat module |
| 9 | Passenger door control module |
| 10 | CJB |
| 11 | Parking aid control module |
| 12 | ATC control module |
| 13 | Integrated control panel |
| 14 | Information and entertainment control module |
