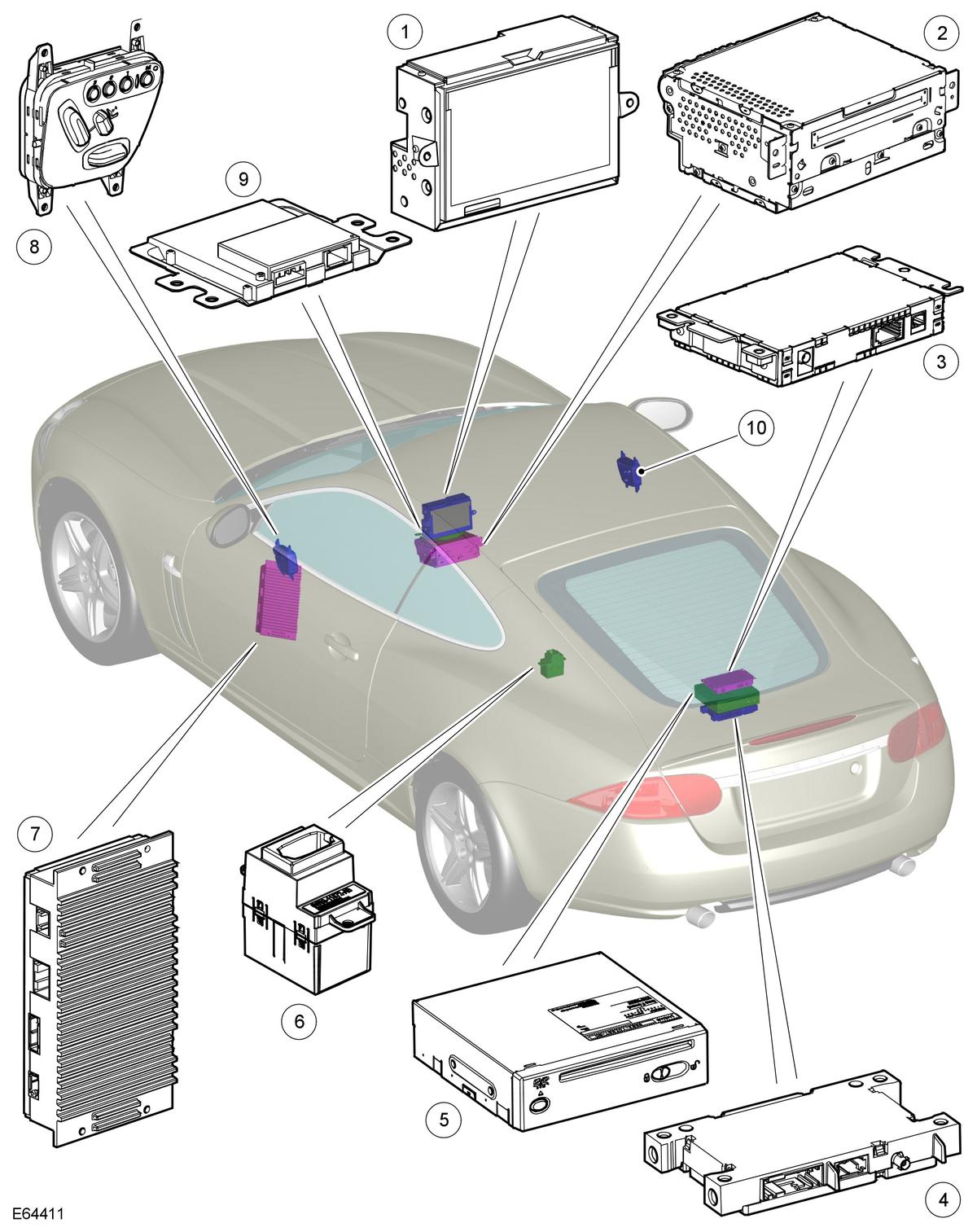

Component Location-Most/Lin
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Touch Screen Display (TSD) |
| 2 | Integrated audio module |
| 3 | Bluetooth© phone module |
| 4 | SDARS/DAB module (where fitted) |
| 5 | Navigation computer |
| 6 | Engine start control module |
| 7 | Audio amplifier |
| 8 | Passenger door module |
| 9 | Information and entertainment control module |
| 10 | Drivers door module |
