Rear Memory Module Connector End View
Rear Memory Module Connector End View

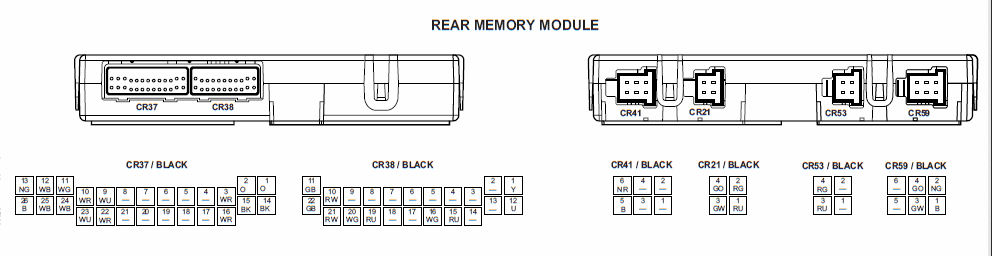

Fig 1: Rear Memory Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
