Connector End Views
›
Connector End Views
›
Engine Control Module Connector End View
Engine Control Module Connector End View

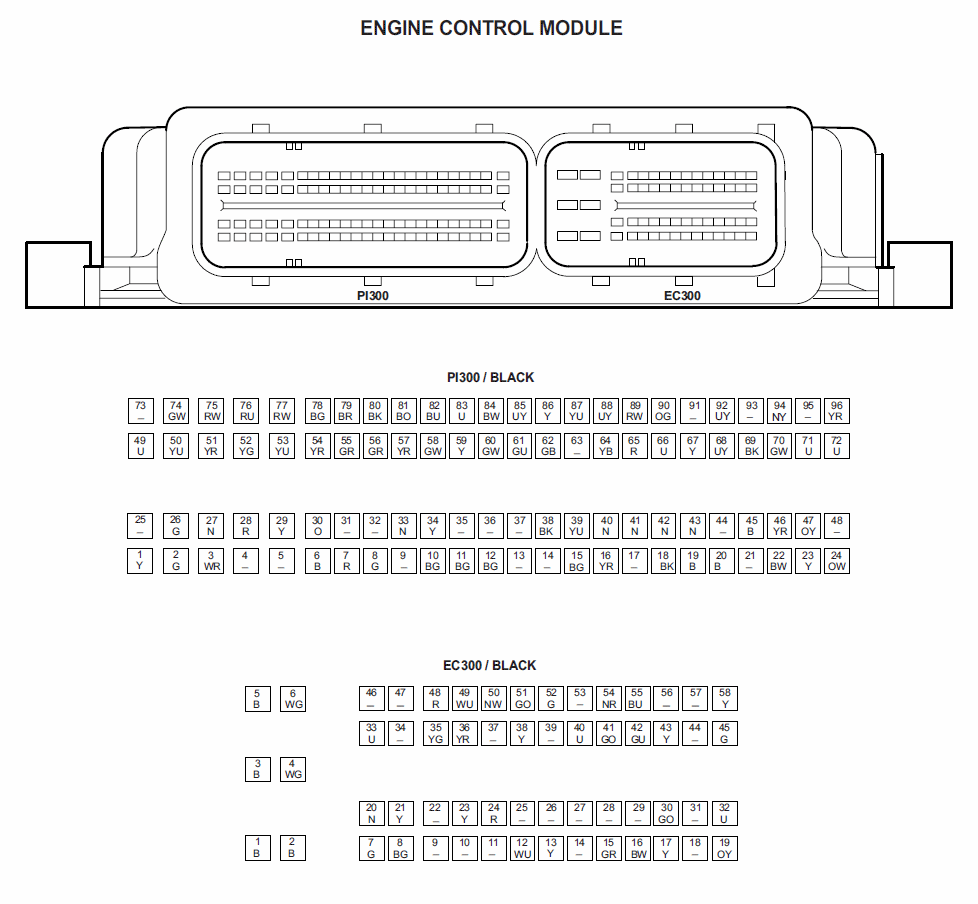

Fig 1: Engine Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
