Onboard Monitoring
›
4.1 Catalyst Monitoring
›
4.1.2 Monitoring Structure
4.1.2 Monitoring Structure
Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

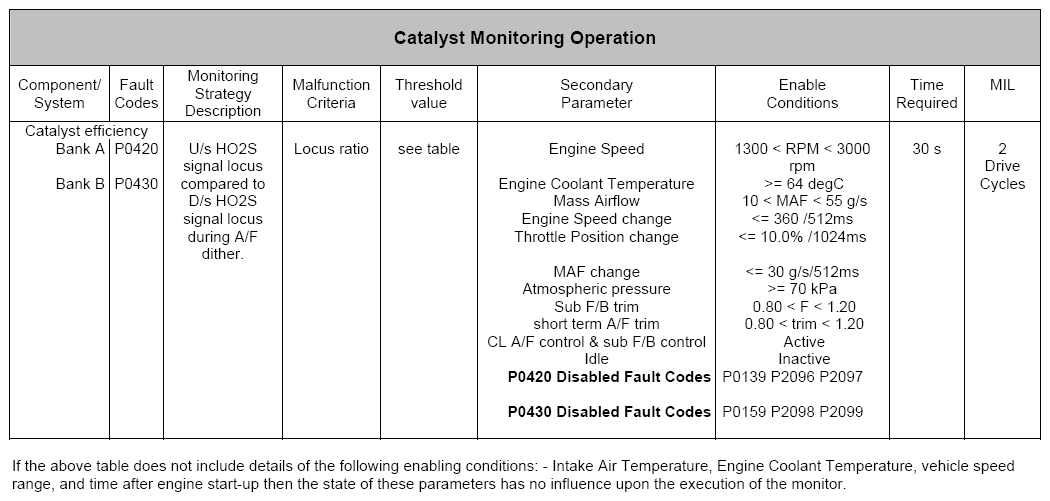

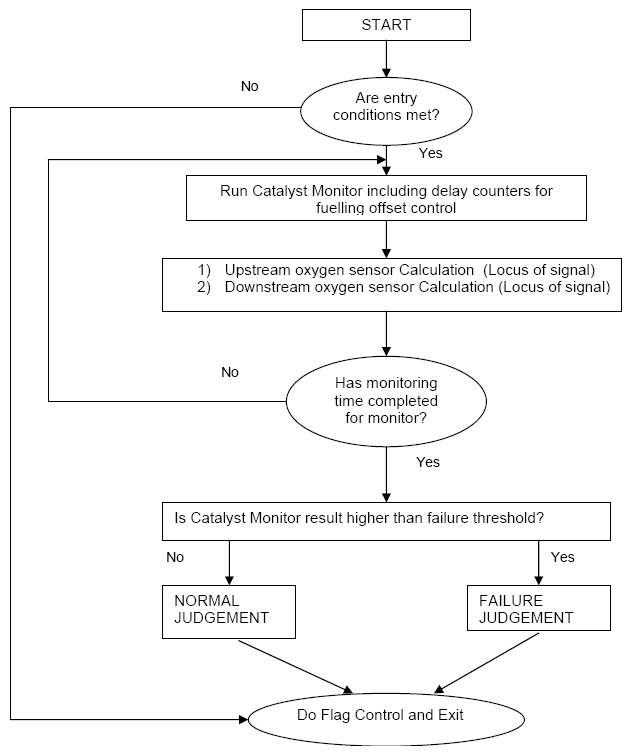

Fig 2: Catalyst Monitoring Operation (P0420, P0430)
Courtesy of JAGUAR CARS, INC.
Fig 3: Catalyst Monitor Fault Threshold - DTCs P0420 And P0430
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
