Electronic Parking Brake Module Connector End View
Electronic Parking Brake Module Connector End View

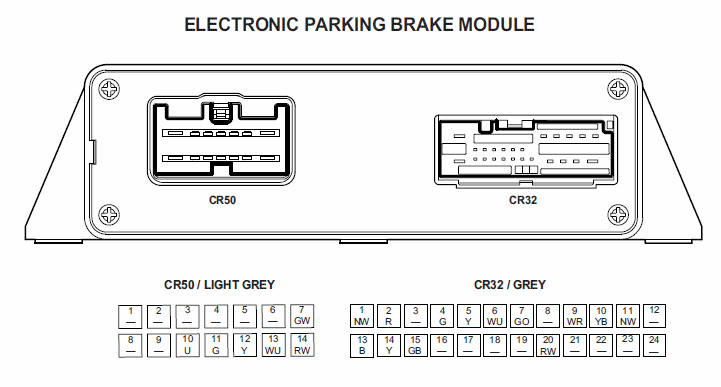

Fig 1: Electronic Parking Brake Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
