4.14 Mass Airflow Sensor
›
4.14.3 Monitoring Structure
4.14.3 Monitoring Structure
Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

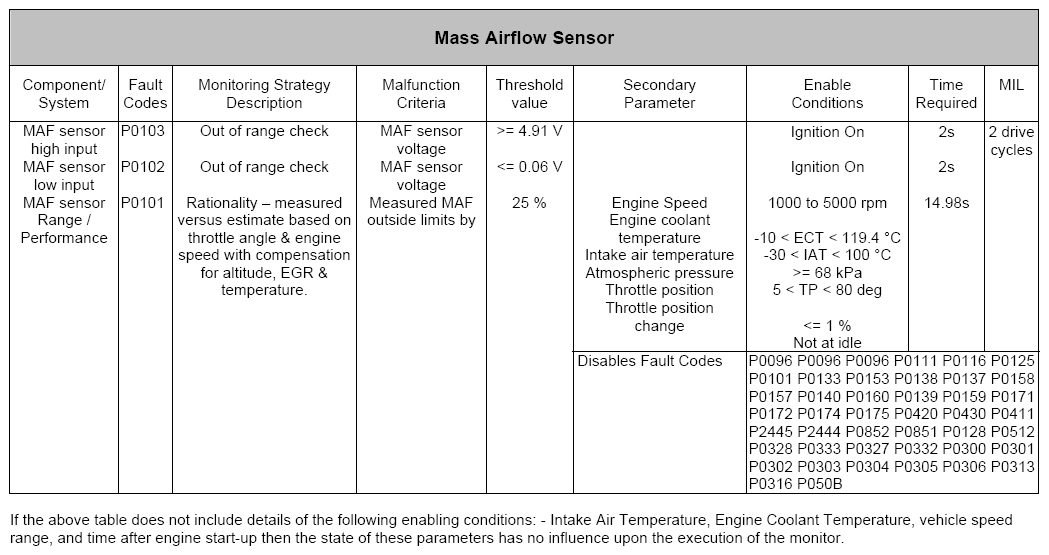

Fig 2: Mass Airflow Sensor (P0101, P0102, P0103)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
