4.14 Manifold Absolute Pressure Sensor
›
4.14.2 Monitoring Structure
4.14.2 Monitoring Structure

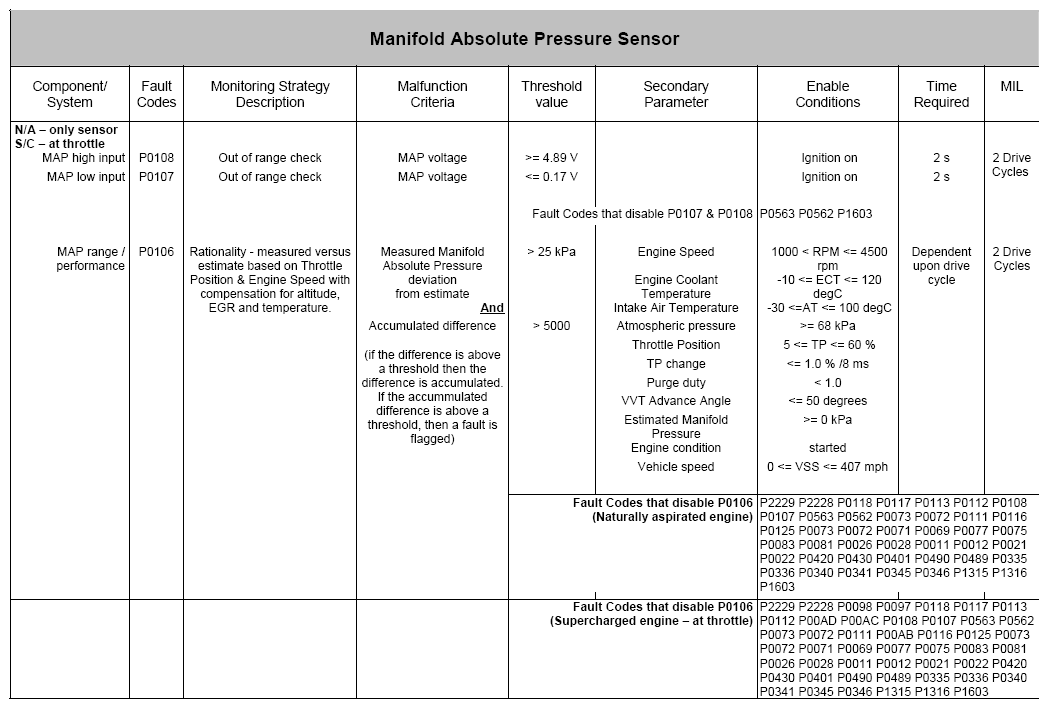

Fig 1: Manifold Absolute Pressure Sensor (P0106, P0107, P0108)
Courtesy of JAGUAR CARS, INC.

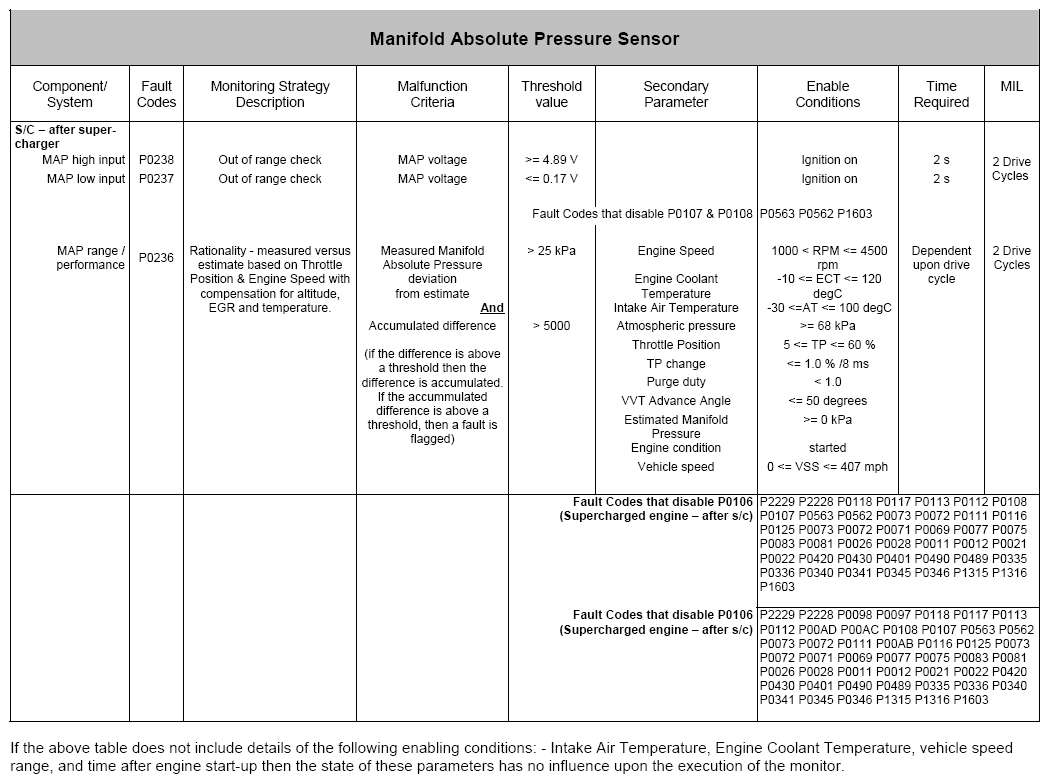

Fig 2: Manifold Absolute Pressure Sensor (P0236, P0237, P0238)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
