4.2.2 Misfire Monitor Process Hierarchy

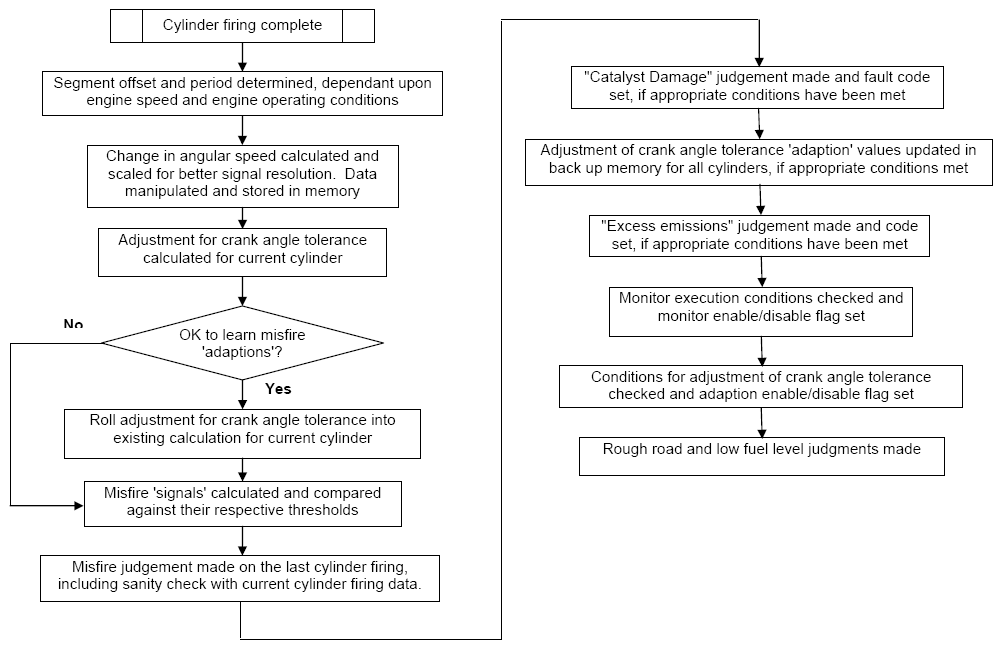

Fig 1: Misfire Monitor Process Hierarchy Flow Chart
G06421653Courtesy of JAGUAR CARS, INC.
