4.18 Intake Air Temperature Sensor
›
4.18.4 Monitoring Structure
4.18.4 Monitoring Structure

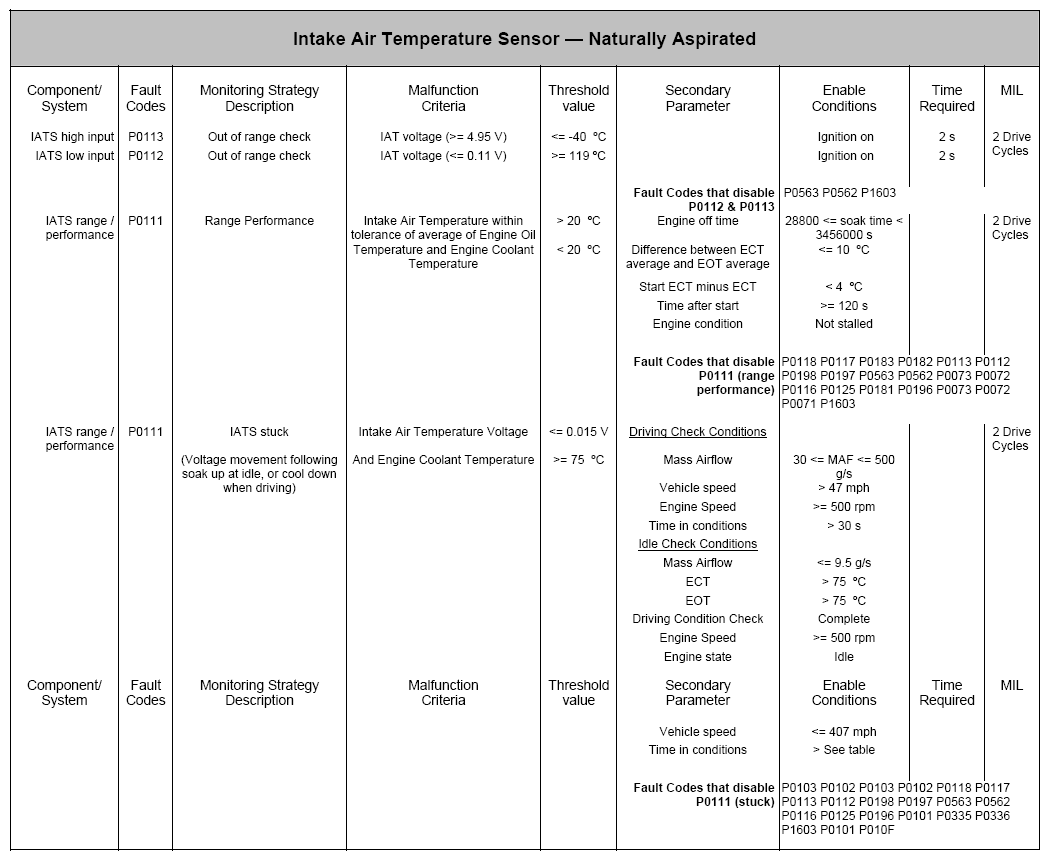

Fig 1: Intake Air Temperature Sensor - Naturally Aspirated (P0111, P0112, P0113)
Courtesy of JAGUAR CARS, INC.

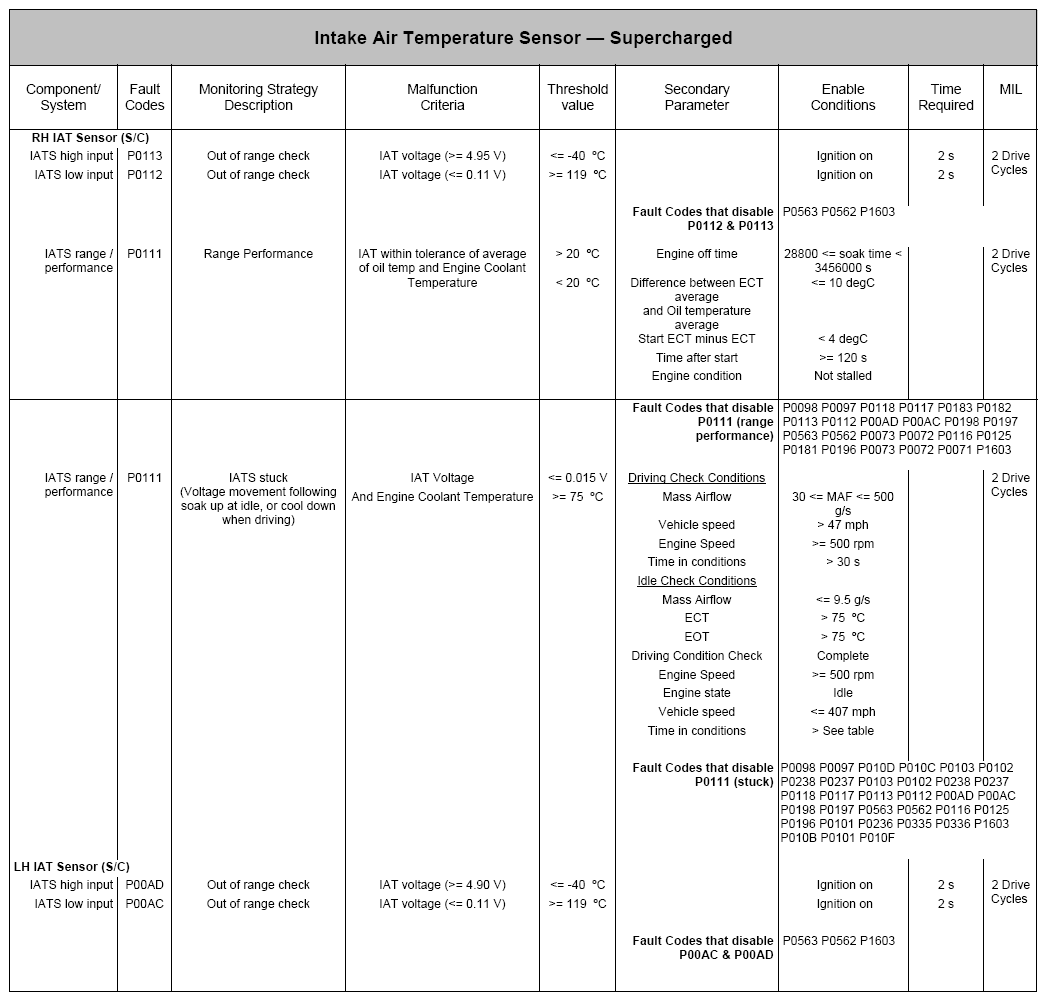

Fig 2: Intake Air Temperature Sensor - Supercharged (P00AC, P00AD, P0111, P0112, P0113) (1 Of 3)
Courtesy of JAGUAR CARS, INC.

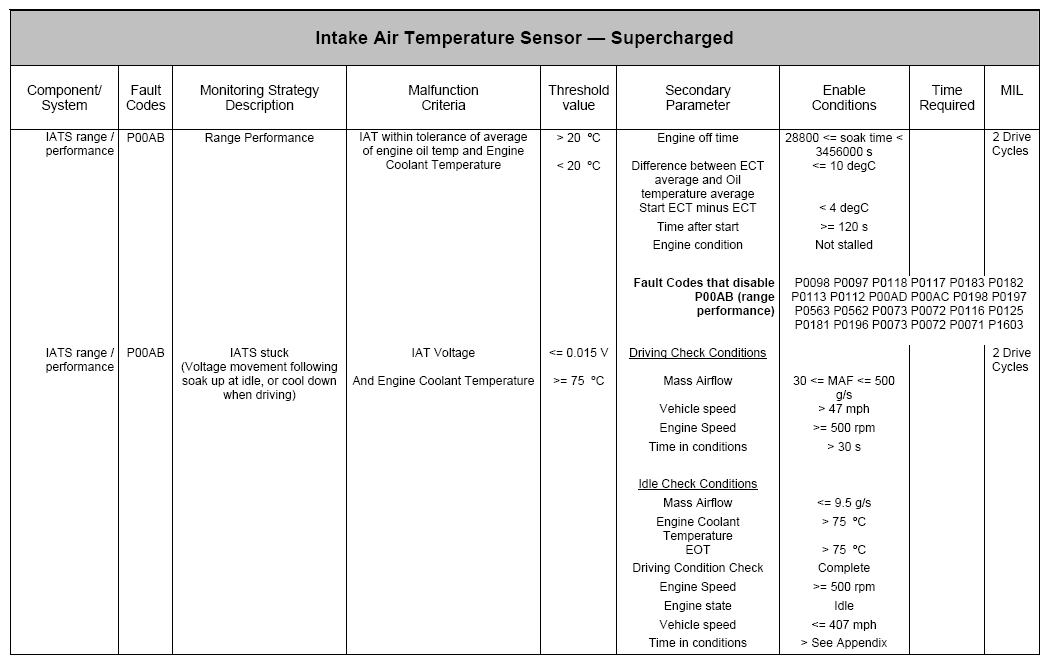

Fig 3: Intake Air Temperature Sensor - Supercharged (P00AB) (2 Of 3)
Courtesy of JAGUAR CARS, INC.

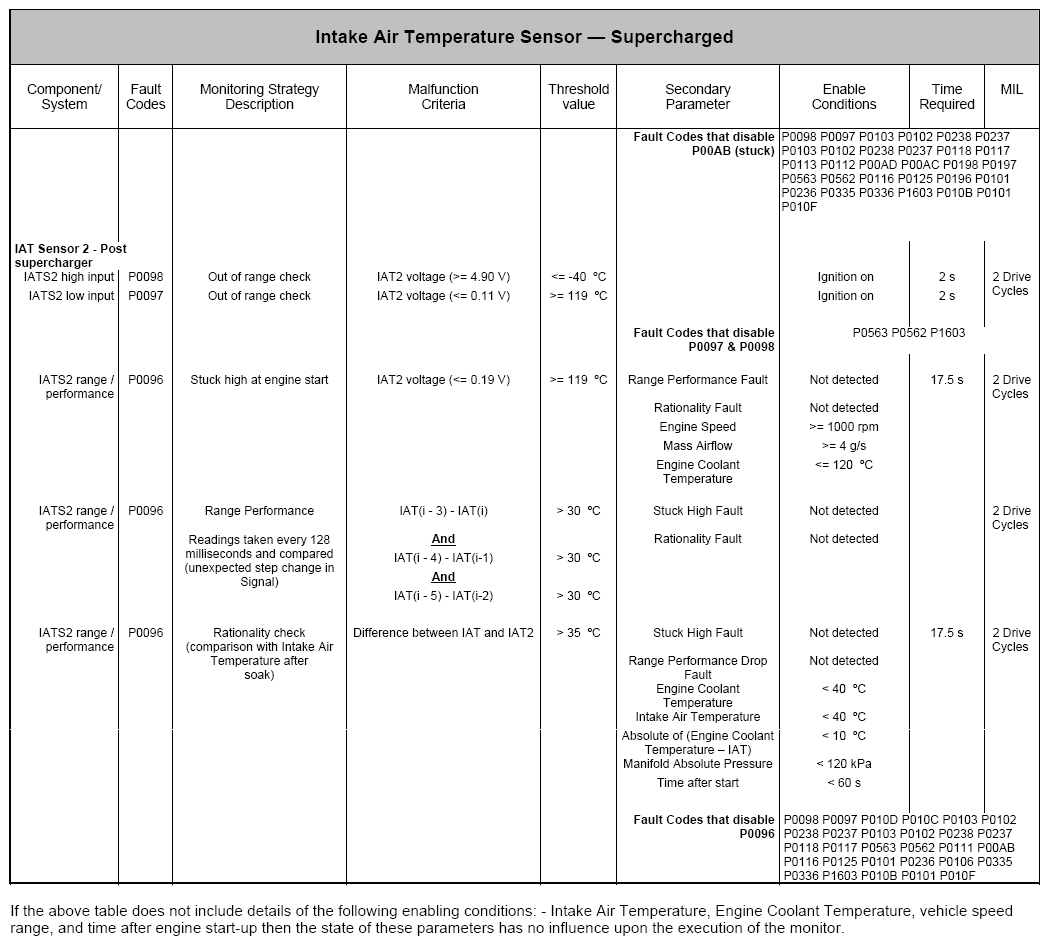

Fig 4: Intake Air Temperature Sensor - Supercharged (P0096, P0097, P0098) (3 Of 3)
Courtesy of JAGUAR CARS, INC.
Fig 5: Intake Air Temperature Sensor Performance Chart
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
