XF Supercharged
›
Repair and Diagnosis
›
Engine Performance
›
System
›
On Board Diagnostics
›
Introduction
›
2.1 Inputs and Outputs
2.1 Inputs and Outputs

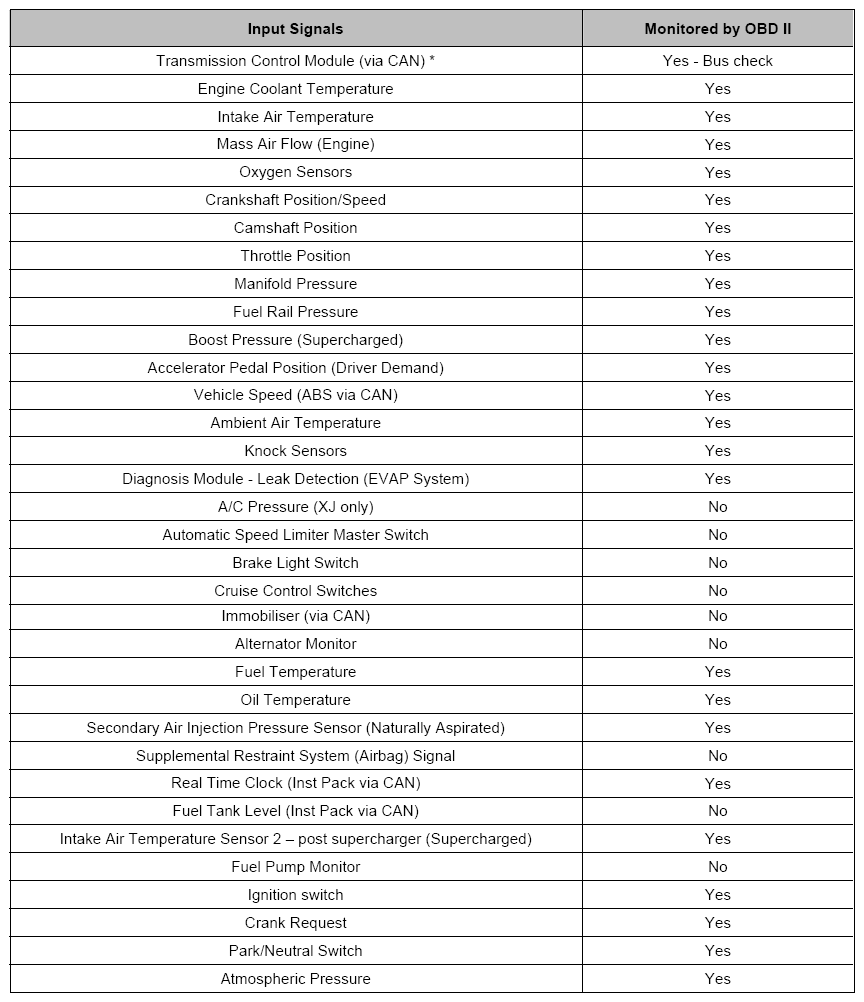

Fig 1: Input Signals Chart
Courtesy of JAGUAR CARS, INC.

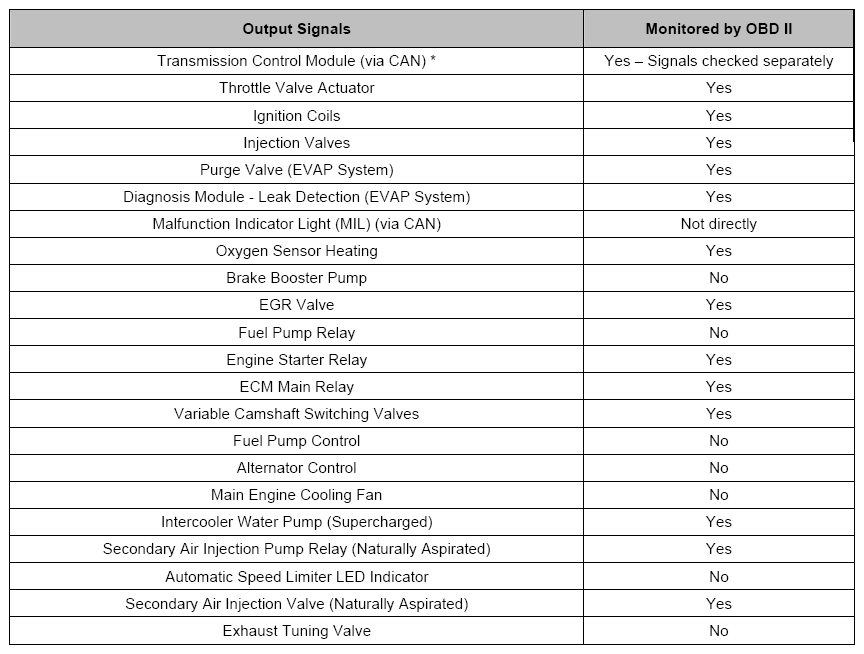

Fig 2: Output Signals Chart
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
