On Board Diagnostics
›
Onboard Monitoring
›
4.1 Catalyst Monitoring
›
4.1.2 Monitoring Structure
4.1.2 Monitoring Structure

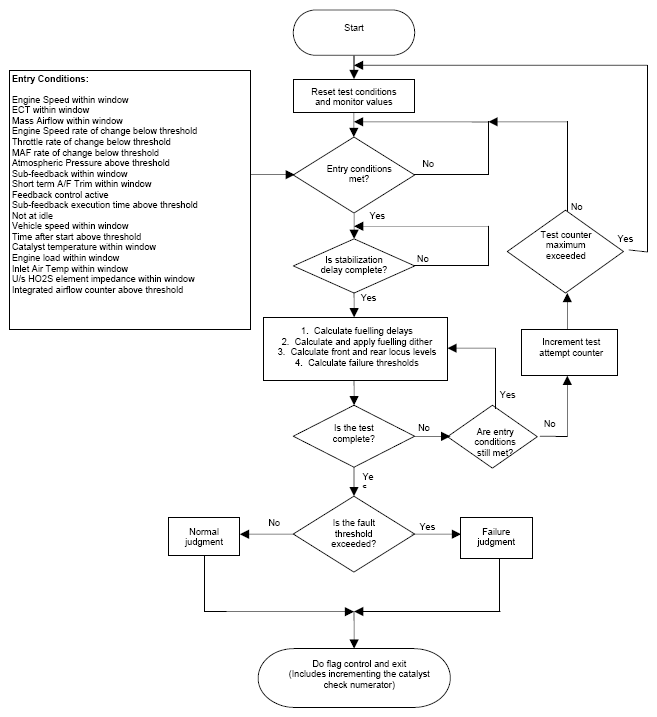

Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

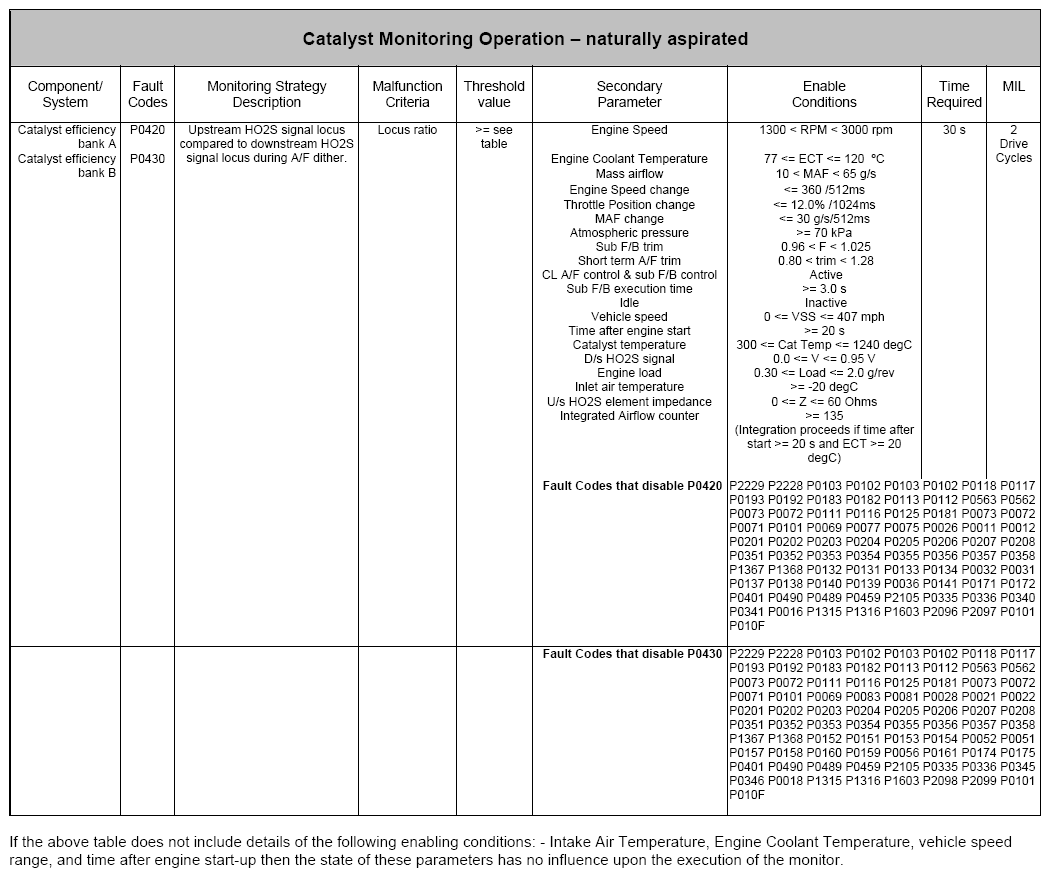

Fig 2: Catalyst Monitoring Operation - Naturally Aspirated (P0420, P0430)
Courtesy of JAGUAR CARS, INC.
Fig 3: Catalyst Monitoring Fault Chart
Courtesy of JAGUAR CARS, INC.

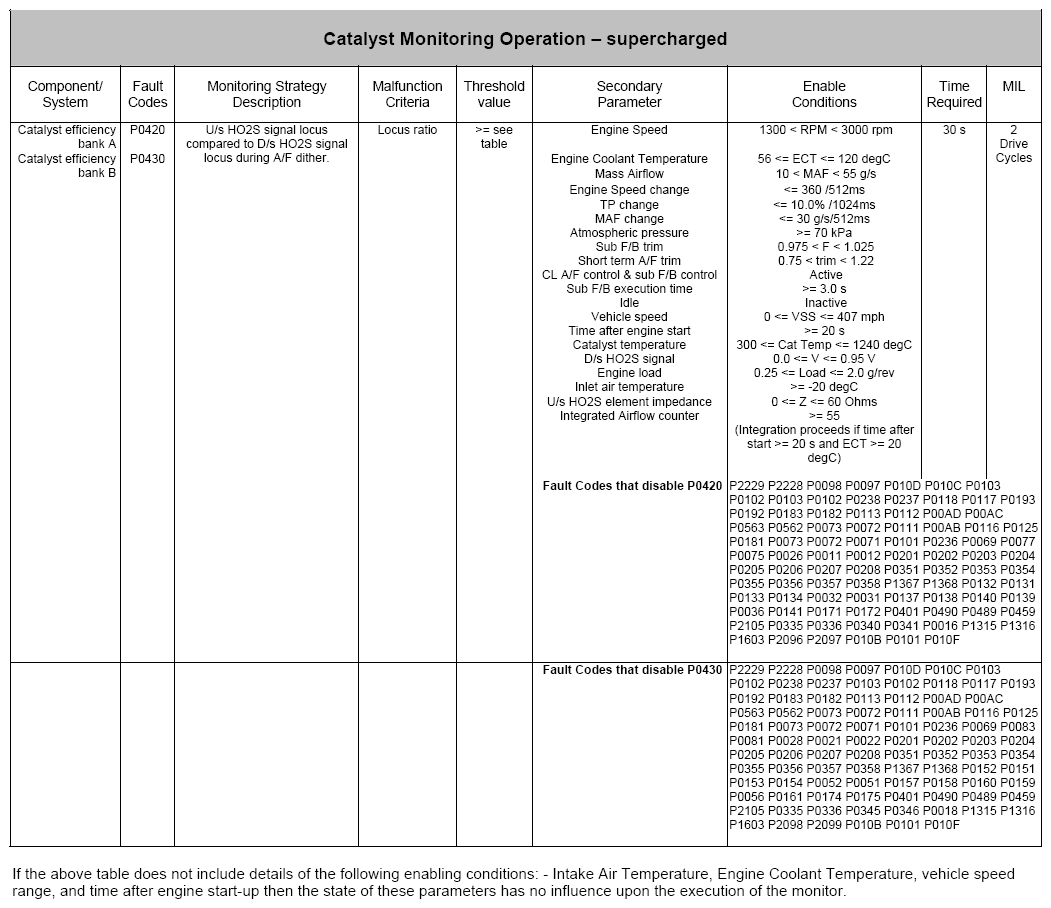

Fig 4: Catalyst Monitoring Operation - Supercharged (P0420, P0430)
Courtesy of JAGUAR CARS, INC.
Fig 5: Catalyst Monitoring Fault Chart
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
