4.14 Manifold Absolute Pressure Sensor
›
4.15.3 Monitoring Structure
4.15.3 Monitoring Structure

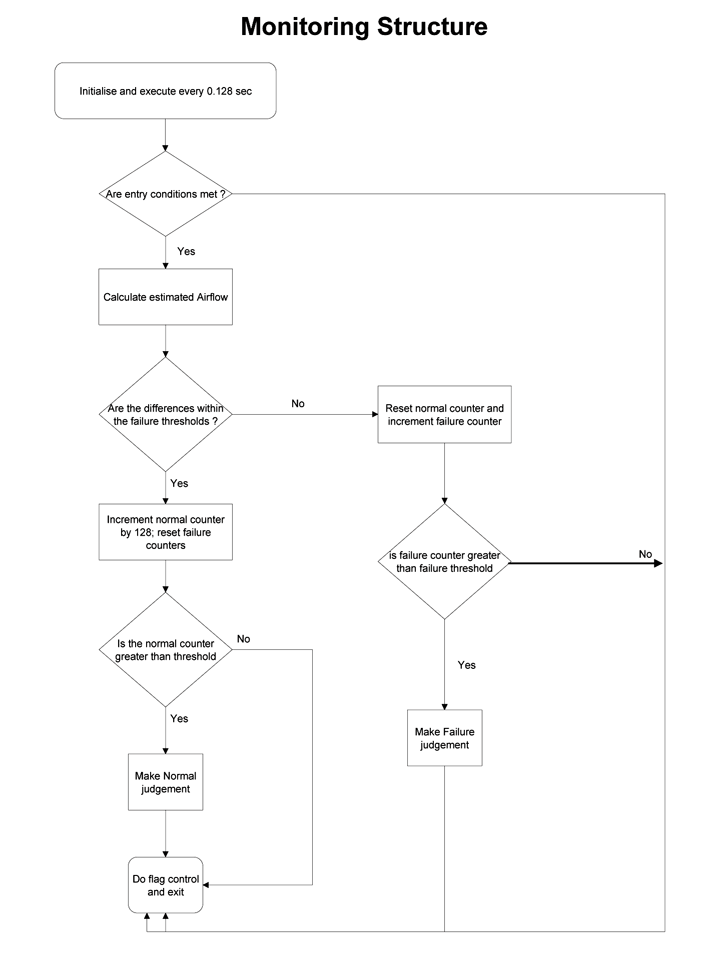

Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

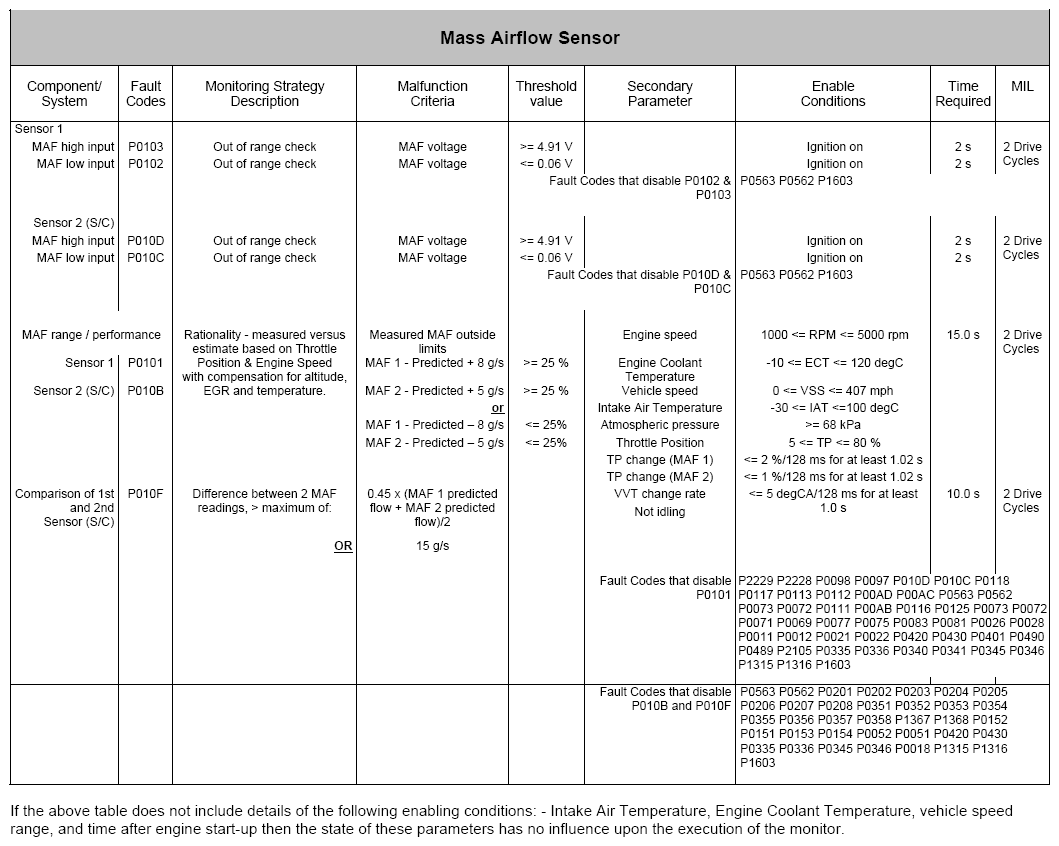

Fig 2: Mass Airflow Sensor (P010B, P010C, P010D, P010F, P0101, P0102, P0103)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
