4.33.1 Monitoring Structure

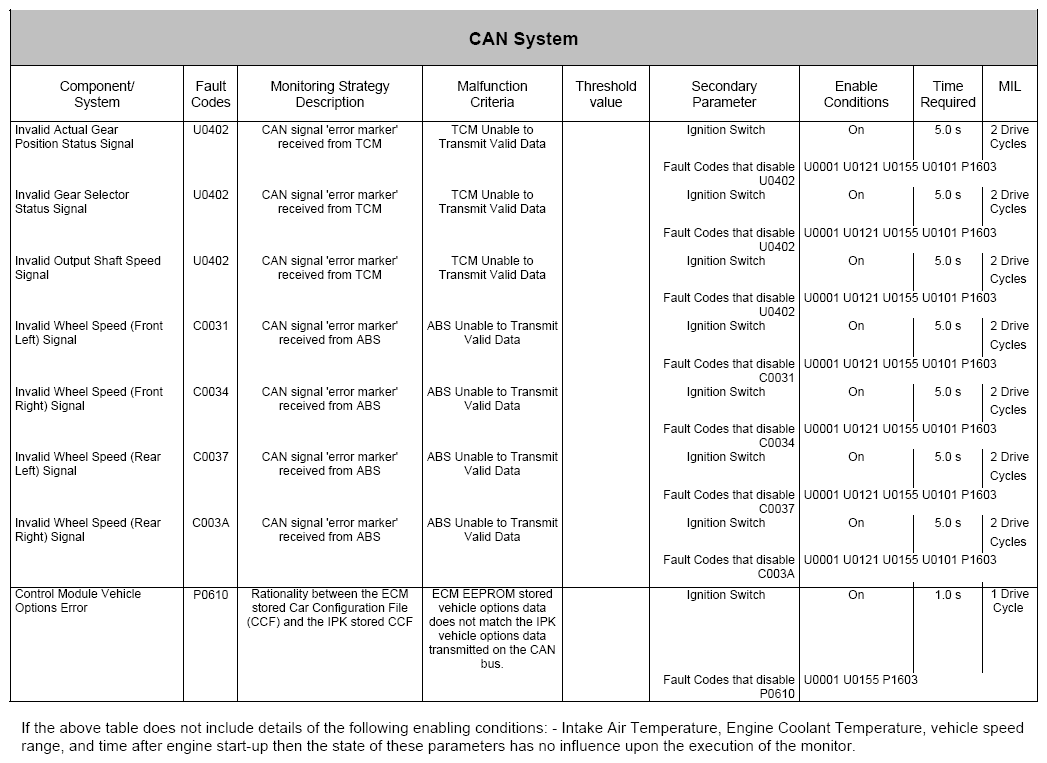

Fig 1: CAN System (C003A, C0031, C0037, P0610, U0402)
G06421741Courtesy of JAGUAR CARS, INC.
