Climate Control Module Connector End View
Climate Control Module Connector End View

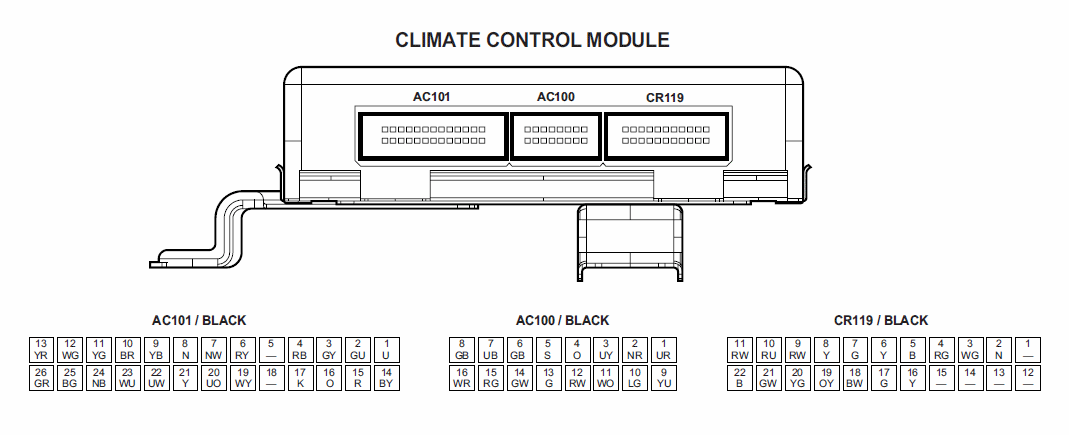

Fig 1: Climate Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
