Climate Controlled Seat Module Connector End View
Climate Controlled Seat Module Connector End View

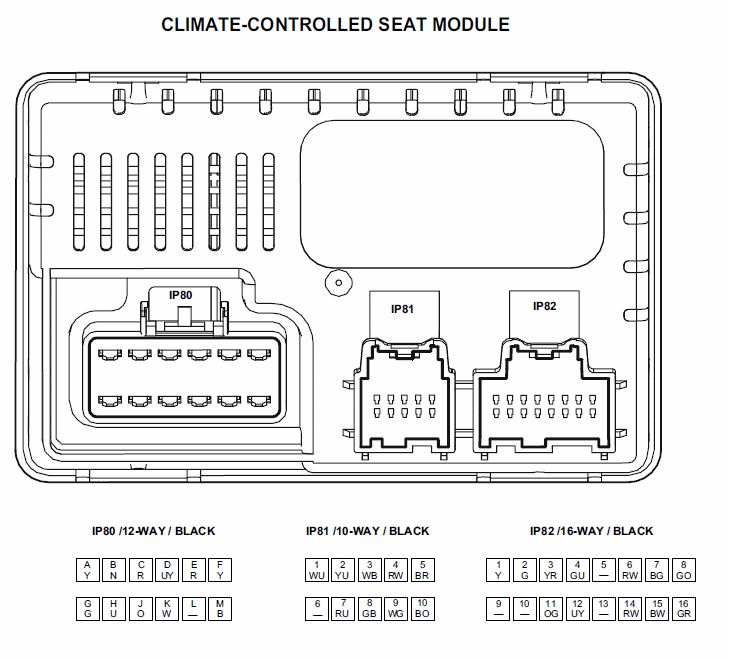

Fig 1: Climate Controlled Seat Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
