On Board Diagnostics - 4.2L V8
›
4 Onboard Monitoring
›
4.1 Catalyst Monitoring
›
4.1.2 Monitoring Structure
4.1.2 Monitoring Structure

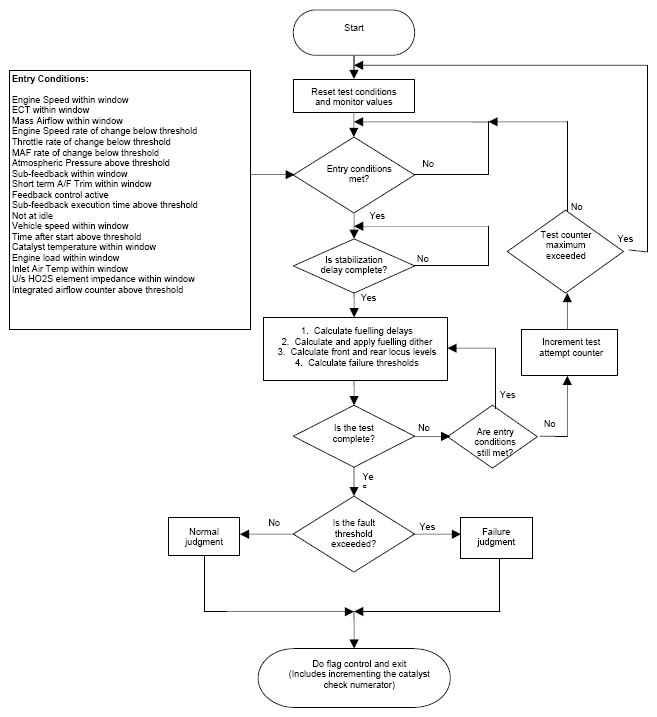

Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

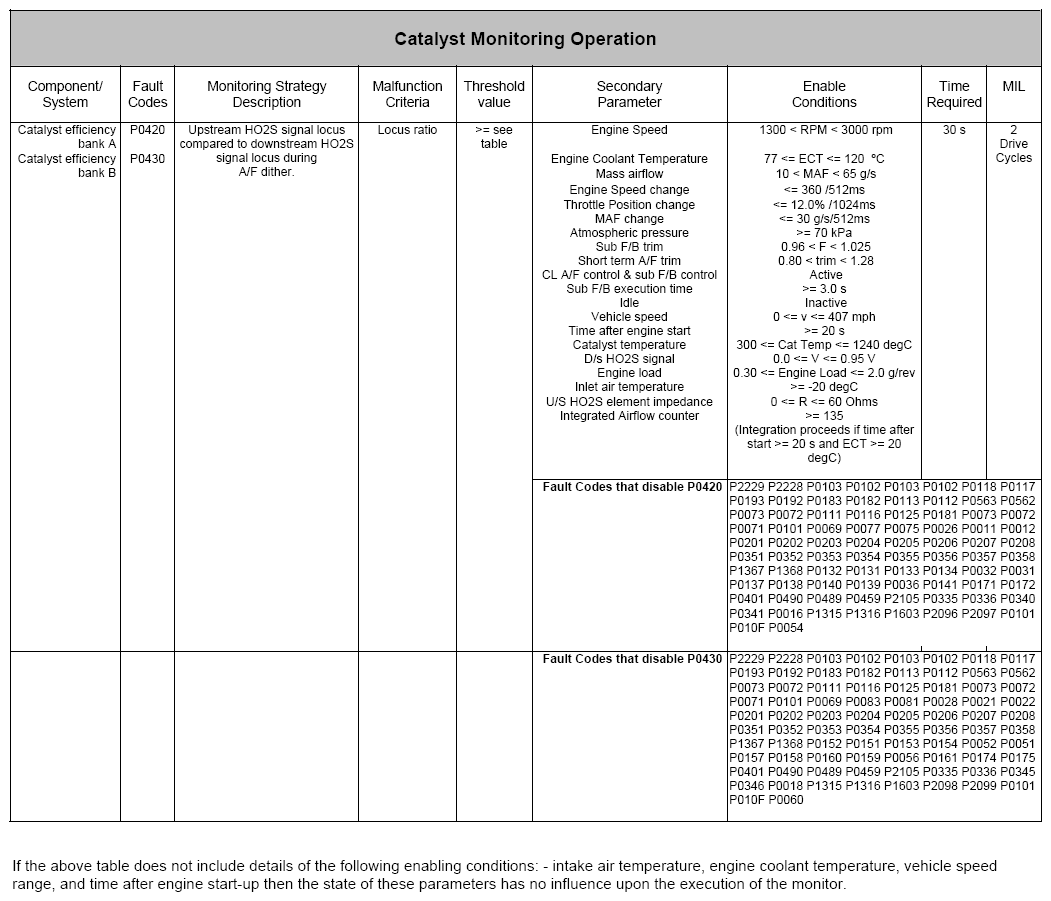

Fig 2: Catalyst Monitoring Operation (Diagnostic Trouble Code P0420, P0430)
Courtesy of JAGUAR CARS, INC.
Fig 3: Catalyst Monitor Fault Chart
Courtesy of JAGUAR CARS, INC.
