4.15.2 Monitoring Structure

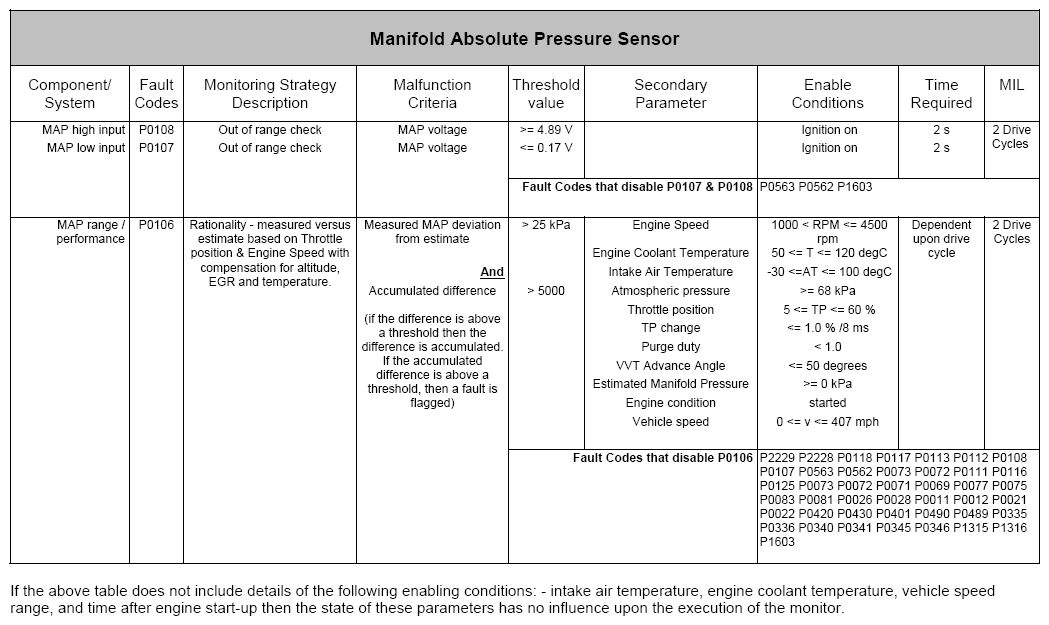

Fig 1: Manifold Absolute Pressure Sensor (Diagnostic Trouble Codes P0106, P0107, P0108)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
